XLG-75-H
25.27
Details

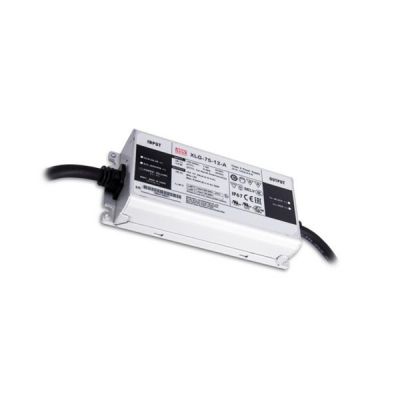

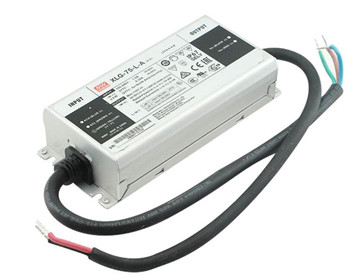

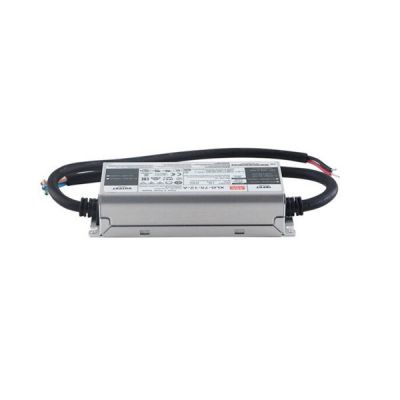

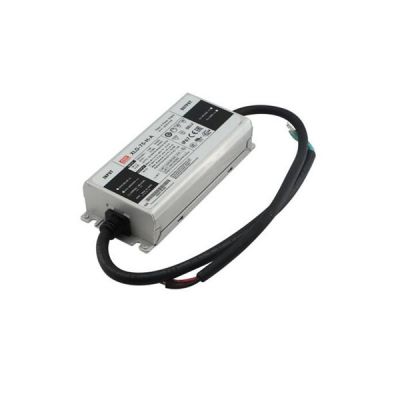

Meanwell XLG-75-H is 75W LED AC/DC driver with 700mA74.9W53-107V700-1050mA115V350-1050mA3.0% (@rated current) ±5.0%. It outstands with constant power mode, and operates from 100~305VAC with rated current ranging between 700mA and 5000mA. Since the efficiency reaches high up to 90% fanless, XLG-75-H is able to work for-40℃ ~+90℃ case temperature under free air convection. Furthermore, the metal housing design and IP67 ingress protection level permit the item to fit both indoor and outdoor applications. The innovative environment-adaptive capability allows to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires globally. Moreover, XLG-75-H complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. In view of its longevity, high efficiency and excellent reliability, Meanwell XLG-75-H is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-75-H Encoding
| XLG | Series Name |
| 75 | Rated Wattage |
| I | I: for India version ( by request with input over voltage protction) |
| □: For standard version | |
| L | Rated output voltage ( 12/24V or L/H types) |
| □ | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) |
| A | lo adjustable via built-in potentiometer |
| AB | lo adjustable via built-in potentiometer + 3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance) |
Meanwell XLG-75-H Specifications
| Model | XLG-75□-H-□ | |
| OUTPUT | RATED CURRENT (Default) | 1400mA |
| RATED POWER | 75.6W | |
| CONSTANT CURRENT REGION | 27-56V | |
| FULL POWER CURRENT RANGE | 1300-2100mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 60V | |
| CURRENT ADJ. RANGE | 650-2100mA | |
| CURRENT RIPPLE | 3.0% (@rated current) | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/230VAC, 1200ms/115VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load | |
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1A / 115VAC 0.45A / 230VAC 0.38A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version) | |
| PROTECTION | OVER POWER | 110 ~ 150% |
| Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | |
| INPUT OVER VOLTAGE | 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed | |
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 GB19510.1,GB19510.14; EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13) (for XLG-75I type only); NOM-058-SCFI-2017(except for Blank type);IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 3404.7K hrs min. Telcordia SR-332 (Bellcore) ; 276.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 140*63*32mm (L*W*H) | |
| PACKING | 0.58Kg;24pcs /15Kg /0.85CUFT | |
Meanwell XLG-75-H Features
l Wide input range 100~305V AC (Class I)
l Protection functions: OVP/SCP/OCP/OTP
l Life time >50,000 hrs. and 5 years warranty
l Full power output at 70~ 100% Constant power mode operation
l Metal case with IP67, suitable for outdoor application
l Class 2 power unit (except for L type)
l Surge protection with 6KV/4KV
l 3 in 1 dimming function (Dim to off and Isolation design)
l India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Meanwell XLG-75-H Applications
l Skyscraper lighting
l Street lighting
l Floodlight Lighting
l Stage lighting
l Fishing lighting
l Horticulture lighting
l Bay lighting
l DMX power supply
l Type HL for use in class I , Division 2
Meanwell XLG-75-H Mechanical Diagram
