XLG-50
23
Details

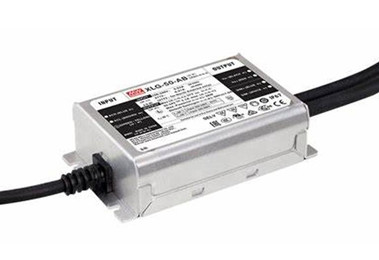

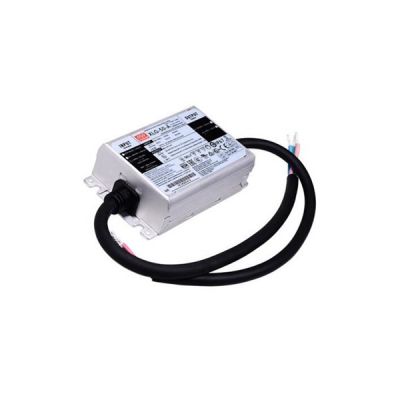

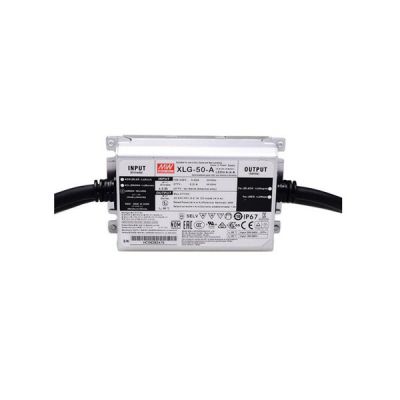

Meanwell XLG-50 Series is 50W AC/DC LED driver highlighting constant power mode output. The entire series could operate from 90~305VAC. Since the efficiency reaches high up to 90%, XLG-50 is able to work between -40℃ ~ 90℃ wide case temperature range with air convection. Additionally, the metal housing design and Ip67 ingress protection level allow the product to fit both indoor and outdoor applications. it is also supplied with various function options such as dimming methodologies. And XLG-50 complies with the latest version of IEC61347/GB7000.1-2015 and UL 8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. Considering its longevity, high efficiency and excellent reliability, Meanwell XLG-50 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-50 Series Encoding
| XLG | Series Name |
| 50 | Rated Wattage |
| I | I: for India version ( by request with input over voltage protction) |
| □: For standard version | |
| A | Function mode option |
| A | IP67 lo adjustable through built in potentiometer. |
| AB | IP67 lo adjustable through built in potentiometer 3 in 1 dimming function (O~10Vdc, 10V PWM signal and resistance) |
Meanwell XLG-50 Series Model Specifications
| Model | XLG-50-□-□ | |||
| OUTPUT | RATED CURRENT (Default) | 1A | ||

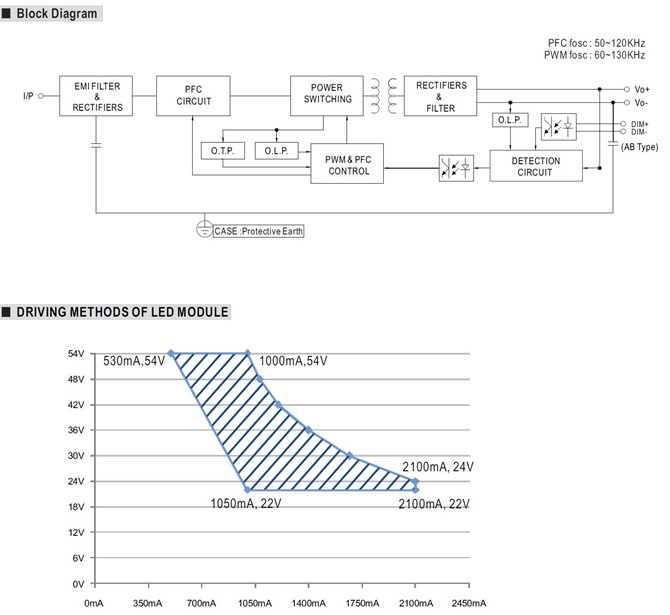

| CONSTANT CURRENT REGION | 22-54V | |||
| RATED POWER | 100VAC ~ 305VAC | |||
| 50W | ||||
| OPEN CIRCUIT VOLTAGE (max.) | 57V | |||
| CURRENT ADJ. RANGE | 0.53 ~ 2.1A | |||
| SETUP, RISE TIME | 500ms, 100ms/115VAC, 230VAC | |||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
|||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|||
| EFFICIENCY (Typ.) | 90.00% | |||
| AC CURRENT | 0.57A / 115VAC 0.29A / 230VAC 0.24A/277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| NO LOAD POWER CONSUMPTION | No load power consumption <0.5W for A, <0.75W for I series Standby power consumption <0.5W for AB-Type(Dimming OFF) |
|||
| PROTECTION | OVER POWER | 110-150% Over Power Protection, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER TEMPERATURE | Hiccup mode, recovers automatically after fault condition is removed | |||
| INPUT OVER VOLTAGE | 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed | |||
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP | Tcase=+90℃ | |||
| WORKING HUMIDITY | 20 ~ 95% | |||
| STORAGE TEMP. | -40 ~ +80℃ | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1, GB19510.14, EAC TP TC 004,J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)( for XLG-50I type only); NOM-058-SCFI-2017 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55015(CISPR15) ,GB/T17743,J55015(H29) | ----- | ||
| Radiated | BS EN/EN55015(CISPR15) ,GB/T17743,J55015(H29) | ----- | ||
| Harmonic Current | BS EN/EN61000-3-2 ,GB/T17625.1 | Class C @load>=50% | ||
| Voltage Flicker | BS EN/EN61000-3-3 | …... | ||
| EMC IMMUNITY | BS EN/EN61547 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | 2KV/Line-Line 4KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 3931.6 K hrs min. Telcordia SR-332 (Bellcore) 394.6Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 105*63*30mm (L*W*H) | |||
| PACKING | 0.41Kg;24pcs/ 10.5Kg/0.68CUFT for A-type 0.42Kg;24pcs/ 11Kg/0.68CUFT for AB-type | |||
Meanwell XLG-50 Series Features
l Constant Power mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l Class 2 power unit
l No load / Standby power consumption <0.5W
l IP67 rating for indoor or outdoor installations

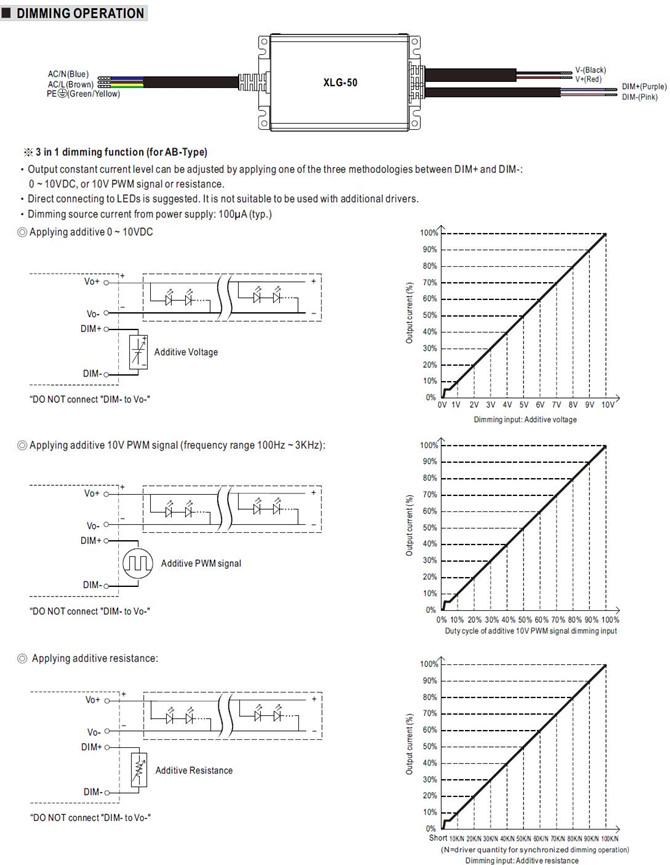

l Function options: output adjustable via potentiometer 3 in 1 dimming function (Dim to off and Isolation design)
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell XLG-50 Series Applications
l LED street lighting
l LED architectural lighting
l LED bay lighting
l LED floodlighting
l Type "HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell XLG-50 Series Mechanical Diagram
