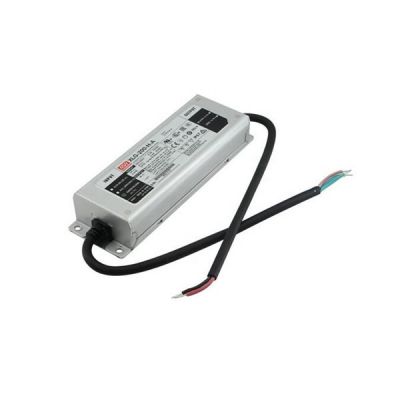

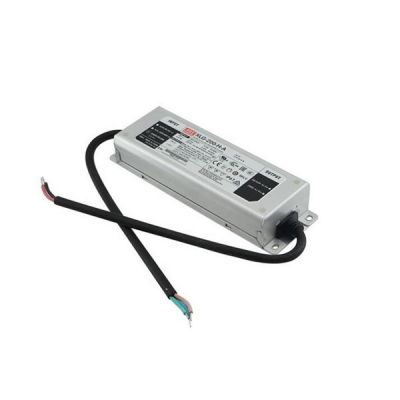

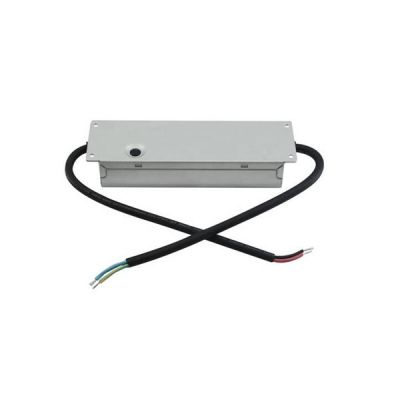

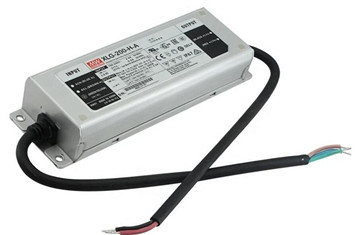

XLG-200-H
23.86
Details
Meanwell XLG-200-H is 200W LED AC/DC driver with 3500mA200W27-56V3500-5500mA60V1750-5550mA3.0%(@ Load>=50% rated voltage)±5.0%. The unit stands out with constant power mode from 100~305VAC with different rated current ranging between 700mA and 16A. Since the efficiency reaches high up to 94% under fanless design, XLG-200-H is able to work for -40℃ ~+90℃ case temperature through free air convection. In addition, the metal housing design and IP67 ingress protection level permit to satisfy both indoor and outdoor applications. The innovative environment- adaptive capability allows to reliably light on the L EDs for all kinds of application environments in almost any spots that may install LED luminaires globally. What’s more, XLG-200-H complies with the latest version of IEC61347 /GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. In view of its longevity, high efficiency and excellent reliability, Meanwell XLG-200-H Is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-200-H Encoding
| XLG | Series Name |
| 200 | Rated Wattage |
| I | I: for India version ( by request with input over voltage protction) |
| □: For standard version | |
| L | Rated output voltage ( 12/24V or L/H types) |
| □ | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) |
| A | lo adjustable via built-in potentiometer |
| AB | lo adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
| 1.12V and 24V models without AB type 2.India version needs MOQ for production, please consult MEANWELL for detail |
|
Meanwell XLG-200-H Specifications
| Model | XLG-200□-H-□ | |
| OUTPUT | RATED CURRENT (Default) | 3500mA |
| RATED POWER | 200W | |
| CONSTANT CURRENT REGION | 27-56V | |
| FULL POWER CURRENT RANGE | 3500-5500mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 60V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer | |
| 1750-5550mA | ||
| CURRENT RIPPLE | 3.0%(@ Load>=50% rated voltage) | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 5 0 0ms/230VAC, 1200ms/115VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ) | PF>=0.97 / 115VAC, PF>=0.95 / 230VAC, PF>=0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section) |
|
| TOTAL HARMONIC DISTORTION | THD< 10% (@ load>=50% at 115VAC/230VAC ,@load>=75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section |
|
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT | 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 unit(circuit breaker of type B) / 6 units(circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version) | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed |
| OVER VOLTAGE | 61-85V | |
| Shut down output voltage, re-power on to recovery | ||
| INPUT OVER VOLTAGE | 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) | |
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;GB19510.1, GB19510.14;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load>=50%); BS EN/EN61000-3-3 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,1 1, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV , Line-Line 4KV) (10K/6KV option) |
|
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 2300.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.7Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*63*35.5mm (L*W*H) | |
| PACKING | 0.85Kg;16pcs/14.2Kg/0.72CUFT | |
Meanwell XLG-200-H Features
l Wide input range 100~305V AC (Class l)
l Protection functions: OVP/SCP/OCP/OTP
l Life time >50,000 hrs. and 5 years warranty
l Metal case with IP67, suitable for outdoor application
l Surge protection with 6KV/4KV (10KV/6KV optional)
l 3 in 1 dimming function (Dim to off and Isolation design)
l Full power output at 70~100% Constant power mode operation
l India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Meanwell XLG-200-H Applications
l Skyscraper lighting
l Street lighting
l Floodlight Lighting
l Stage lighting
l Fishing lighting
l Horticulture lighting
l Bay lighting
l DMX power supply
l Type HL for use in class l, Division 2
Meanwell XLG-200-H Mechanical Diagram
