XLG-20-M
13.58
Details

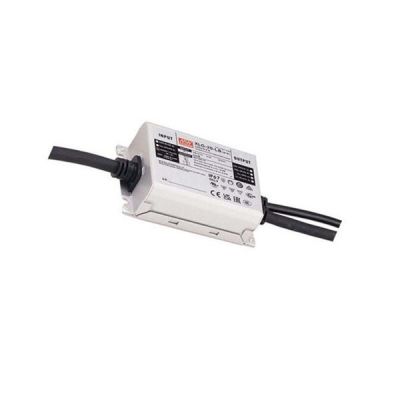

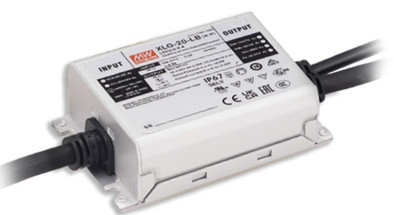

Meanwell XLG-20-M is AC/DC LED driver with 500mA25.2-42V21W50V±8.0%<20%500ms 150ms/115VAC 230VAC. The unit highlights constant current mode output, and able to work from 90~305VAC between -40℃ ~+80℃ wide case temperature range with air convection. At the same time, the efficiency reaches up to 89%, and the metal housing design and IP67 ingress protection level allow XLG-20-M to meet both indoor and outdoor applications. In addition, the model is equipped with various function options such as dimming methodologies, and complies with the latest version of IEC61347/GB7000.1-2015 and UL 8750 international safety regulations. Apart from them, the output and dimming circuit are completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. Thanks to its longevity, high efficiency and excellent reliability, Meanwell XLG-20-M is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-20-M Encoding
| XLG | Series Name |
| 20 | Rated Wattage |
| □ | Rated output voltage ( L/M/H type) |
| □ | Function mode option |
| Blank | Non dimming |
| B | IP67 Io fixed |
| B | IP67 Io fix with 3 in 1 dimming function ( 1-10D dc, 10V PWM signal and resistance |
Meanwell XLG-20-M Specifications
| Model | XLG-20-M-□ | |
| OUTPUT | RATED CURRENT (Default) | 500mA |
| CONSTANT CURRENT REGION | 252.-42V | |
| RATED POWER | 21W | |
| OPEN CIRCUIT VOLTAGE (max.) | 50V | |
| CURRENT TOLERANCE | ±8.0% | |
| OUTPUT CURRENT RIPPLE | <20% | |
| SETUP, RISE TIME | 500ms, 150ms/115VAC, 230VAC | |
| LINE REGULATION | <±3.0% | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC (Please refer to "STATIC CHARACTERISTIC" section |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.91/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
|
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=50%/115VC,230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 0.3A / 115VAC 0.2A / 230VAC 0.2A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 5A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 42 units (circuit breaker of type B) / 42 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| NO LOAD POWER CONSUMPTION | No load power consumption <0.5W | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP. | -40 ~ +80℃ | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13 independent, BS EN/EN62384; IP67; GB19510.1, GB19510.14, J61347-1(H29), J61347-2-13(H29), EAC TP TC 004, IS 15885(Part 2/Sec13) , KC61347-1,KC61347-2-13 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 5721.2K hrs min. Telcordia SR-332 (Bellcore) 747.1Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 95*63*30mm (L*W*H) | |
| PACKING | 0.34Kg;24pcs/ 8.67Kg/0.81CUFT for blank-type 0.35Kg;24pcs/ 8.88Kg/0.\81CUFT for B-type | |
Meanwell XLG-20-M Features
l 5 years warranty
l Class 2 power unit
l Life time>50,000 hours
l Constant Current mode output
l Wide input range 90~305VAC (Class I)
l Built-in active PFC function
l No load power consumption <0.5 W
l IP67 rating for indoor or outdoor installations
l 3 in 1 dimming function (Isolation design)
Meanwell XLG-20-M Applications
l Street lighting
l Architectural lighting
l Low bay lighting
l Floodlight lighting
l Industrial Lighting
l Type “HL" for use in Class l, Division 2 hazardous (Classified) location
Meanwell XLG-20-M Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
