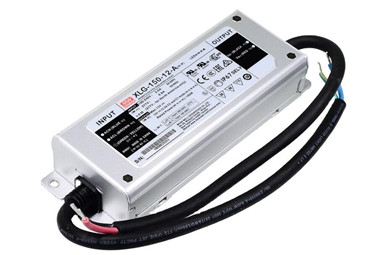

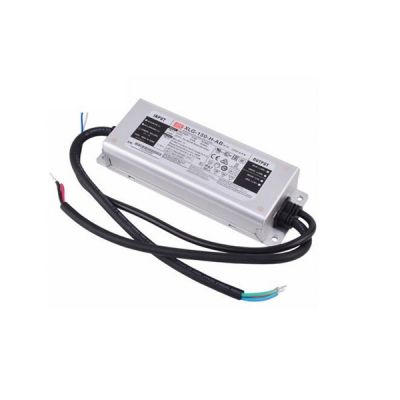

XLG-150-12
21.68
Details
Meanwell XLG-150-12 is 150W LED AC/DC driver with 12V8.4-12V12.5A150W150mVP-P6.5-12.5A±3.0%±0.5%±2.0%. The product features the constant power mode, and it works from 100~305VAC with different rated current ranging between 700mA and 12500mA. As the efficiency reaches high up to 93% with no fan design, XLG-150-12 is able to operate for -40℃ ~+90℃ case temperature under free air convection. Additionally, the metal housing design and IP67 ingress protection level permit the unit to fit both indoor and outdoor applications. The innovative environment-adaptive capability allows to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. What’s more, XLG-150-12 complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. Due to its long lifetime, high efficiency and excellent reliability, Meanwell XLG-150-12 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-150-12 Encoding
| XLG | Series Name |
| 150 | Rated Wattage |
| I | I: for India version ( by request with input over voltage protction) |
| □: For standard version | |
| L | Rated output voltage ( 12/24V or L/M/H types) |
| □ | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) |
| A | lo adjustable via built-in potentiometer |
| AB | lo adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) |
| 1.12V and 24V models without the AB type 2.India version needs MOQ for production, please consult MEANWELL for detail |
|
Meanwell XLG-150-12 Specifications
| Model | XLG-150□-12□ | |
| OUTPUT | DC VOLTAGE | 12V |
| CONSTANT CURRENT REGION | 8.4-12V | |
| RATED CURRENT (Default) | 12.5A | |
| RATED POWER | 150W | |
| RIPPLE & NOISE (max.) | 150mVP-P | |
| CURRENT ADJ RANGE | Adjustable for A-Type only (via the built-in potentiometer) | |
| 6.5-12.5A | ||
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC | |
| HOLD UP TIME (Typ.) | 10ms/ 230VAC 10ms/ 115VAC | |
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load | |
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 91.50% | |
| AC CURRENT | 1.8A / 115VAC 1.0A / 230VAC 0.8A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| NO LOAD POWER CONSUMPTION | No load power consumption <0.5W(for standard version) | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Hiccup mode or constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode or constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 13.5 ~ 18V | |
| Shut down output voltage, re-power on to recover | ||
| INPUT OVER VOLTAGE | 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed | |
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +90℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.06%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), UL879,CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13) (for XLG-150I type only);NOM-058-SCFI-2017(except for Blank type);IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 2269.5K hrs min. Telcordia SR-332 (Bellcore) ; 213.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 180*63*35.5mm (L*W*H) | |
| PACKING | 0.8Kg;16pcs / 13.4Kg /0.67CUFT | |
Meanwell XLG-150-12 Features
l Protection functions: OVP/SCP/OCP/OTP
l Life time >50,000 hrs. and 5 years warranty
l Wide input range 100~305V AC (Class I)
l Full power output at 70~100% Constant power mode operation
l Metal case with IP67, suitable for outdoor application
l Surge protection with 6KV/4KV (10KV/6KV optional)
l 3 in 1 dimming function (Dim to off and Isolation design)
l India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Meanwell XLG-150-12 Applications
l Skyscraper lighting
l Street lighting
l Floodlight Lighting
l Stage lighting
l Fishing lighting
l Horticulture lighting
l Bay lighting
l DMX power supply
l Type HL for use in class l, Division 2
Meanwell XLG-150-12 Mechanical Diagram
