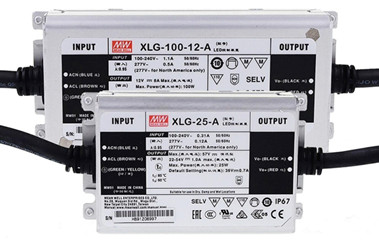

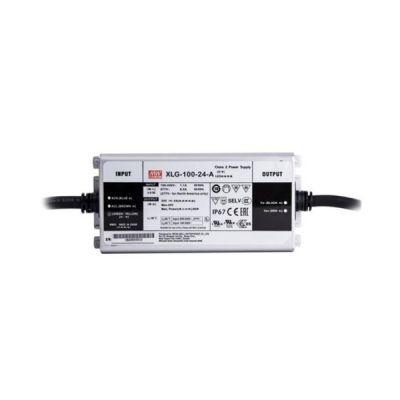

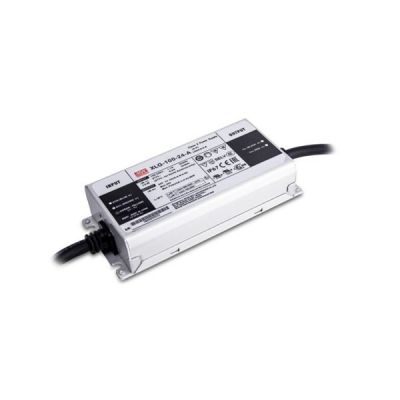

Meanwell XLG-100 series is 100W LED AC/DC driver highlighting constant power mode. The entire series could operate from 100~305VAC and offered with different rated current ranging between 700mA and 8000mA. Since the efficiency reaches high up to 92% with fanless design, XLG-100 is able to work for -40℃ ~+90℃ case temperature under free air convection. What’s more, the metal housing design and IP67 ingress protection level allow the products to fit both indoor and outdoor applications. The innovative environment-adaptive capability permits to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. Apart from them, it complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. Considering its longevity, high efficiency and excellent reliability, Meanwell XLG-100 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell XLG-100 Series Encoding
| XLG | Series Name |
| 100 | Rated Wattage |
| I | I: for India version ( by request with input over voltage protction) |
| □: For standard version | |
| L | Rated output voltage ( 12/24V or L/H types) |
| □ | Functions options |
| Blanks | lo and Vo fixed. (For harsh envirenment) |
| A | lo adjustable via built-in potentiometer |
| AB | lo adjustable via built-in potentiometer + 3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance) |
Meanwell XLG-100 Series Model Specifications
| Model | XLG-100□-12□ | XLG-100□-24-□ | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | |
| CONSTANT CURRENT REGION | 8.4-12V | 16.8-24V | ||
| RATED CURRENT (Default) | 8A | 4A | ||
| RATED POWER | 96W | 96W | ||
| RIPPLE & NOISE (max.) | 150mVP-P | 240mVP-P | ||
| CURRENT ADJ RANGE | Adjustable for A-Type only (via the built-in potentiometer) | |||
| 4-8A | 2-4A | |||
| VOLTAGE TOLERANCE | ±3.0% | ±2.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±2.0% | ±1.0% | ||
| SETUP, RISE TIME | 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC | |||
| HOLD UP TIME (Typ.) | 12ms/ 230VAC 12ms/ 115VAC | |||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load | |||
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC) | |||
| EFFICIENCY (Typ.) | 92.00% | 92.00% | ||
| AC CURRENT | 1.1A / 115VAC 0.5A / 230VAC 0.42A/277VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=300 s measured a μ t 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| NO LOAD POWER CONSUMPTION | No load power consumption <0.5W(for standard version) | |||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||
| Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 13.5 ~ 18V | 27-34V | ||
| Shut down output voltage, re-power on to recover | ||||
| INPUT OVER VOLTAGE | 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed | |||
| Can survive input voltage stress of 440Vac for 48 hours @ tc 75℃ max | ||||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||
| MAX. CASE TEMP | Tcase=+90℃ | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +90℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | UL8750(type”HL”), UL879, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14;EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13, IS15885(Part2/Sec13)(for XLG-100I type only);NOM-058-SCFI-2017(except for Blank type); IP67 approved |
||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55015(CISPR15) ,GB/T17743 | ----- | ||
| Radiated | BS EN/EN55015(CISPR15) ,GB/T17743 | ----- | ||
| Harmonic Current | BS EN/EN61000-3-2 , GB/T17625.1 | Class C @load>=50% | ||
| Voltage Flicker | BS EN/EN61000-3-3 | …... | ||
| EMC IMMUNITY | BS EN/EN61547 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT/Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | 4KV/Line-Line 6KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 2782.6K hrs min. Telcordia SR-332 (Bellcore) ; 276.4Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 140*63*32mm (L*W*H) | |||
| PACKING | 0.58Kg;24pcs /15Kg /0.85CUFT | |||
| Model | XLG-100□-L-□ | XLG-100□-H-□ | ||
Meanwell XLG-100 Series Features
l Wide input range 100~305VAC (Class I )
l Full power output at 70~ 100% Constant power mode operation
l Metal case with IP67, suitable for outdoor application
l LVLE (H type), Class 2(24V) power unit
l Surge protection with 6KV/4KV (1 OKV/6KV optional)

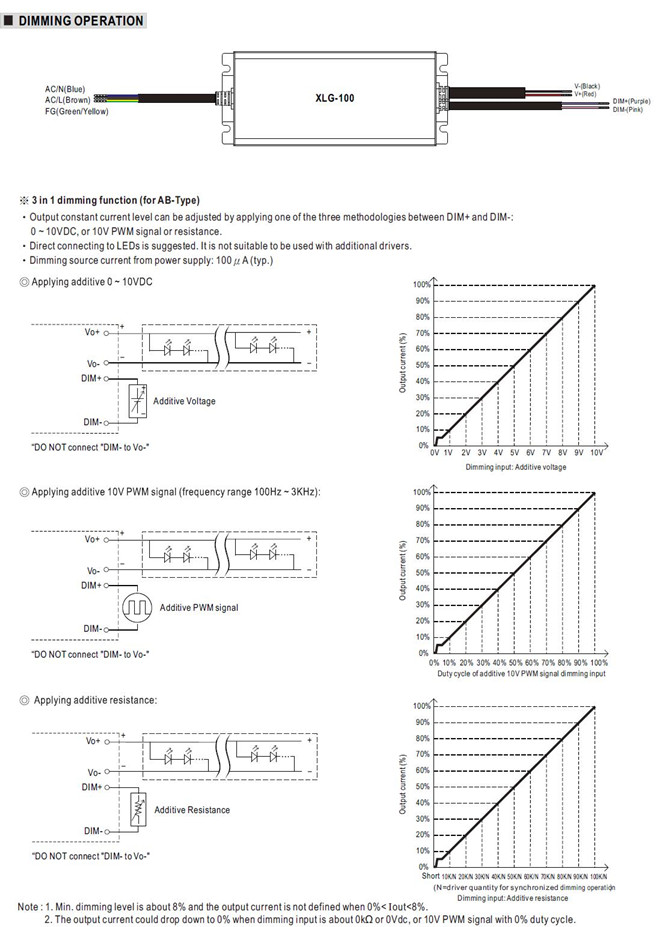

l 3 in 1 dimming function (Dim to off and Isolation design)
l India (EESL) version with Input Over Voltage Protection cansurvive input voltage stress of 440Vac for 48 hours
l Protection functions: OVP/SCP/OCP/OTP
l Comply with UL Class P
l Life time >50,000 hrs. and 5 years warranty
Meanwell XLG-100 Series Applications
l Skyscraper lighting
l Street lighting
l Floodlight Lighting
l Stage lighting
l Fishing lighting
l Horticulture lighting
l Bay lighting
l DMX power supply
l Type HL for use in class I , Division 2

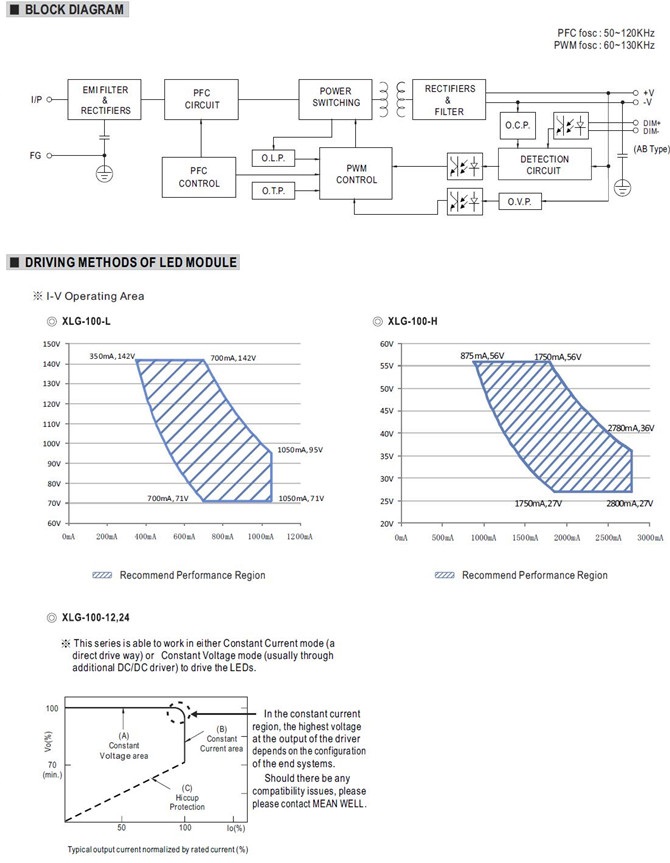

Meanwell XLG-100 Series Mechanical Diagram
