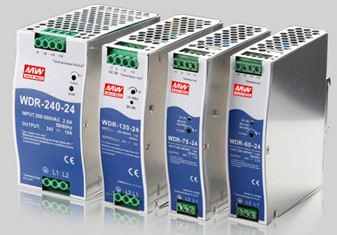

WDR-60
13.36
Details

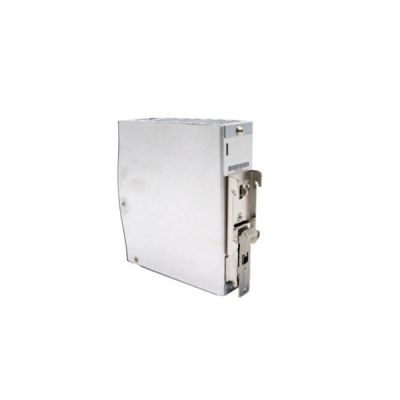

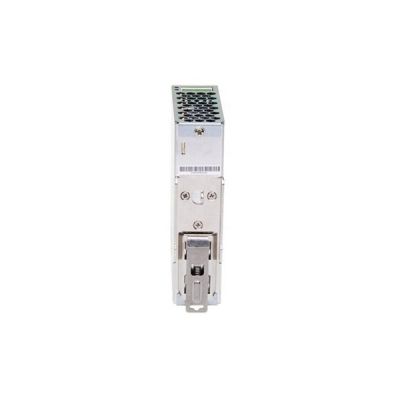

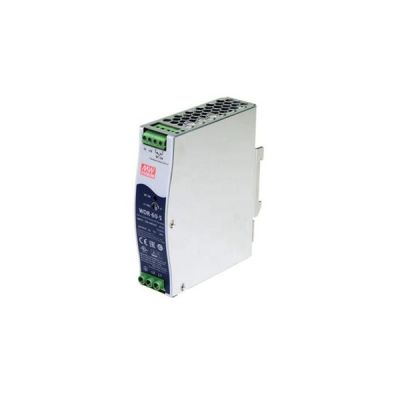

Meanwell WDR-60 series is a 60W DIN rail power supply with ultra-wide AC input range. They are suitable to be mounted on TS-35/7.5 or TS-35/15 rails. The entire series can accept 180~550V ac ultra-wide input voltage range for single phase or 2-phase system. And they are easy to install DIN rail type, narrow width (32mm) in slim design. With the working efficiency and 4.7KV AC high isolation voltage, the products could operate at the ambient temperature between -30℃ and 85℃ under air convection at 2000m altitude. Apart from them, WDR-60 Series is compliant with BS EN/EN-61 000-6-2 standard regarding immunity for industrial environments. Thanks to high efficiency, high reliability, and high quality, Meanwell WDR-60 series is ideal for various applications such as industrial automation, surveillance, telecommunication and more applications.
Meanwell WDR-60 Series Model Specifications
| Model | WDR-60-5 | WDR-60-12 | WDR-60-24 | WDR-60-48 | |
| Output | DC VOLTAGE | 5V | 12V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 2.5A | 1.25A | |
| CURRENT RANGE | 0-10A | 0-5A | 0-2.5A | 0-1.25A | |
| RATED POWER | 50W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 5-6V | 12-15V | 24-29V | 48-57V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.5% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 70ms, 20ms/400Vac 2000ms, 70ms, 10ms/230Vac at full load | ||||
| Input | VOLTAGE RANGE | 180~550Vac or 254~780Vdc | |||
| FREQUENCY RANGE | 47 - 63Hz | ||||
| EFFICIENCY (Typ.) | 83.5%/400Vac | 86.5%/400Vac | 89%/400Vac | 90.5%/400Vac | |
| AC CURRENT (Typ.) | 0.4A/400Vac 0.7A/230Vac | ||||
| INRUSH CURRENT (Typ. ) | COLD START 50A /400Vac 30A/230Vac | ||||
| LEAKAGE CURRENT | <2mA / 530Vac | ||||
| PROTECTION | OVERLOAD | 105~135% rated output power | |||
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed,Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 6.2-7.2V | 16-18V | 31-37V | 58-60.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||||
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.) : 30V / 1A resistive | |||

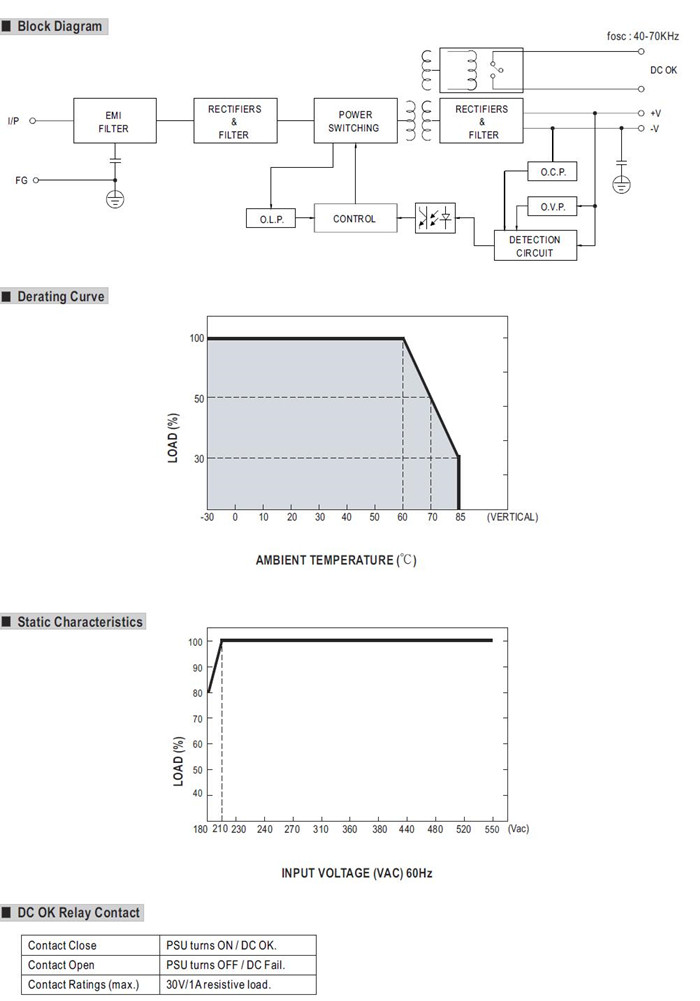

| ENVIRONMENT | WORKING TEMP | -30 ~ +85℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP | -40 ~ +85℃ | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||||
| VIBRATION | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | ||||
| OPERATING ALTITUDE | 2000 meters | ||||
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL61010, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved; design refer to GL and BS EN/EN60204-1(By request | |||
| WITHSTAND VOLTAGE | I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55032(CISPR32) | Class B | |||
| Radiated | BS EN/EN55032(CISPR32) | Class B | |||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | |||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | |||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m, criteria A | |||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 2KV/5KHz, criteria A | |||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A | |||
| Conducted | BS EN/EN61000-4-6 | Level 3, 10V, criteria A | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m, criteria A | |||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
|||
| Others | MTBF | 313.68K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 32*125.2*102mm (W*H*D) | ||||
| PACKING | 0.45Kg; 28pcs/13.6Kg/1.24CUFT | ||||
Meanwell WDR-60 Series Features
l 180~550 Vac ultra-wide input for 1-phase or 2-phase
l 32mm slim width
l 4.7KVac I/O high isolation (Reinforced isolation)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7. 5 or 15
l -30~+85℃ ultra-wide operating temperature (>+60℃ derating)
l Over voltage category Ⅲ
l DC OK relay contact
l DC output voltage adjustable (+20%)
l 3 years warranty
Meanwell WDR-60 Series Applications
l Industrial control system
l Semiconductor fabriclation equipment
l Factory automation
l Electro-mechanical apparatus

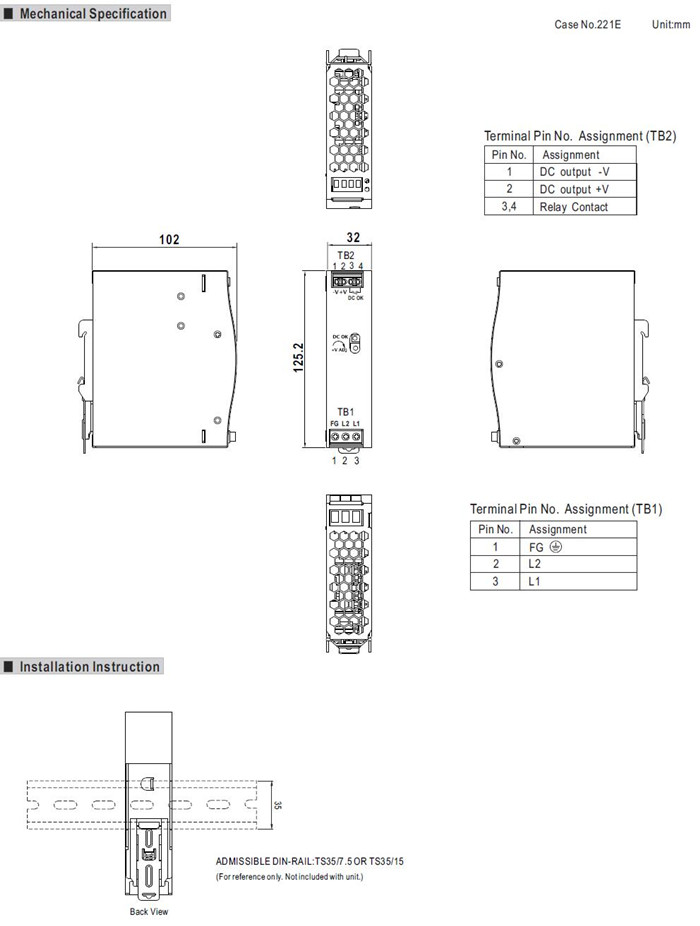

Meanwell WDR-60 Series Mechanical Diagram
