WDR-60-12
13.58
Details

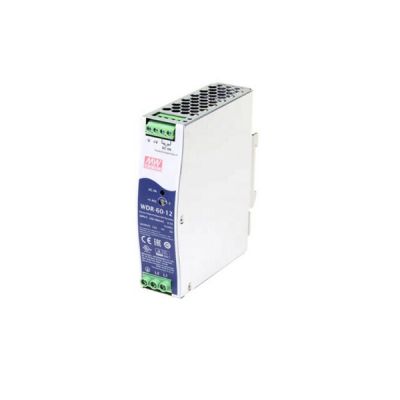

Meanwell WDR-60-12 is a 60W DIN rail power supply with 12V5A0-5A60W120mVp-p12-15V. This item is suitable to be installed on TS-35/7.5 or TS-35/15 rails, and also accept 180~550V ac ultra-wide input voltage range for single phase or 2-phase system. WDR-60-12 is very easy to install DIN rail type because of the narrow width (32mm) in slim design. With the working efficiency and 4.7KV AC high isolation voltage, WDR-60-12 could operate at the ambient temperature between -30℃ and 85℃ under air convection at 2000m altitude. Moreover, WDR-60-12 is compliant with BS EN/EN-61 000-6-2 standard regarding immunity for industrial environments. In view of the high efficiency, high reliability, and high quality, Meanwell WDR-60-12 is ideal for various applications such as industrial automation, surveillance, telecommunication and more applications.
Meanwell WDR-60-12 Specifications
| Model | WDR-60-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 5A | |
| CURRENT RANGE | 0-5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 12-15V | |
| VOLTAGE TOLERANCE | ±1.5% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 70ms, 20ms/400Vac 2000ms, 70ms, 10ms/230Vac at full load | |
| Input | VOLTAGE RANGE | 180~550Vac or 254~780Vdc |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 86.5%/400Vac | |
| AC CURRENT (Typ.) | 0.4A/400Vac 0.7A/230Vac | |
| INRUSH CURRENT (Typ. ) | COLD START 50A /400Vac 30A/230Vac | |
| LEAKAGE CURRENT | <2mA / 530Vac | |
| PROTECTION | OVERLOAD | 105~135% rated output power |
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed,Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 16-18V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | |
| FUNCTION | DC OK SIGNAL | Relay contact rating(max.) : 30V / 1A resistive |
| ENVIRONMENT | WORKING TEMP | -30 ~ +85℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP | -40 ~ +85℃ | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | |
| OPERATING ALTITUDE | 2000 meters | |
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL61010, BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004 approved; design refer to GL and BS EN/EN60204-1(By request |
| WITHSTAND VOLTAGE | I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3 | |
| Others | MTBF | 313.68K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 32*125.2*102mm (W*H*D) | |
| PACKING | 0.45Kg; 28pcs/13.6Kg/1.24CUFT | |
Meanwell WDR-60-12 Features
l 32mm slim width
l Over voltage category Ⅲ
l DC OK relay contact
l DC output voltage adjustable (+20%)
l 3 years warranty
l Cooling by free air convection

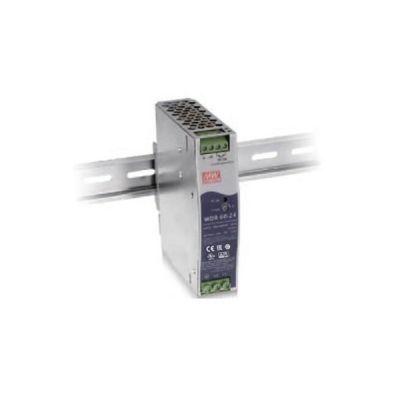

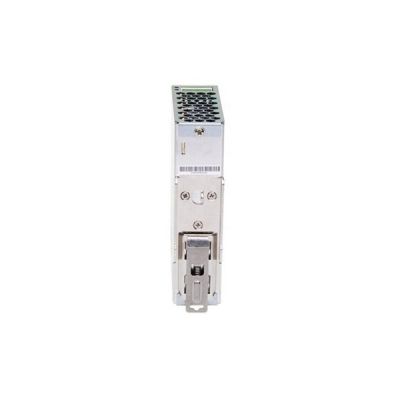

l Can be installed on DIN rail TS-35/7.5 or 15
l 180~550 Vac ultra-wide input for 1-phase or 2-phase
l 4.7KVac I/O high isolation (Reinforced isolation)
l -30~+85℃ ultra-wide operating temperature (>+60℃ derating)
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell WDR-60-12 Applications
l Industrial control system
l Semiconductor fabriclation equipment
l Factory automation
l Electro-mechanical apparatus
Meanwell WDR-60-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
