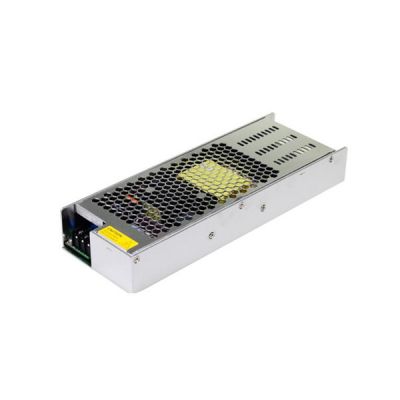

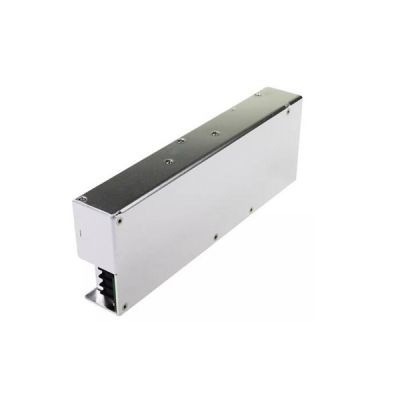

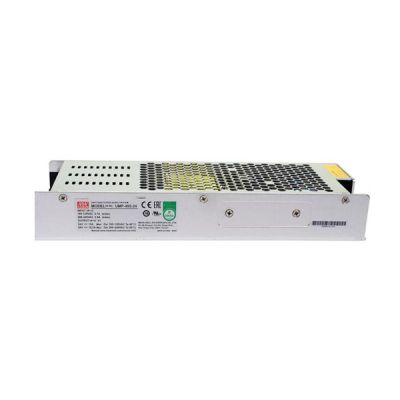

Meanwell UMP-400 Series is a 400W 1U profile flexible configurable modular fanless power.The series could deliver up to 400W maximum output power with convection cooling only. At the same time, the front-end can function as an independent400W 24V or 48V singe output power supply. Moreover, UMP-400 can be configured into a multi-channel modular power supply by combining with NID series non-isolated DC-DC converters. They are standalone standard products which is purchased and used separately. The NID output modules can deliver up to 100W, and could be selected according to the working voltages used in the industry including 5V, 12V, 15V and 24V. Additionally, UMP-400 Series is certified to ITE 62368-1 safety standards, and is designed to meet medical(2xMOPP) safety standard, therefore, offering the best flexibility for various types of applications such as industrial control system, diagnostic or biological facilities and so on.
Meanwell UMP-400 Series Model Specifications
| Model | UMP-400-24 | UMP-400-48 | ||
| Output | DC VOLTAGE | 24V | 48V | |
| RATED CURRENT | 16.7A | 8.3A | ||
| RATED OUTPUT POWER | 400W max | |||
| VOLTAGE ADJ. RANGE | 22.8-25.2v | 45.6-50.4v | ||
| RIPPLE & NOISE (max.) | 240 mVp-p | 360 mVp-p | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 1000ms, 50ms/230Vac ; 2000ms, 50ms/115Vac | |||
| HOLD UP TIME (Typ.) | 12ms@230Vac ; 12ms@115Vac | |||
| MULTIPLE OUTPUT (Optional Model) | DC VOLTAGE | CH1 output 24V or 48V + NID DC modules for CH2,3,4 | ||
| TOTAL OUTPUT POWER | CH2,3,4 output power can be flexible depending on NID selection. Combined power on all channels must not exceed 400W | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR (Typ.) | PF>0.95/230VAC PF>0.98/115VAC at full load | |||
| EFFICIENCY (Typ.) | 88.5%, full case load with each type of module at nominal voltage | |||
| AC CURRENT (Typ.) | 2.5A/230VAC 4.7A/115VAC | |||
| INRUSH CURRENT (Typ. ) | 40A/230VAC 25A/115VAC | |||
| LEAKAGE CURR ENT | Earth leakage current <300uA / 264VAC, Touch current <100uA/264VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||
| OVER VOLTAGE | 26.4 ~ 31.2V | 52.8 ~ 62.4V | ||
| Protection type: shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP. | -40 ~ +85℃ | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, 60 min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 5000 meters /OVCⅡ | |||
| OVER VOLTAGE GATEGORY | Ⅲ; According to IEC62368-1; altitude up to 2000 meters | |||
| SAFETY &EMC | SAFETY STANDARDS | EAC TP TC 004; UL62368-1, Dekra seal BS EN/EN62368-1 approved; Design refer to ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC 60601-1 (3rd edition) | ||
| ISOLATION LEVEL | Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) / Design refer to BS EN/EN55011 (CISPR11) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) / Design refer to BS EN/EN55011 (CISPR11) | Class B | ||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | ||
| EMC IMMUNITY | BS EN/EN55035; Design refer to BS EN/EN60601-1-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 4, 8KV air; Level 4, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3, 3V/m | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 1KV | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Line-FG; 1KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||
| Others | MTBF | 1428.4K hrs min. Telcordia SR-332 (Bellcore) ; 187.3K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 250*89*37mm (L*W*H) | |||
| PACKING | 0.88Kg; 14pcs/13Kg/0.89CUFT | |||
Meanwell UMP-400 Series Features
l Universal AC input/Full range
l Fanless design, 400W convection
l Modular design, optional configuration available
l Slim and 1U low profile
l No minimum load required
l Protections: Short circuit/Overload/Over voltage/Over temperature
l -30 ~ +70℃ working temperature
l LED indicator for power on
l 3 years warranty
Meanwell UMP-400 Series Applications
l Diagnostic or biological facilities
l Test or measurement systems
l Telecommunication equipment
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
Meanwell UMP-400 Series Mechanical Diagram
