UMP-400-24
95.27
Details

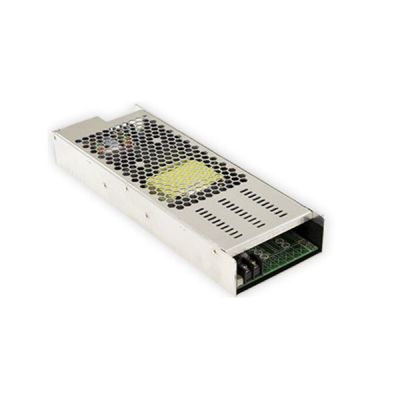

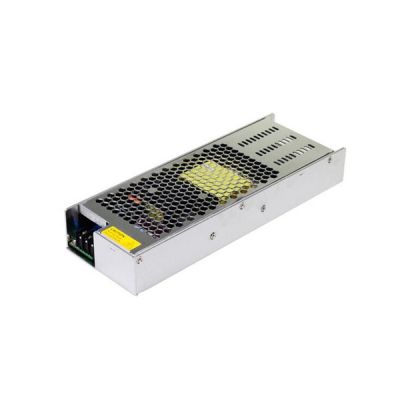

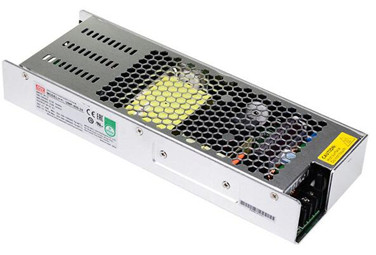

Meanwell UMP-400-24 is a 400W flexible configurable modular fanless power with 24V16.7A400W max22.8-25.2v240 mVp-p. The product is designed 1U low profile and delivers up to 400W maximum output power with convection cooling only. Apart from them, the front-end can function as an independent400W 24V or 48V singe output power supply. Additionally, UMP-400-24 can be configured into a multi-channel modular power supply by combining with NID series non-isolated DC-DC converters. The item is a standalone standard product which is purchased and used separately. The NID output modules can deliver up to 100W, and could be selected according to the working voltages used in the industry including 5V, 12V, 15V and 24V. Moreover, UMP-400-24 is certified to ITE 62368-1 safety standards, and is designed to meet medical(2xMOPP) safety standard, therefore, providing the best flexibility for various types of applications such as industrial control system, diagnostic or biological facilities and so on.
Meanwell UMP-400-24 Specifications
| Model | UMP-400-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 16.7A | |
| RATED OUTPUT POWER | 400W max | |
| VOLTAGE ADJ. RANGE | 22.8-25.2v | |
| RIPPLE & NOISE (max.) | 240 mVp-p | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 50ms/230Vac ; 2000ms, 50ms/115Vac | |
| HOLD UP TIME (Typ.) | 12ms@230Vac ; 12ms@115Vac | |
| MULTIPLE OUTPUT (Optional Model) | DC VOLTAGE | CH1 output 24V or 48V + NID DC modules for CH2,3,4 |
| TOTAL OUTPUT POWER | CH2,3,4 output power can be flexible depending on NID selection. Combined power on all channels must not exceed 400W | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 88.5%, full case load with each type of module at nominal voltage | |
| AC CURRENT (Typ.) | 2.5A/230VAC 4.7A/115VAC | |
| INRUSH CURRENT (Typ. ) | 40A/230VAC 25A/115VAC | |
| LEAKAGE CURR ENT | Earth leakage current <300uA / 264VAC, Touch current <100uA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| OVER VOLTAGE | 26.4 ~ 31.2V | |
| Protection type: shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP. | -40 ~ +85℃ | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, 60 min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters /OVCⅡ | |
| OVER VOLTAGE GATEGORY | Ⅲ; According to IEC62368-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | EAC TP TC 004; UL62368-1, Dekra seal BS EN/EN62368-1 approved; Design refer to ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC 60601-1 (3rd edition) |
| ISOLATION LEVEL | Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP | |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035; Design refer to BS EN/EN60601-1-2 | |
| Others | MTBF | 1428.4K hrs min. Telcordia SR-332 (Bellcore) ; 187.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 250*89*37mm (L*W*H) | |
| PACKING | 0.88Kg; 14pcs/13Kg/0.89CUFT | |
Meanwell UMP-400-24 Features
l 3 years warranty
l LED indicator for power on
l Slim and 1U low profile
l No minimum load required
l Universal AC input/Full range
l Fanless design, 400W convection
l Modular design, optional configuration available
l Protections: Short circuit/Overload/Over voltage/Over temperature
l -30 ~ +70℃ working temperature
Meanwell UMP-400-24 Applications
l Diagnostic or biological facilities
l Mechanical and electrical equipment
l Test or measurement systems
l Telecommunication equipment
l Industrial automation machinery
l Industrial control system
Meanwell UMP-400-24 Mechanical Diagram
