UHP-500
70.17
Details

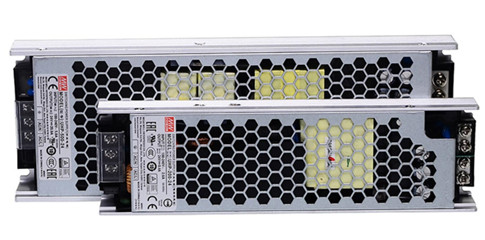

Meanwell UHP-500 Series is a 500W single-output slim type power supply with 31mm low profile design, and adopts the full range 90~264 VAC input. The entire series provides an output voltage line of 4.2V,5V,12V, 15V ,24V ,36V ,48V and 55V. In addition to the high efficiency up to 95%, the whole series can also operate from -30℃~ 70℃ under air convection without fan. What’s more, UHP-500 has the complete protection functions and 5G anti-vibration capability, and at the same time, lt is complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,UL 62368-1 and GB4943. Considering the high efficiency, high reliability and long longevity. Meanwell UHP-500 series serves as a high-performance power supply solution for various industrial applications.
Meanwell UHP 500 Series Model Specifications
| Model | UHP-500-4.2 | UHP-500-5 | UHP-500-12 | UHP-500-15 | UHP-500-24 | UHP-500-36 | UHP-500-48 | UHP-500-55 | |
| Output | DC VOLTAGE | 4.2V | 5V | 12V | 15V | 24V | 36V | 48V | 55V |
| RATED CURRENT | 80A | 80A | 41.7A | 33.4A | 20.9A | 13.9A | 10.45A | 8.9A | |
| RATED POWER | 336W | 400W | 500.4W | 501W | 501.6W | 500.4W | 501.6W | 500W | |
| RIPPLE & NOISE (max.) mVp-p | 200 | 200 | 200 | 200 | 240 | 360 | 360 | 500 | |
| VOLTAGE ADJ. RANGE | 3.6-4.4V | 4.5-5.5V | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 34.2-37.8V | 45.6-50.4V | 45-58V | |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | |
| LOAD REGULATION | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC; 1000ms,50ms/115VAC at full load;550ms/230VAC for 55V setup time | ||||||||
| HOLD UP TIME | 12ms/230VAC 12ms/115VAC | ||||||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 - 63Hz | ||||||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 89.00% | 90.00% | 94.00% | 94.00% | 94.00% | 95.00% | 95.00% | 95.00% | |
| AC CURRENT (Typ.) | 4.85A/115VAC 2.6A/230VAC | ||||||||
| INRUSH CURRENT (Typ. ) | Cold start 30A/115VAC 60A/230VAC | ||||||||
| LEAKAGE CURR ENT | <0.75mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 110~140% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 4.62-5.46V | 5.75-6.75V | 13.2-15.6V | 16.5-19.5V | 26.4-31.2V | 39.6-46.8V | 52.8-62.4V | 60-69V | |
| Protection type :Shut down O/P voltage,re-power on to recover | |||||||||
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down | ||||||||
| FUNCTION | DC OK SIGNAL(Optional | Contact rating(max.):30Vdc/1A resistive load | |||||||
| REDUNDANT(Optional) | For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system |
||||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), CCC GB4943, BSMI CNS14336-1,EAC TP TC 004 approved;Design refer to BS EN/EN61558-2-16 | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55032,GB/T9254,Class B, BS EN/EN61000-3-2,-3, BSMI CNS13438, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level ,criterial A,EAC TP TC 020 | ||||||||
| Others | MTBF | 168K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 232*81*31mm (L*W*H) | ||||||||
| PACKING | 0.905kg; 16pcs/15.48kg/0.82CUFT | ||||||||
Meanwell UHP 500 Series Features
l Slim and Low profile (31mm)
l Fanless design,500W convection
l Withstand 300V AC surge input for 5 seconds
l Built-in active PFC function
l -30℃~+70℃ working temperature
l Protections: Short circuit/Overload/Over voltage/Over temperature
l DC OK active signal and redundant function(option)
l Operating altitude up to 5000 meters
l LED indicator for power on
l 3 years warranty
Meanwell UHP 500 Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l LED display application
l Power Source Equipment for PoE(55V model)

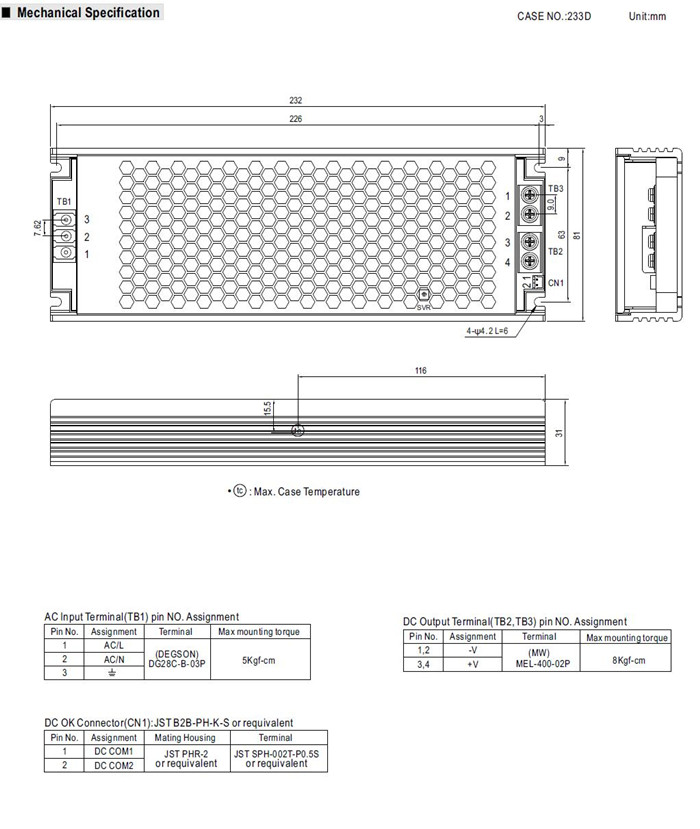

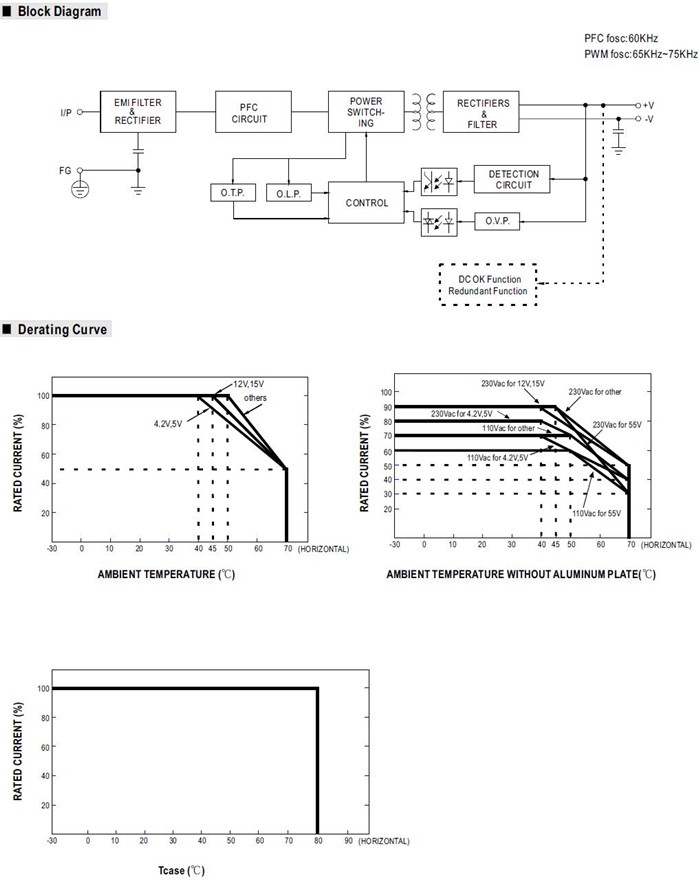

Meanwell UHP 500 Series Mechanical Diagram
