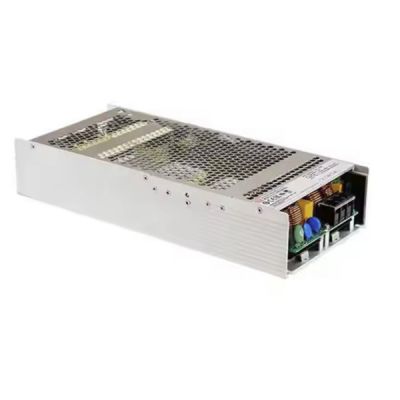

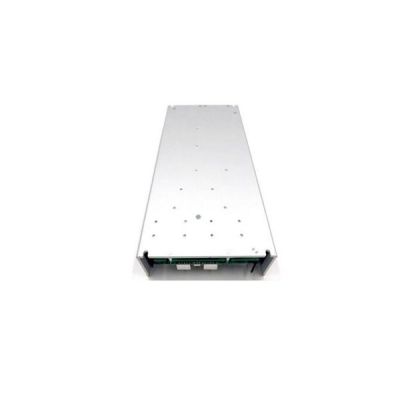

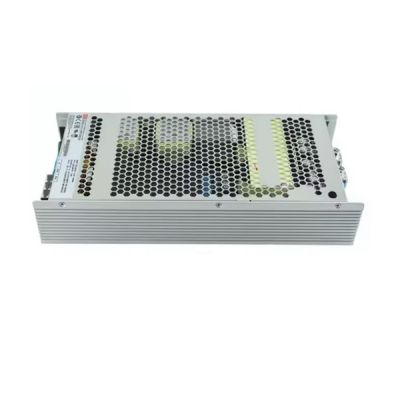

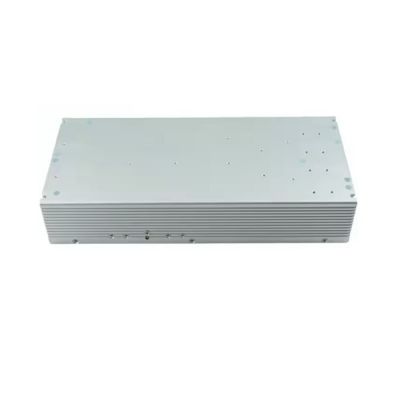

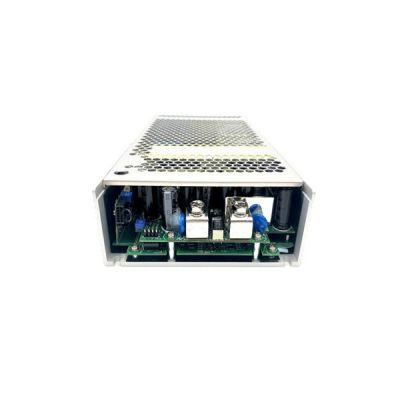

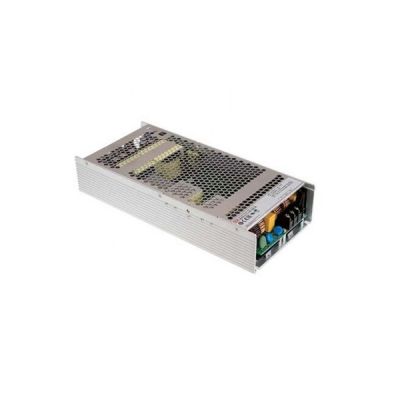

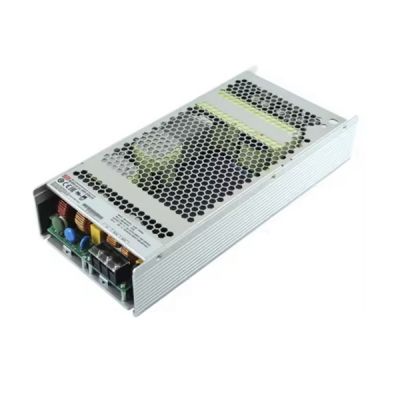

Meanwell UHP-2500 Series is a 2500W single-output slim type power supply with 60mm of low-profile design. They adopt the full range 90~ 264VAC input, and the entire series offers an output voltage line of 24V, 36V and 48V. In addition to the high efficiency up to 96%, the whole series works from -30~70℃ under air convection without fan. What’s more, UHP-2500 has the complete protection functions and 2G anti-vibration capability; It is also complied with the international safety regulations such as TUV EN62368-1, UL .62368-1, and design refers to EN61558-1 and EN60335-1. Considering its high efficiency, good quality and excellent reliability, Meanwell UHP-2500 Series serves as a high-performance power supply solution for various industrial applications.
Meanwell UHP-2500 Series Encoding
| UHP | Series Name |
| 2500 | Rated Wattage |
| 24 | Output Voltage (24V/36V/48V) |
| □ | Communication Protocol Option |
| Type | Communication Protocol Option |
| Blank | None In stock |
| PM | PMBus Protocol By request |
| CAN | CANBus Protocol By request |
Meanwell UHP-2500 Series Model Specifications
| Model | UHP-2500-24 | UHP-2500-36 | UHP-2500-48 | |
| Output | DC VOLTAGE | 24V | 36V | 48V |
| RATED CURRENT | 104.2A | 69.4A | 52.1A | |
| RATED POWER | 2500.8W | 2498.4W | 2500.8W | |
| RIPPLE & NOISE (max.) | 300mVp-p | 360mVp-p | 480mVp-p | |
| VOLTAGE ADJ. RANGE | 11-14V | 14-17V | 22-28V | |
| VOLTAGE TOLERANCE | By built-in potentiometer, SVR | |||
| 24~28.8V | 36~43.2V | 48~57.6V | ||
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.5% | ±0.5% | |
| SETUP, RISE TIME | 1800ms, 60ms/230VAC 1800ms, 60ms/115VAC at full load | |||
| HOLD UP TIME | 16ms/230VAC at 75% load 10ms/230VAC at full load ; 16ms/115VAC at 75% load 10ms/115VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 250 ~ 370VDC | ||
| FREQUENCY RANGE | 47 - 63Hz | |||
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |||
| EFFICIENCY (Typ.) | 95.00% | 95.50% | 96.00% | |
| AC CURRENT (Typ.) | 15A/115VAC 14.3A/230VAC | |||
| INRUSH CURRENT (Typ. ) | Cold start 30A/115VAC 60A/230VAC | |||
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 115% rated output power | ||
| Protection type : Constant current limiting, unit will shutdown after 5 sec. re-power on to recover | ||||
| OVER VOLTAGE | 30 ~ 35V | 45 ~ 51V | 60 ~ 67V | |
| Protection type :Shut down O/P voltage,re-power on to recover | ||||
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down | |||
| FUNCTION | DC OK SIGNAL | The TTL signal out, PSU turn on = 4.5 ~ 5.5V ; PSU turn off = -0.5 ~ 0.5V. Please refer to the Function Manual | ||
| AUXILIARY POWER | 12V@0.4A tolerance±10%, ripple 150mVp-p | |||
| REMOTE ON/OFF CONTROL | Power ON : Short circuit Power OFF : Open circuit | |||
| OUTPUT VOLTAGE PROGRAMMABLE(PV) |
Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual | |||
| OUTPUT CURRENT PROGRAMMABLE(PC) |
Adjustment of constant current level is allowable to 20 ~ 100% of rated current Please refer to the Function Manual | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, Dekra seal BS EN/EN62368-1, EAC TP TC 004 approved; design refers to BS EN/EN61558-1, BS EN/EN60335-1(by request | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | CLASS B | ||
| Radiated | BS EN/EN55032 (CISPR32) | CLASS A | ||
| Harmonic Current | BS EN/EN61000-3-2 | CLASS A | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | ||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-6-2 | 2KV/Line-Line 4KV/Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
||
| Others | MTBF | 166.12K hrs min. Telcordia SR-332 (Bellcore) ; 48.91K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 310*140*60mm (L*W*H) | |||
| PACKING | 3.5kg; 4pcs/15kg/1.76CUFT | |||
Meanwell UHP-2500 Series Features
l Slim and Low profile (60mm)
l Fanless and conduction-cooled design
l Built-in active PFC function
l -30~+70'C working temperature
l Output voltage and constant current level programmable·
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in remote ON-OFF control
l DC OK active signal
l Operating altitude up to 5000 meter
l LED indicator for power on
l Optional PMBus or CANBus protocol
l 5 years warranty
Meanwell UHP-2500 Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Test and measurement instrument
l Laser related machine
l Charging related equipment
l Household appliances
l Power Sourcing Equipment of PoE(48V model: DC O/P range 48~57.6V)
Meanwell UHP-2500 Series Mechanical Diagram
