UHP-200-15
45.79
Details

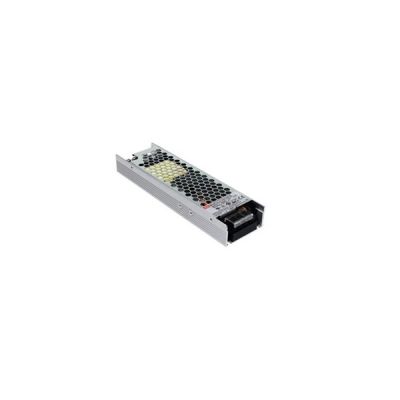

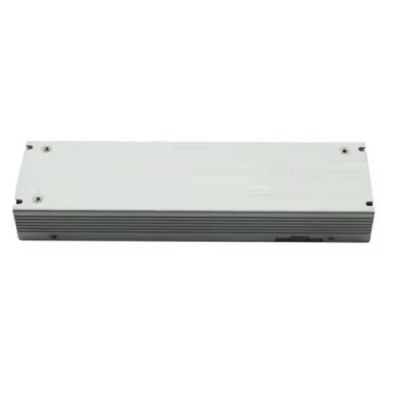

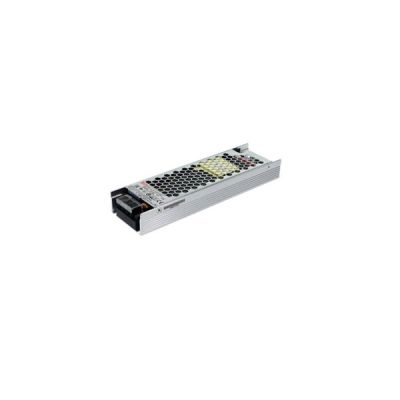

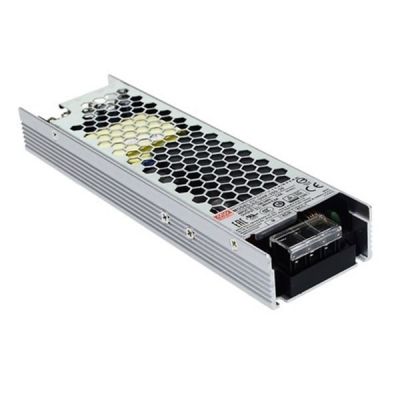

Meanwell UHP-200-15 is 200W single-output power supply with 15V13.4A201W240mVp-p14.3-15.8V. Meanwhile, the item stands out with slim type and 26mm low-profile. It adopts the full range 90~264VAC input, and offers an output voltage 15V. Since the efficiency reaches high up to 94%, UHP-200-15 is able to operate from -30℃~70℃ under air convection with no fan. What's more, the product has the complete protection functions and 5G anti-vibration capability. It is complied with the international safety regulations such as TUV EN62368-1, EN60335-1,UL 62368-1 and GB4943. As a result of its high efficiency, excellent reliability and longevity, Meanwell UHP-200-15 serves as a perfect performance solution for various industrial scenarios.
Meanwell UHP-200-15 Encoding
| UHP | Series Name | |
| 200 | Rated Wattage | |
| □ | Blank | |
| R | ||
| 15 | Output Voltage | |
| Type | Description | Note |
| Blank | Enclosed | In Stock |
| R | Built-in DC OK active signal and redundant function | In Stock |
Meanwell UHP-200-15 Specifications
| Model | UHP-200-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 13.4A | |
| RATED POWER | 201W | |
| RIPPLE & NOISE (max.) | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 14.3-15.8V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.3% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2000ms, 80ms/23OVAC; 3000ms, 80ms/115VAC at full load;550ms/23OVAC for 55V setup time | |
| HOLD UP TIME | 10ms/23OVAC 10ms/115VAC | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.94/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 94% | |
| AC CURRENT (Typ.) | 2.2A/115VAC 1.1A/23OVAC | |
| INRUSH CURRENT (Typ. ) | Cold start 40A/115VAC 80A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA/ 24OVAC | |
| PROTECTION | OVERL OAD | 110~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 16.5-19.5V | |
| Protection type :Shut down O/P voltage ,re-power on to recover | ||
| OVER TE MPERATURE | Protection type :Shut down O/P voltage or Hiccup mode, recovers automatically after temperature goes down | |
| FUNCTION | DC OK SIGNAL(Optional) | Contact rating(max.):15Vdc/10mA resistive load |
| REDUNDANT(Optional) | For parallel connection protection: For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70C (Refer to Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP HUMIDITY | 40 ~ +85C, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | +0.03%/C (0~ 50'C ) | |
| VIBRATIO | 10 ~ 500Hz, 5G 10min./1cycle, 6Omin. each along x, Y, Z axes | |
| SAFETY & EMC |
SAFETY STANDARDS | UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), CCC GB4943, EAC TP TC 004, BSMI CNS14336-1 approved, Design refer to BS EN/EN61558-1,-2-16 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH | |
| EMC EMISSION | Compliance to BS EN/EN55032,GB9254,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3,EAC TP TC 020,BSMI CNS13438 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level , criterial A,EAC TP TC 020 |
|
| OTHERS | MTBF | 257K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 194*55*26mm (L*W*H) | |
| PACKING | 0.468kg;24pcs/12.2kg/0.49CUFT | |
Meanwell UHP-200-15 Features
l Slim and Low profile (26mm)
l 3 years warranty
l LED indicator for power on
l Fanless design,200W convection
l Built-in active PFC function
l -30~+70℃ working temperature
l Operating altitude up to 5000 meter
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
l DC OK active signal and redundant function (option)
Meanwell UHP-200-15 Applications
l Household appliances
l LED display application
l Industrial control system
l Industrial automation machinery
l Power Source Equipment for PoE (55V model)
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
Meanwell UHP-200-15 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
