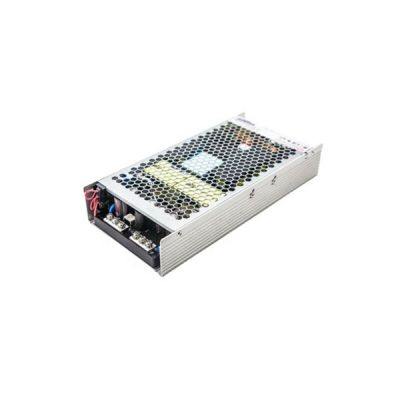

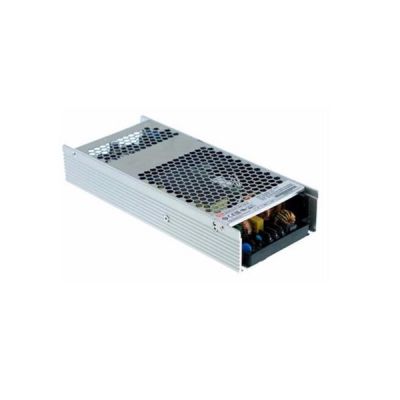

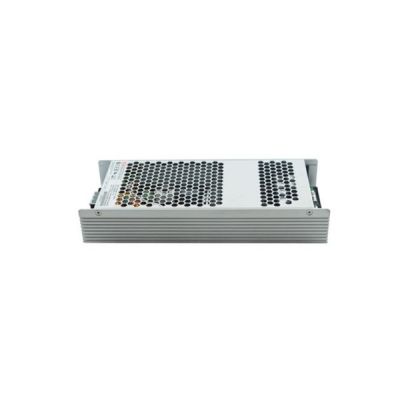

Meanwell UHP-1000 Series is a 1000W single-output slim type power supply with 41mm low profile design, and it adopts the full range 90~264VAC input. The entire series provides an output voltage line of 12V, 24V, 36Vand 48V. In addition to the high efficiency up to 96%, the whole series operates from -30℃ ~ 70℃ under air convection without fan. Moreover, UHP-1000 has the complete protection functions and 5G anti-vibration capability; and also complied with the international safety regulations such as TUV BS EN/EN62368-1,UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. Considering its longevity, high efficiency and excellent quality, Meanwell UHP-1000 Series serves as a high-performance power supply solution for various industrial applications.
Meanwell UHP-1000 Series Encoding
| UHP | Series Name |
| 1000 | Rated Wattage |
| 12 | Output Voltage |
Meanwell UHP-1000 Series Model Specifications
| Model | UHP-1000-12 | UHP-1000-24 | UHP-1000-36 | UHP-1000-48 | |
| Output | DC VOLTAGE | 12V | 24V | 36V | 48V |
| RATED CURRENT | 80A | 42A | 28A | 21A | |
| RATED POWER | 960W | 1008W | 1008W | 1008W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 240mVp-p | 240mVp-p | 300mVp-p | |
| VOLTAGE TOLERANCE | By built-in potentiometer, SVR | ||||
| 12-14.4V | 24-28.8V | 36-43.2V | 48~57.6V | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | ||||
| HOLD UP TIME | 12ms/230VAC 12ms/115VAC | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 250 ~ 370VDC | |||
| FREQUENCY RANGE | 47 - 63Hz | ||||
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 94.00% | 95.00% | 95.50% | 96.00% | |
| AC CURRENT (Typ.) | 10.1A/115VAC 5.3A/230VAC | ||||
| INRUSH CURRENT (Typ. ) | Cold start 20A/115VAC 40A/230VAC | ||||
| LEAKAGE CURR ENT | <0.75mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105~120% rated output power | |||
| Protection type: Constant current limiting with delay shutdown after 3 seconds, re-power on to recover | |||||
| OVER VOLTAGE | 14.5 ~ 16V | 29 ~ 33V | 43.5 ~ 49V | 59 ~ 66V | |
| Protection type: Shut down O/P voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Protection type: Shut down O/P voltage, recovers automatically after temperature goes down | ||||
| FUNCTION | DC OK SIGNAL | The TTL signal out, PSU turn on = 4.5 ~ 5.5V; PSU turn off = -0.1 ~ 0.5V. Please refer to the Function Manual | |||
| AUXILIARY POWER | 12V@0.5A tolerance±10%, ripple 150mVp | ||||
| REMOTE ON/OFF CONTROL | Power ON: "Low" <0 ~ 0.5V or Short circuit Power OFF: "Hi" >2 ~ 5V or Open circuit | ||||
| OUTPUT VOLTAGE PROGRAMMABLE(PV) |
Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual |
||||
| OUTPUT CURRENT PROGRAMMABLE(PC) |
Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual |
||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refer to BS EN/EN61558-1, BS EN/EN60335-1 | |||
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH | ||||
| EMC EMISSION | Parameter | Standard | Test Level | ||
| Conducted | BS EN/EN55032 (CISPR32) | CLASS B | |||
| Radiated | BS EN/EN55032 (CISPR32) | CLASS A | |||
| Harmonic Current | BS EN/EN61000-3-2 | CLASS A | |||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | |||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||
| EFT / Burs | BS EN/EN61000-4-4 | Level 3 | |||
| Surge | BS EN/EN61000-6-2 | 2KV/Line-Line 4KV/Line-Earth | |||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||
| Others | MTBF | 218.86K hrs min. Telcordia SR-332 (Bellcore) ; 69.81K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 240*115*41mm (L*W*H) | ||||
| PACKING | 1.74kg ; 8pcs/14.9kg/0.74CUFT | ||||
Meanwell UHP-1000 Series Features
l Slim and Low profile (41mm)
l Fanless and conduction-cooled design
l Withstand 300VAC surge input for 5 seconds
l Built-in active PFC function
l -30~+70'C working temperature
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in remote ON-OFF control
l DC OK active signal
l Operating altitude up to 5000 meter
l LED indicator for power on
l 5 years warranty
Meanwell UHP-1000 Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipmentor apparatus
l Test and measurement instrument
l Laser related machine
l Charging related equipment
l Household appliances
l Power Sourcing Equipment of PoE(48V model: DC O/P range 48~57 .6V)

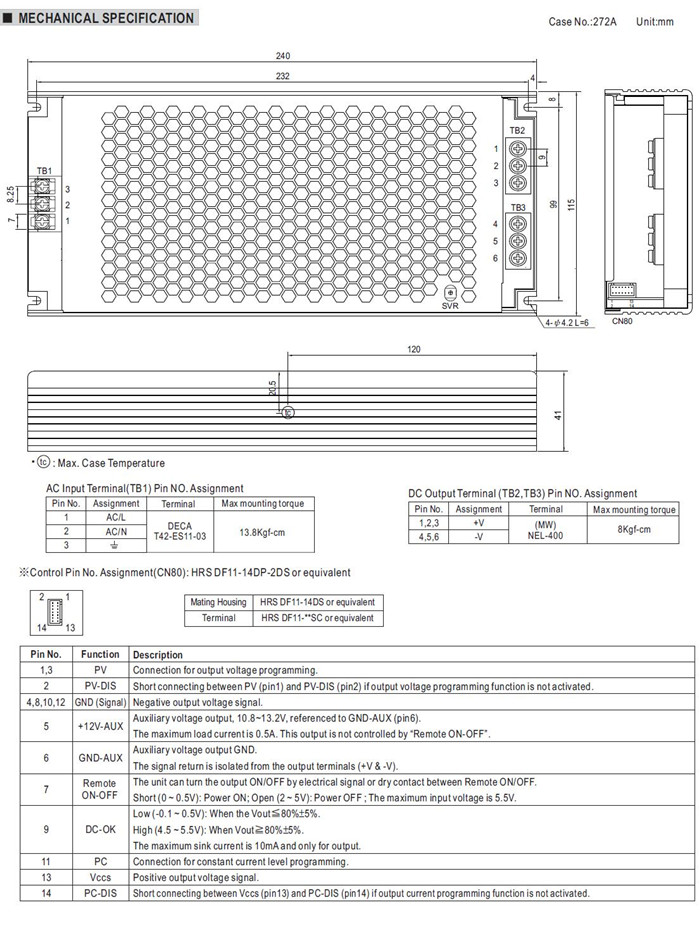

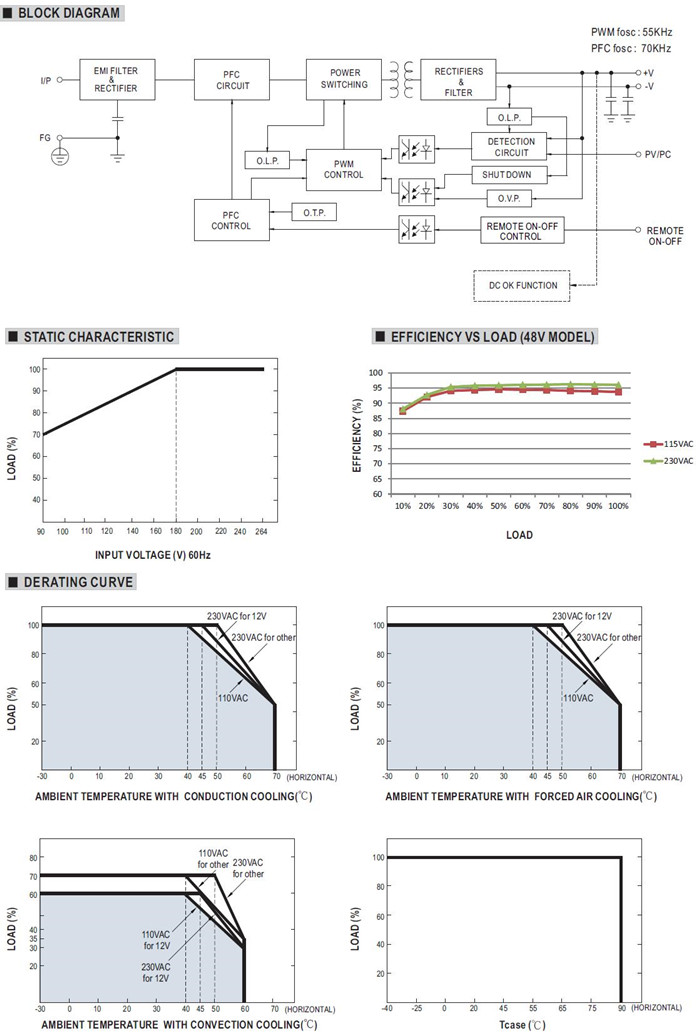

Meanwell UHP-1000 Series Mechanical Diagram
