UHP-1000-24
200.12
Details

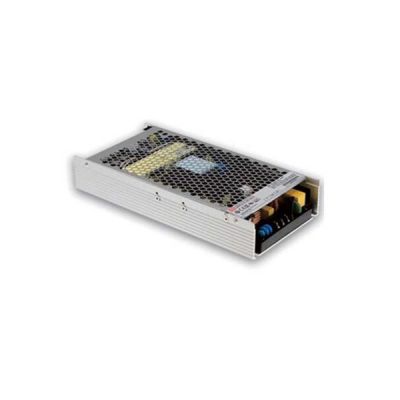

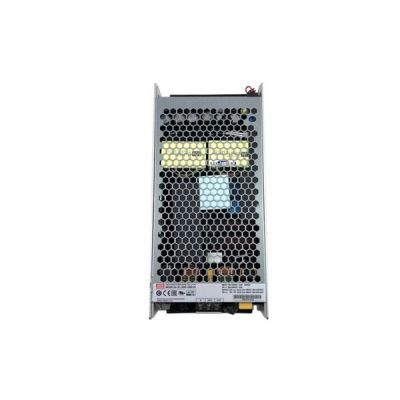

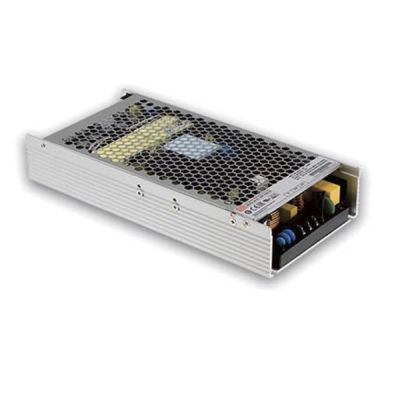

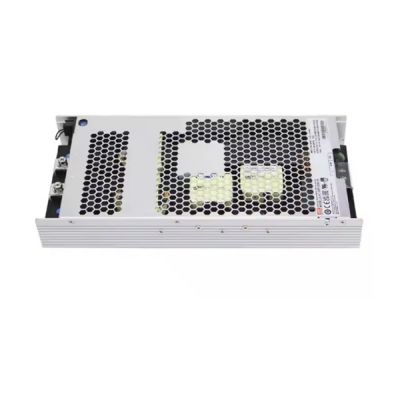

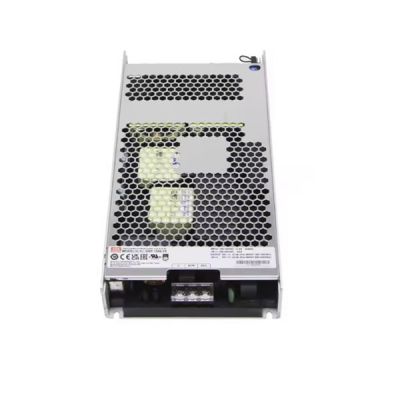

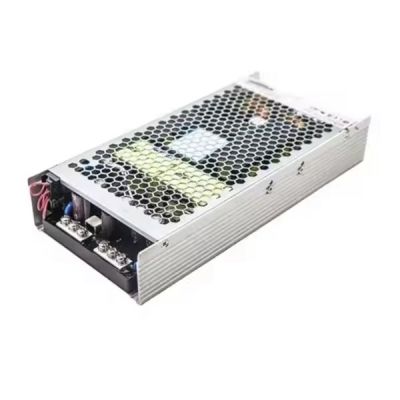

Meanwell UHP-1000-24 is a 1000W slim type power supply with 24V42A1008W240mVp-p. The model stands out with single-output and 41mm low profile design. Meanwhile, it adopts the full range 90~264VAC input with an output 24V voltage. In addition to the efficiency reaching high up to 96%, UHP-1000-24 could operate from -30℃~70℃ under air convection without fan. What’s more, it provides the complete protection functions and 5G anti-vibration capability. The product is also complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1, and design refers to BS EN/EN61558-1 and BS EN/EN60335-1. Thanks to its longevity, high efficiency and excellent quality, Meanwell UHP-1000-24 serves as a high-performance power supply solution for various industrial applications.
Meanwell UHP-1000-24 Encoding
| UHP | Series Name |
| 1000 | Rated Wattage |
| 24 | Output Voltage |
Meanwell UHP-1000-24 Specifications
| Model | UHP-1000-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 42A | |
| RATED POWER | 1008W | |
| RIPPLE & NOISE (max.) | 240mVp-p | |
| VOLTAGE TOLERANCE | By built-in potentiometer, SVR | |
| 24-28.8V | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load | |
| HOLD UP TIME | 12ms/230VAC 12ms/115VAC | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 250 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 95.00% | |
| AC CURRENT (Typ.) | 10.1A/115VAC 5.3A/230VAC | |
| INRUSH CURRENT (Typ. ) | Cold start 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERLOAD | 105~120% rated output power |
| Protection type: Constant current limiting with delay shutdown after 3 seconds, re-power on to recover | ||
| OVER VOLTAGE | 29 ~ 33V | |
| Protection type: Shut down O/P voltage, re-power on to recover | ||
| OVER TEMPERATURE | Protection type: Shut down O/P voltage, recovers automatically after temperature goes down | |
| FUNCTION | DC OK SIGNAL | The TTL signal out, PSU turn on = 4.5 ~ 5.5V; PSU turn off = -0.1 ~ 0.5V. Please refer to the Function Manual |
| AUXILIARY POWER | 12V@0.5A tolerance±10%, ripple 150mVp | |
| REMOTE ON/OFF CONTROL | Power ON: "Low" <0 ~ 0.5V or Short circuit Power OFF: "Hi" >2 ~ 5V or Open circuit | |
| OUTPUT VOLTAGE PROGRAMMABLE(PV) |
Adjustment of output voltage is allowable to 50 ~ 120% of nominal output voltage Please refer to the Function Manual |
|
| OUTPUT CURRENT PROGRAMMABLE(PC) |
Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual |
|
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to “Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refer to BS EN/EN61558-1, BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH | |
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | |
| Others | MTBF | 218.86K hrs min. Telcordia SR-332 (Bellcore) ; 69.81K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 240*115*41mm (L*W*H) | |
| PACKING | 1.74kg ; 8pcs/14.9kg/0.74CUFT | |
Meanwell UHP-1000-24 Features
l 5 years warranty
l DC OK active signal
l LED indicator for power on
l Slim and Low profile (41mm)
l Fanless and conduction-cooled design
l Withstand 300VAC surge input for 5 seconds
l Built-in active PFC function
l Built-in remote ON-OFF control
l -30℃~+70℃ working temperature
l Operating altitude up to 5000 meter
l Output voltage and constant current level programmable
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell UHP-1000-24 Applications
l Laser related machine
l Household appliances
l Industrial automation machinery
l Industrial control system
l Charging related equipment
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Test and measurement instrument
l Power Sourcing Equipment of PoE(48V model: DC O/P range 48~57 .6V)
Meanwell UHP-1000-24 Mechanical Diagram
