TDR-960
150.14
Details

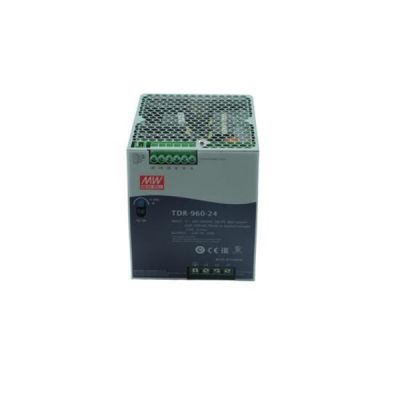

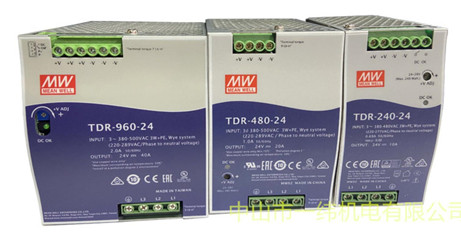

Meanwell TDR-960 Series is 960W Three Phase Industrial DIN RAIL with PFC Function. The entire series adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. Since the body is 110mm in width, the design saves a lot of space inside the cabinets. TDR-960 Series adopts three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible), and conforms to BS EN/EN6 1000-3-2, the norm the European Union regulates for harmonic current. Apart from them, TDR-960 series is designed with metal housing that improves the power dissipation. With working efficiency reaching up to 94 %, the entire series could operate at the ambient temperature between -30℃ and 70℃ under air convection. Moreover, the product is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) allow TDR-960 series a very ideal power supply solution for industrial applications.
Meanwell TDR-960 Series Model Specifications
| Model | TDR-960-24 | TDR-960-48 | |
| Output | DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 40A | 20A | |
| CURRENT RANGE | 0-40A | 0-20A | |
| RATED POWER | 960W | 960W | |
| RIPPLE & NOISE (max.) | 180mVp-p | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 24-28V | 48-55V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 100ms/400VAC 800ms, 100ms/500VAC at full load | ||
| HOLD UP TIME | 12ms / 400VAC 14ms / 500VAC at full load | ||
| Input | VOLTAGE RANGE | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC | |
| FREQUENCY RANGE | 47 - 63Hz | ||
| POWER FACTOR (Typ.) | PF>=0.88/400VAC PF>=0.86/500VAC at full load | ||
| EFFICIENCY (Typ.) | 94.00% | 94.50% | |
| AC CURRENT (Typ.) | 2A/400VAC 1.4A/500VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 60A | ||
| LEAKAGE CURRENT | <3.5mA / 530VAC | ||
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power | |
| Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover | |||
| OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
| SAFETY &EMC | SAFETY STANDARDS | UL508, AS/NZS62368.1, EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ; Meet BS EN/EN62368-1 | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 | ||
| Others | MTBF | 59.4K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 110*125.2*150mm (W*H*D) | ||
| PACKING | 2.47Kg ; 6pcs/15.8Kg/1.47CUFT | ||

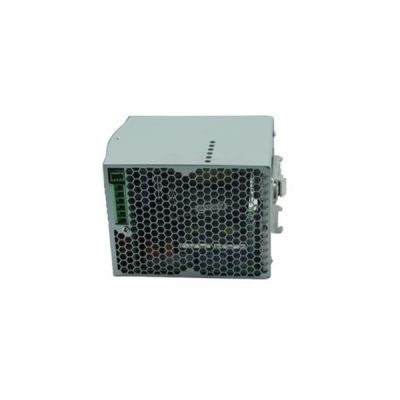

Meanwell TDR-960 Series Features
l Width only 110mm
l Built-in DC OK relay contact
l 100% full load burn-in test
l 3 years warranty
l Built-in active PFC function compliance to EN61 000-3-2
l High efficiency 94.5% and low power dissipation
l Protections: Short circuit/Overload /Over voltage /Over temperature
l Cooling by free air convection
l Built-in constant current limiting circuit
l Can be installed on DIN rail TS-35/7.5 or 15
l UL508 (industrial control equipment) approved
l EN61000-6-2 (EN50082-2) industrial immunity level

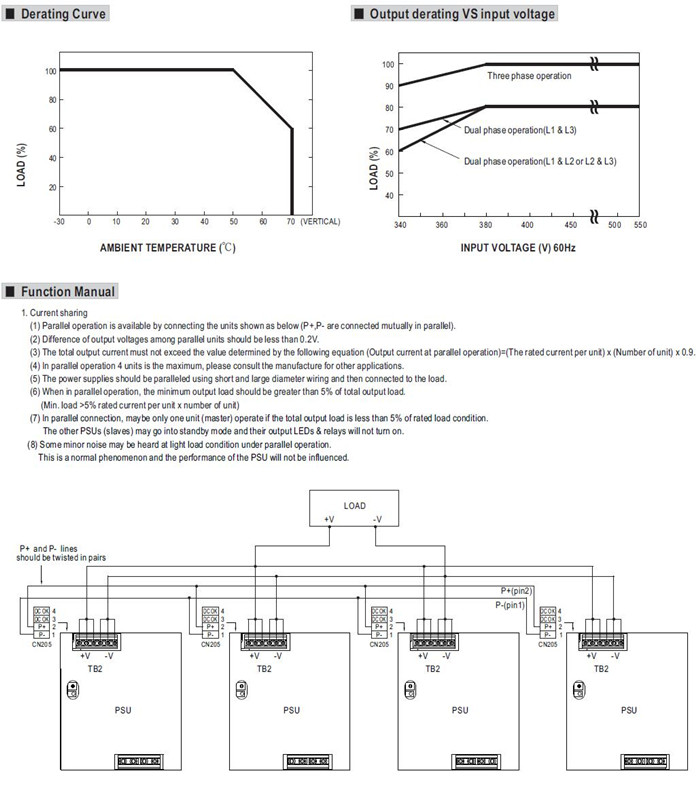

l Current sharing up to 3840W (3+1)
l Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)

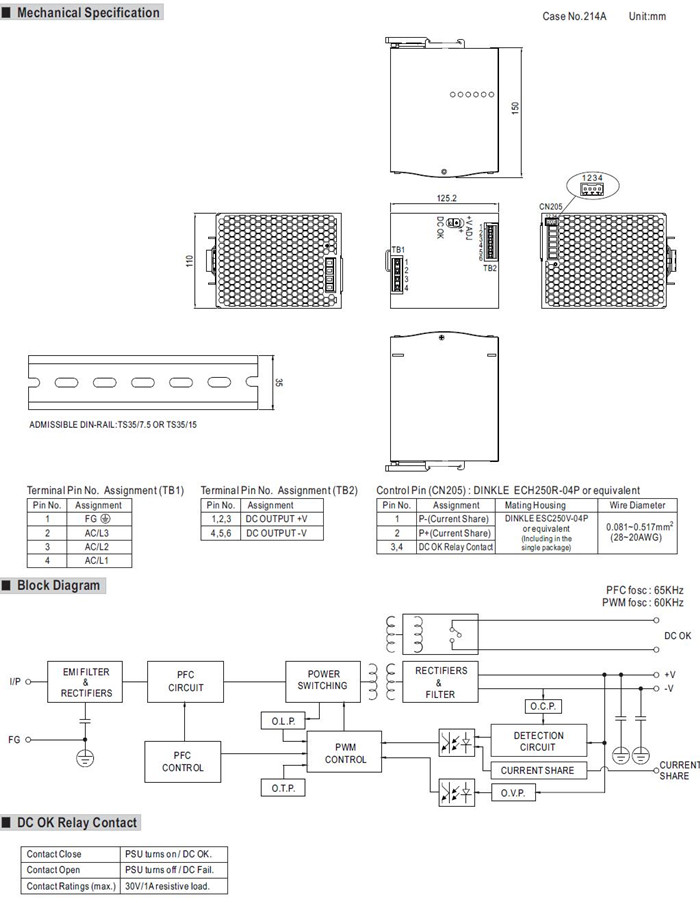

Meanwell TDR-960 Series Mechanical Diagram
