TDR-960-48
153.48
Details

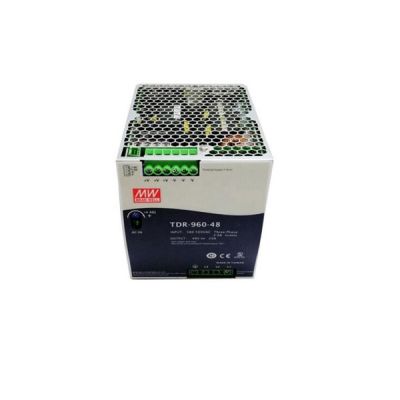

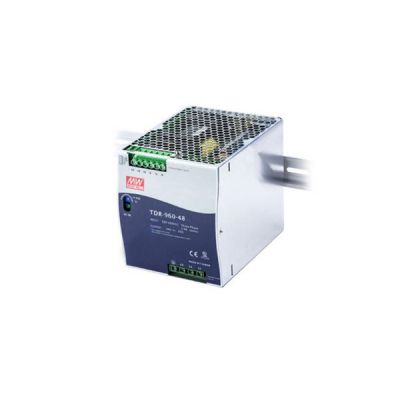

Meanwell TDR-960-48 is 960W Three Phase Industrial DIN RAIL with PFC Function and 48V20A0-20A960W250mVp-p48-55V. The product adapts to be installed on TS-35/7.5 or TS-35/15 mounting rails. As the body is designed just 110mm in width, it saves lots of space inside the cabinets. Additionally, TDR-960-48 adopts three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible), and conforms to BS EN/EN6 1000-3-2, the norm the European Union regulates for harmonic current. Moreover, it is designed with metal housing that enhances the power dissipation. With the working efficiency going up to 94 %, the product could operate at the ambient temperature between -30℃ and 70℃ under air convection. Apart from them, TDR-960-48 is provided with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) permit TDR-960-48 a very ideal power supply solution for industrial applications.
Meanwell TDR-960-48 Specifications
| Model | TDR-960-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 20A | |
| CURRENT RANGE | 0-20A | |
| RATED POWER | 960W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 48-55V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 100ms/400VAC 800ms, 100ms/500VAC at full load | |
| HOLD UP TIME | 12ms / 400VAC 14ms / 500VAC at full load | |
| Input | VOLTAGE RANGE | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.88/400VAC PF>=0.86/500VAC at full load | |
| EFFICIENCY (Typ.) | 94.50% | |
| AC CURRENT (Typ.) | 2A/400VAC 1.4A/500VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 60A | |
| LEAKAGE CURRENT | <3.5mA / 530VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover | ||
| OVER VOLTAGE | 56 ~ 65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, AS/NZS62368.1, EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ; Meet BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 59.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 110*125.2*150mm (W*H*D) | |
| PACKING | 2.47Kg ; 6pcs/15.8Kg/1.47CUFT | |
Meanwell TDR-960-48 Features
l 3 years warranty
l Width only 110mm
l Built-in DC OK relay contact
l 100% full load burn-in test
l Cooling by free air convection
l Current sharing up to 3840W (3+1)
l Built-in constant current limiting circuit
l Can be installed on DIN rail TS-35/7.5 or 15
l High efficiency 94.5% and low power dissipation
l UL508 (industrial control equipment) approved
l EN61000-6-2 (EN50082-2) industrial immunity level
l Built-in active PFC function compliance to EN61 000-3-2
l Protections: Short circuit/Overload /Over voltage /Over temperature
l Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
Meanwell TDR-960-48 Mechanical Diagram
