TDR-480-24
70.28
Details

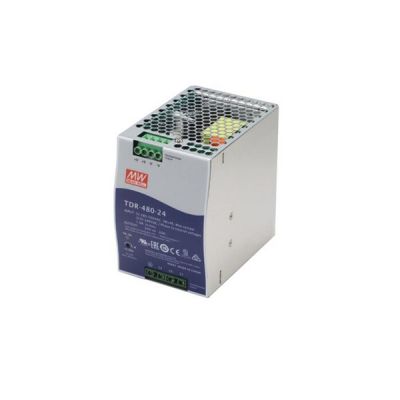

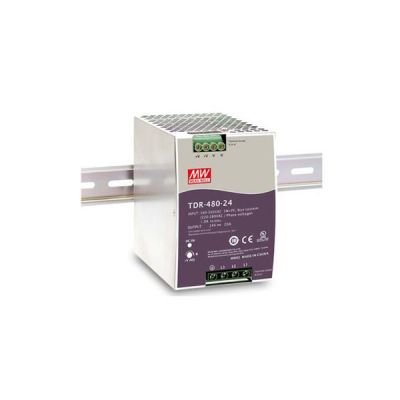

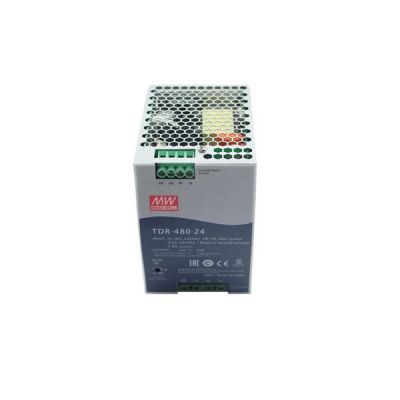

Meanwell TDR-480-24 is one economical slim 480W DIN rail power supply with 24V20A0-20A480W150mVp-p24-28V. The unit adapts to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is just 85.5mm in width, which saves a lot of space inside the cabinets. Additionally, TDR-480-24 adopts the full range AC input from3ѱ 340VAC to 550VAC (Dual Phase operation possible) and conforms to BS EN/EN6 1000-3-2, the norm the European Union regulates for harmonic current. Apart from them, TDR-480-24 is designed with metal housing that enhances the power dissipation. As working efficiency reaches up to 93 %, the product could operate at the ambient temperature between -20℃ and 70℃ under air convection. Moreover, TDR-480-24 is provided with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) makes TDR-480-24 a very competitive power supply solution for industrial applications.
Meanwell TDR-480-24 Encoding
| TDR | Series Name |
| 480 | Rated Wattage |
| 24 | Output Voltage |
Meanwell TDR-480-24 Specifications
| Model | TDR-480-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 20A | |
| CURRENT RANGE | 0-20A | |
| RATED POWER | 480W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24-28V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1200ms, 60ms/400VAC 800ms, 60ms/500VAC at full load | |
| HOLD UP TIME | 20ms / 400VAC 20ms / 500VAC at full load | |
| Input | VOLTAGE RANGE | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.9/400VAC PF>=0.88/500VAC at full load | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT (Typ.) | 0.85A/400VAC 0.7A/500VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A | |
| LEAKAGE CURRENT | <3.5mA / 530VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover | ||
| OVER VOLTAGE | 29 ~ 33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, IEC62368-1,UL 62368-1, AS/NZS 62368.1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK(optional):0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN61204-3 | |
| Others | MTBF | 391.7K hrs min. Telcordia SR-332(Bellcore) ; 108.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 85.5*125.2*128.5mm (W*H*D) | |
| PACKING | 1.51Kg ; 8pcs/13Kg/1.16CUFT | |
Meanwell TDR-480-24 Features
l Width only 85 .5mm
l 3 years warranty
l Cooling by free air convection
l Built-in constant current limiting circuit
l Can be installed on DIN rail TS-35/7.5 or 15
l UL 508 (industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
l Optional DC OK relay contact
l Built-in active PFC function compliance to BS EN/EN61000-3-2
l High efficiency 93% and low power dissipation
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
Meanwell TDR-480-24 Applications
l Industrial control system
l Semiconductor fabrication equipment
l Factory automation
l Electro-mechanical apparatus
Meanwell TDR-480-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
