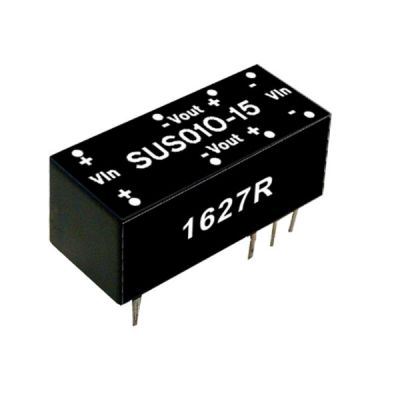

SUS01O-15
4.99
Details
Meanwell SUS01O-15 Specifications

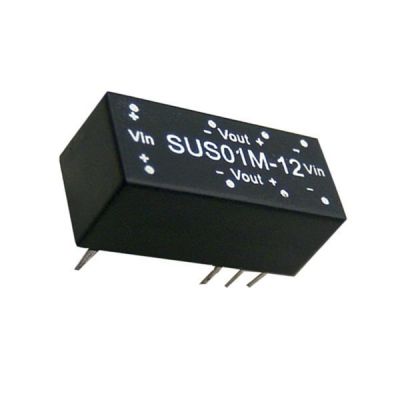

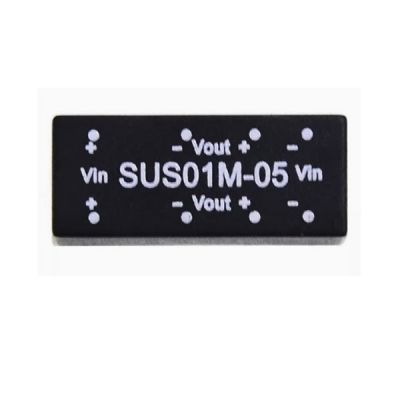

| ORDER NO. | SUS01L-15 | SUS01M-15 | SUS01N-15 | SUS01O-15 | |
| OUTPUT | DC VOLTAGE | 15V | |||
| OUTPUT CURRENT RANGE | 0~67mA | ||||
| EFFICIENCY (Typ.) | 79.00% | 82.00% | 83.00% | 83.00% | |
| SPECIFICATIONS | |||||
| OUTPUT | RATED POWER | 1W | |||
| RIPPLE&NOISE (max.) | 100mVp-p | ||||
| LINE REGULATION | ±1.2% for 1% input variation | ||||
| LOAD REGULATION | ±8.0% | ||||
| VOLTAGE ACCURACY | ±2.0% | ||||
| SWITCHING FREQUENCY | 50KHz min. | ||||
| INPUT | VOLTAGE RANGE | 4.5-5.5V | 10.8-13.2V% | 21.6-26.4V | 43.2~52.8V |
| NORMAL VOLTAGE | 5V | 12V% | 24V | 48V | |
| INPUT CURRENT Full load | 280mA | 112mA | 55mA | 28mA | |
| INPUT CURRENT No load | 21mA | 11mA | 10mA | 3mA | |
| FILTER | Capacitor type | ||||
| PROTECTION | Fuse recommended | ||||
| PROTECTION | OVERLOAD | Momentary | |||
| Protection type : Broken | |||||
| SHORT CIRCUIT | Momentary | ||||
| Protection type : Broken | |||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +71℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -25 ~ +105℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| ISOLATION CAPACITANCE | 80pF max. | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020 | ||||
| OTHERS | MTBF | 700khrs min. MIL-HDBK-217F(25℃) | |||
| DIMENSION | 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H) | ||||
| PACKING | 3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton | ||||
Meanwell SUS01O-15 Features
l Cooling by free air convection
l Non-conductive plastic case
l 2 years warranty
l Built-in EMI filter
l 100% burn-in test
l Dual in line package
l 1500VDC I/O isolation
l Internal SMD technology
l Low cost/High reliability
l Approvals: FCC/EAC/CE/UKCA
Meanwell SUS01O-15 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
