SUS01N-05
4.96

SUS01N-05

$4.96

Meanwell 1W DC-DC Unregulated Single Output Converter with 5V0~200mA1W100mVp-p21.6-26.4V24V55mA10mA

- +
Availability:In stock
SKU Meanwell SUS01N-05
Brand Meanwell
Details

SUS01N-05 Meanwell Power Supply 1W DC-DC Single Output Converter SUS01-05 SUS01L-05 SUS01M-05 SUS01O-05 SMD DIP YCICT

Meanwell SUS01N-05 Specifications

ORDER NO. SUS01L-05 SUS01M-05 SUS01N-05 SUS01O-05
OUTPUT DC VOLTAGE 5V
OUTPUT CURRENT RANGE 0~200mA
EFFICIENCY 73.00% 74.00% 72.00% 74.00%
SPECIFICATIONS
OUTPUT RATED POWER 1W
RIPPLE&NOISE (max.) 100mVp-p
LINE REGULATION ±1.2% for 1% input variation
LOAD REGULATION ±8.0%
VOLTAGE ACCURACY ±2.0%
SWITCHING FREQUENCY 50KHz min.
INPUT VOLTAGE RANGE 4.5-5.5V 10.8-13.2V 21.6-26.4V 43.2~52.8V
NORMAL VOLTAGE 5V 12V 24V 48V
INPUT CURRENT Full load 280mA 112mA 55mA 28mA
INPUT CURRENT No load 21mA 11mA 10mA 3mA
FILTER Capacitor type
PROTECTION Fuse recommended
PROTECTION OVERLOAD Momentary
Protection type : Broken
SHORT CIRCUIT Momentary
Protection type : Broken
ENVIRONMENT WORKING TEMP. -25 ~ +71 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE 80pF max.
EMC EMISSION Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 700khrs min. MIL-HDBK-217F(25)
DIMENSION 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
PACKING 3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton

Meanwell SUS01N-05 Features

l  Dual in line package

l  100% burn-in test

l  2 years warranty

l  1500VDC I/O isolation

l  Internal SMD technology

l  Built-in E MI filter

l  Cooling by free air convection

l  Non-conductive plastic case

l  Low cost/High reliability

l  Approvals: FCC/EAC/CE/UKCA

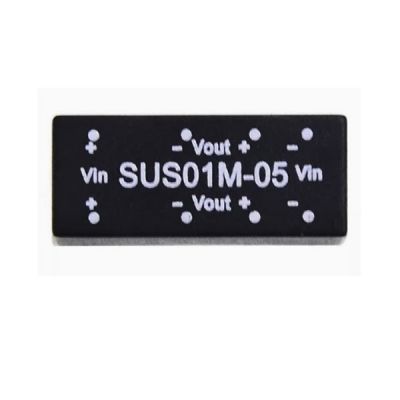

SUS01N-05 Meanwell Power Supply DC-DC Single Output Converter SUS01-05 SUS01L-05 SUS01M-05 SUS01O-05 DIP Package YCICT

Meanwell SUS01N-05 Mechanical Diagram

SUS01N-05 Meanwell Power Supply 1W DC-DC Single Output Converter SUS01-05 SUS01L-05 SUS01M-05 SUS01O-05 YCICT
