DEPARTMENTS
SUS01L-15
4.93

SUS01L-15

$4.93

Meanwell 1W DC-DC Unregulated Single Output Converter with 15V0~67mA1W100mVp-p50KHzmin.4.5-5.5V5V280mA21mA

- +
Availability:In stock
SKU Meanwell SUS01L-15
Brand Meanwell
Details

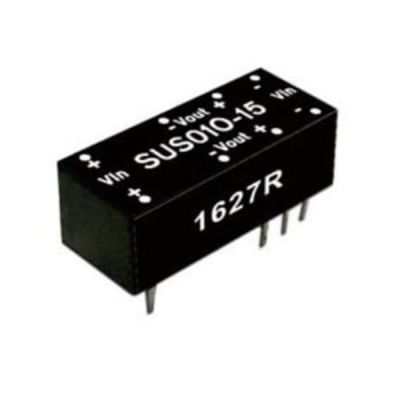

SUS01L-15 Meanwell Power Supply 1W Single Output DC-DC Converter SUS01-15 SUS01M-15 SUS01N-15 SUS01O-15 EMI SMD YCICT

Meanwell SUS01L-15 Specifications

ORDER NO. SUS01L-15 SUS01M-15 SUS01N-15 SUS01O-15
OUTPUT DC VOLTAGE 15V
OUTPUT CURRENT RANGE 0~67mA
EFFICIENCY (Typ.) 79.00% 82.00% 83.00% 83.00%
SPECIFICATIONS
OUTPUT RATED POWER 1W
RIPPLE&NOISE (max.) 100mVp-p
LINE REGULATION ±1.2% for 1% input variation
LOAD REGULATION ±8.0%
VOLTAGE ACCURACY ±2.0%
SWITCHING FREQUENCY 50KHz min.
INPUT VOLTAGE RANGE 4.5-5.5V 10.8-13.2V 21.6-26.4V 43.2~52.8V
NORMAL VOLTAGE 5V 12V% 24V 48V
INPUT CURRENT Full load 280mA 112mA 55mA 28mA
INPUT CURRENT No load 21mA 11mA 10mA 3mA
FILTER Capacitor type
PROTECTION Fuse recommended
PROTECTION OVERLOAD Momentary
Protection type : Broken
SHORT CIRCUIT Momentary
Protection type : Broken
ENVIRONMENT WORKING TEMP. -25 ~ +71 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25 ~ +105, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE 80pF max.
EMC EMISSION Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 700khrs min. MIL-HDBK-217F(25)
DIMENSION 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
PACKING 3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton

Meanwell SUS01L-15 Features

l  2 years warranty

l  Built-in EMI filter

l  100% burn-in test

l  Dual in line package

l  1500VDC I/O isolation

l  Cooling by free air convection

l  Internal SMD technology

l  Non-conductive plastic case

l  Low cost/High reliability

l  Approvals: FCC/EAC/CE/UKCA

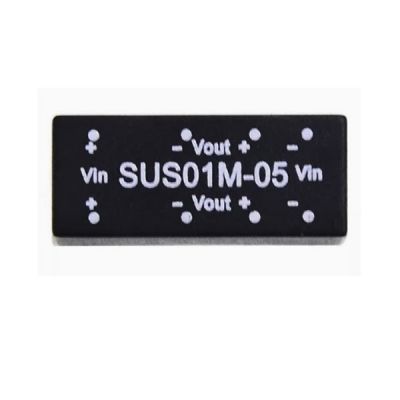

SUS01L-15 Meanwell Power Supply Single Output DC-DC Converter SUS01-15 SUS01M-15 SUS01N-15 SUS01O-15 module type YCICT

Meanwell SUS01L-15 Mechanical Diagram

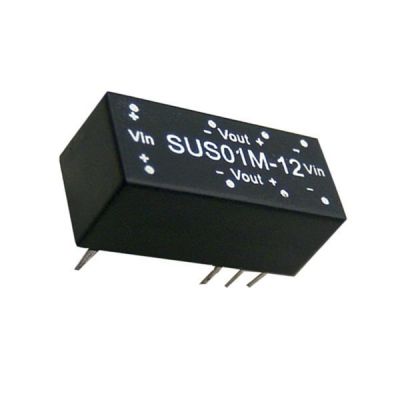

SUS01L-15 Meanwell Power Supply Single Output DC-DC Converter SUS01-15 SUS01M-15 SUS01N-15 SUS01O-15 SMD DIP EMI YCICT
