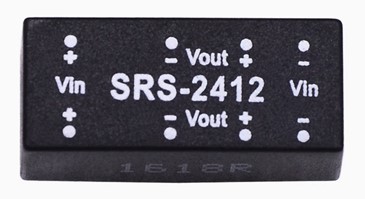

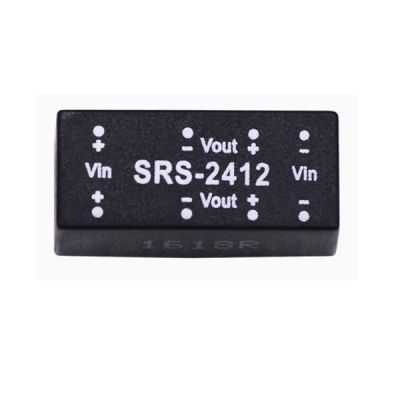

SRS-2412
4.44
Details
Meanwell SRS-2412 Specifications
| ORDER NO. | SRS-0512 | SRS-1212 | SRS-2412 | SRS-4812 | |
| OUTPUT | DC VOLTAGE | 12V | |||
| CURRENT RANGE | 0~42mA | ||||
| EFFICIENCY (Typ.) | 60.00% | ||||
| SPECIFICATIONS | |||||
| OUTPUT | RATED POWER | 0.5W | |||
| RIPPLE&NOISE (max.) | 100mVp-p | ||||
| LINE REGULATION | ±1.0% | ||||
| LOAD REGULATION | ±1.0% | ||||
| VOLTAGE ACCURACY | ±2.0% (Typ.) ±3.0% (max.) | ||||
| SWITCHING FREQUENCY | 50KHz min. | ||||
| INPUT | VOLTAGE RANGE | 4.5-5.5V | 10.8-13.2V | 21.6-26.4V | 43.2~52.8V |
| NORMAL VOLTAGE | 5V | 12V | 24V | 48V | |
| INPUT CURRENT Full load | 175mA | 72mA | 36mA | 19mA | |
| INPUT CURRENT No load | 37mA | 15mA | 9mA | 5mA | |
| FILTER | Capacitor type | ||||
| PROTECTION | Fuse recommended | ||||
| PROTECTION | OVERLOAD | 150~350% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| SHORT CIRCUIT | All output equipped with short circuit | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | WORKING TEMP. | -25~+71℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -25~+105℃, 10~95% RH | ||||
| TEMP. COEFFICIENT | ±0.03% /℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| ISOLATION CAPACITANCE | 80pF max. | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020 | ||||
| OTHERS | MTBF | 600khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H) | ||||
| PACKING | 3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton | ||||
Meanwell SRS-2412 Features
l Internal SMD technology
l Cooling by free air convection
l Non-conductive plastic case
l Approvals: FCC/EAC/CE/UKCA
l Low cost/High reliability
l Dual in line package
l Built-in EMI filter
l 2 years warranty
l 100% burn-in test
l 1500VDC I/O isolation
Meanwell SRS-2412 Mechanical Diagram
