SRS-12
4.41

SRS-12

As low as $4.41

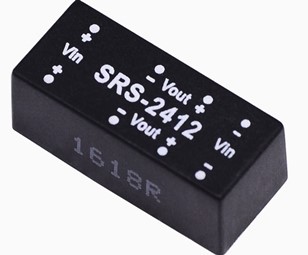

Meanwell 0.5W DC-DC Regulated Single Output Converter

- +
Availability:In stock
SKU Meanwell SRS-12
Brand Meanwell
Details

SRS-12 Meanwell Power Supply 0.5W DC-DC Single Output Converter SRS-0512 SRS-1212 SRS-2412 SRS-4812 DIP package YCICT

Meanwell SRS-12 Series Model Specifications

ORDER NO. SRS-0512 SRS-1212 SRS-2412 SRS-4812
OUTPUT DC VOLTAGE 12V
CURRENT RANGE 0~42mA
EFFICIENCY (Typ.) 60.00%
SPECIFICATIONS
OUTPUT RATED POWER 0.5W
RIPPLE&NOISE (max.) 100mVp-p
LINE REGULATION ±1.0%
LOAD REGULATION ±1.0%
VOLTAGE ACCURACY ±2.0% (Typ.) ±3.0% (max.)
SWITCHING FREQUENCY 50KHz min.
INPUT VOLTAGE RANGE 4.5-5.5V 10.8-13.2V 21.6-26.4V 43.2~52.8V
NORMAL VOLTAGE 5V 12V 24V 48V
INPUT CURRENT Full load 175mA 72mA 36mA 19mA
INPUT CURRENT No load 37mA 15mA 9mA 5mA
FILTER Capacitor type
PROTECTION Fuse recommended
PROTECTION OVERLOAD 150~350% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25~+71 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25~+105, 10~95% RH
TEMP. COEFFICIENT ±0.03% / (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE 80pF max.
EMC EMISSION Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 600khrs min. MIL-HDBK-217F (25)
DIMENSION 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
PACKING 3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton

Meanwell SRS-12 Series Features

l  Cooling by free air convection

l  Non-conductive plastic case

l  Approvals: FCC/EAC/CE/UKCA

l  Built-in EMI filter

l  Dual in line package

l  2 years warranty

l  100% burn-in test

l  1500VDC I/O isolation

l  Low cost/High reliability

l  Internal SMD technology

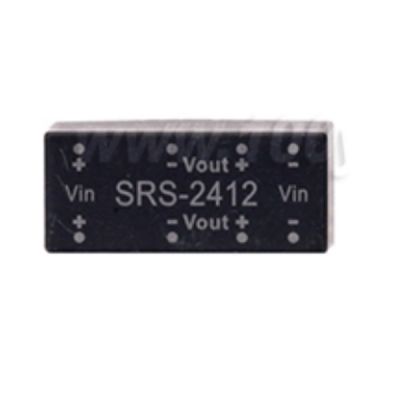

SRS-12 Meanwell Power Supply 0.5W DC-DC Single Output Converter SRS-0512 SRS-1212 SRS-2412 SRS-4812 SMD EMI YCICT

Meanwell SRS-12 Series Mechanical Diagram

SRS-12 Meanwell Power Supply 0.5W DC-DC Regulated Single Output Converter SRS-0512 SRS-1212 SRS-2412 SRS-4812 YCICT
