SRS-0515
4.46

SRS-0515

$4.46

Meanwell 0.5W DC-DC Regulated Single Output Converter with 15V0~34mA0.5W100mVp-p50KHz min.

- +
Availability:In stock
SKU Meanwell SRS-0515
Brand Meanwell
Details

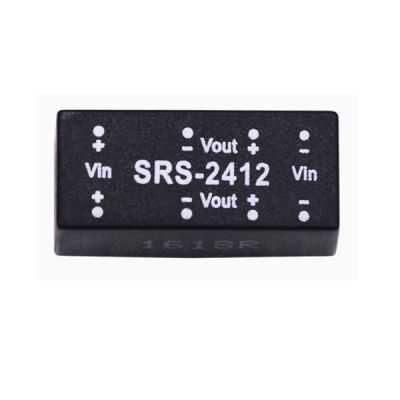

SRS-0515 Meanwell Power Supply 0.5W DC-DC Single Output Converter SRS-15 SRS-1215 SRS-2415 SRS-4815 DIP Package YCICT

Meanwell SRS-0515 Specifications

ORDER NO. SRS-0515 SRS-1215 SRS-2415 SRS-4815
OUTPUT DC VOLTAGE 15V
CURRENT RANGE 0~34mA
EFFICIENCY (Typ.) 60.00%
SPECIFICATIONS
OUTPUT RATED POWER 0.5W
RIPPLE&NOISE (max.) 100mVp-p
LINE REGULATION ±1.0%
LOAD REGULATION ±1.0%
VOLTAGE ACCURACY ±2.0% (Typ.) ±3.0% (max.)
SWITCHING FREQUENCY 50KHz min.
INPUT VOLTAGE RANGE 4.5-5.5V 10.8-13.2V% 21.6-26.4V 43.2~52.8V
NORMAL VOLTAGE 5V 12V% 24V 48V
INPUT CURRENT Full load 175mA 72mA 36mA 19mA
INPUT CURRENT No load 37mA 15mA 9mA 5mA
FILTER Capacitor type
PROTECTION Fuse recommended
PROTECTION OVERLOAD 150~350% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25~+71 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -25~+105, 10~95% RH
TEMP. COEFFICIENT ±0.03% / (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE 80pF max.
EMC EMISSION Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 600khrs min. MIL-HDBK-217F (25)
DIMENSION 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H)
PACKING 3.1g ; 22pcs/per tube, 3080pcs/140 tube/per carton

Meanwell SRS-0515 Features

l  Approvals: FCC/EAC/CE/UKCA

l  Cooling by free air convection

l  Non-conductive plastic case

l  Low cost/High reliability

l  1500VDC I/O isolation

l  Internal SMD technology

l  Dual in line package

l  Built-in EMI filter

l  2 years warranty

l  100% burn-in test

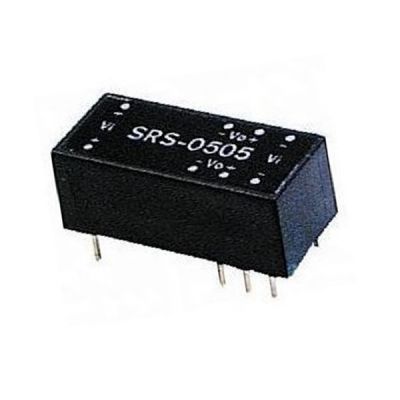

SRS-0515 Meanwell Power Supply 0.5W DC-DC Single Output Converter SRS-15 SRS-1215 SRS-2415 SRS-4815 low cost YCICT

Meanwell SRS-0515 Mechanical Diagram

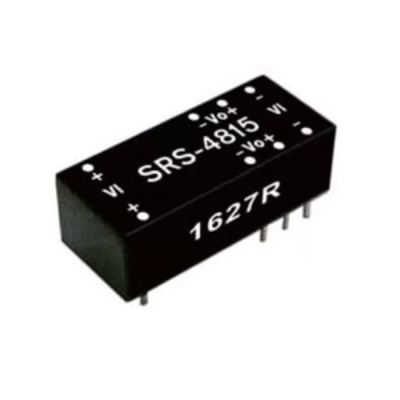

SRS-0515 Meanwell Power Supply 0.5W DC-DC Regulated Single Output Converter SRS-15 SRS-1215 SRS-2415 SRS-4815 YCICT
