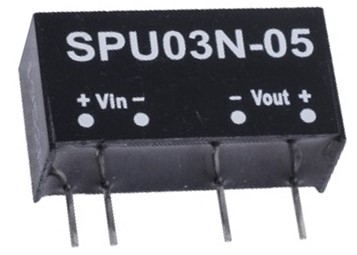

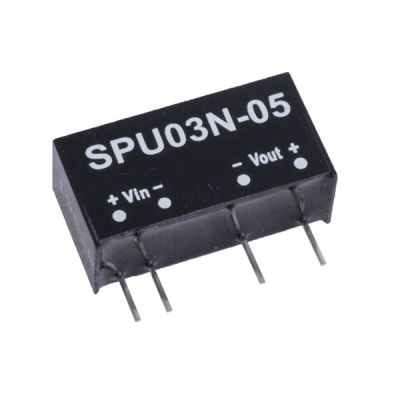

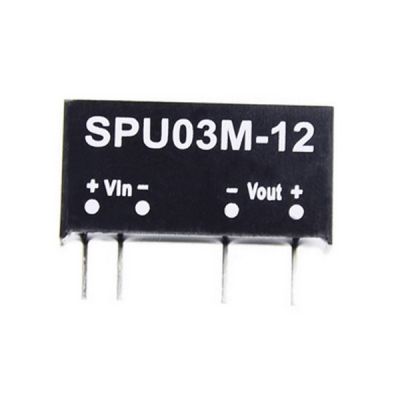

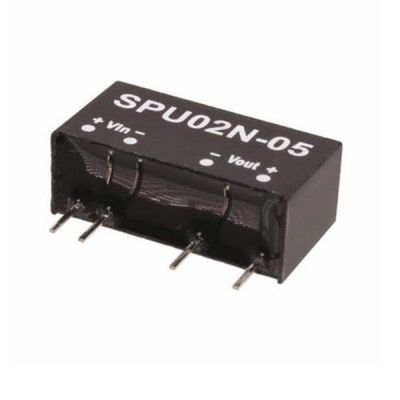

SPU03N-05
6.39
Details
Meanwell SPU03N-05 is 3W DC-DC Single Output Converter with 5V60~600mA3W80mVp-p60KHz min.21.6~26.4V24V. At the same time, the item features unregulated, module type and single in line package. The main highlights are as following: international standard pins, high efficiency reaching up to 88%, wide working temperature range -40~+90℃, Internal SMD technology, Built-in EMI filter, and short circuit protection, etc. Furthermore, SPU03-05 models account for different output voltage 5V, 12V, 15V. In view of its long lifespan, low cost and high reliability, Meanwell SPU03N-05 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SPU03N-05 Specifications
| ORDER NO. | SPU03L-05 | SPU03M-05 | SPU03N-05 | |
| OUTPUT | DC OUTPUT VOLTAGE | 5V | ||
| CURRENT RANGE | 60~600mA | |||
| EFFICIENCY (Typ.) | 82.00% | 83.00% | 83.00% | |
| RATED POWER | 3W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | |||
| LINE REGULATION | ±1.2% for 1% input variation | |||
| LOAD REGULATION | ±8.0% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY | 60KHz min. | |||
| INPUT | VOLTAGE RANGE | 4.5~5.5V | 10.8~13.2V | 21.6~26.4V |
| NORMAL VOLTAGE | 5V | 12V | 24V | |
| INPUT CURRENT Full load | 740mA | 305mA | 155mA | |
| INPUT CURRENT No load | 60mA | 25mA | 15mA | |
| FILTER | Capacitor type | |||
| PROTECTION | Fuse recommended | |||
| PROTECTION | OVERLOAD | Momentary | ||
| Protection type : Broken | ||||
| SHORT CIRCUIT | Momentary | |||
| Protection type : Broken | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +105℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03% /℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| ISOLATION CAPACITANCE | 80pF max | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 700khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 19.6*7.5*10.2mm or 0.77"*0.30"*0.40" inch (L*W*H) | |||
| PACKING | 2.9g ; 25pcs/per tube, 4000pcs/160 tube/per carton | |||
Meanwell SPU03N-05 Features
l Built-in EMI filter
l 2 years warranty
l Single in line package
l 3000VDC I/O isolation
l Internal SMD technology
l Protection: Short circuit
l Cooling by free air convection
l Non-conductive plastic case
l 100% full load burn-in test
l Low cost/High reliability
Meanwell SPU03N-05 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
