SPU01N
2.31

SPU01N

As low as $2.31

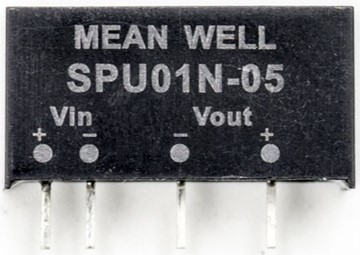

Meanwell 1W SIP Package DC-DC Unregulated Converter

- +
Availability:In stock
SKU Meanwell SPU01N
Brand Meanwell
Details

Meanwell SPU01N Series is 1W isolated and unregulated DC-DC converter. At the same time, the unit features module type and SIP6 package. The main highlights are as following: international standard pins, high efficiency reaching up to 84%, wide working temperaturerange -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without extra components, short circuit protection, etc. Apart from them, the models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its high reliability, excellent quality, and competitive price, Meanwell SPU01N Series is suitable for all kinds of systems, such as industrial control, telecommunicationfield, distributed power architecture, and so on.

SPU01N Meanwell Power Supply 1W Unregulated DC-DC Converter SIP Package SPU01N-05 SPU01N-12 SPU01N-15 SPU01 DPU01 YCICT

Meanwell SPU01N Series Encoding

SPU Series Name S: Single Output
D: Dual Output
01 Rated Wattage
N Input Voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N: 21.6-26.4Vdc
12 5V/12V/15Vdc ±5V/±12V/±15Vdc

Meanwell SPU01N Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SPU01N-05 24V (21.6~26.4V) 7mA 52mA 5V 0-200mA 80% 220μF
SPU01N-12 7mA 52mA 12V 0-84mA 81% 220μF
SPU01N-15 8mA 52mA 15V 0-67mA 80% 220μF
INPUT VOLTAGE RANGE L: 4.5 ~ 5.5Vdc , M: 10.8 ~ 13.2Vdc , N: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.) 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 500mA Slow-Blow Type for all models
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±3%
RATED POWER 1W
RIPPLE & NOISE 75mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION 10%
SWITCHING FREQUENCY (Typ.) 24Vin: 75KHz, other: 100KHz
PROTECTION SHORT CIRCUIT 1 second max
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90(Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03% / (0 ~ 85)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1500Khrs MIL-HDBK-217F (25)
DIMENSION 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 5/12Vin models: 2.3g ; 16pcs/per tube,2944pcs/184 tube/per carton
24Vin models: 2.7g ; 15pcs/per tube,2205pcs/147 tube/per carton

Meanwell SPU01N Series Features

l  Comply to BS EN/EN55032 radiated Class A without additional components

l  SIP6 package with industry standard pinout

l  Operating temperature range -40~+90℃

l  Protection: Short circuit

l  High efficiency up to 84%

l  1.5KVDC l/O isolation

l  3 years warranty

l  Low cost

SPU01N Meanwell Power Supply 1W DC-DC Converter SIP Package SPU01N-05 SPU01N-12 SPU01N-15 SPU01 DPU01 YCICT

Meanwell SPU01N Series Applications

l  Analyzer

l  Detector

l  Instrument

l  Data switch

l  Wireless network

l  Industrial control facility

l  Telecom/datacom system

SPU01N Meanwell Power Supply 1W DC-DC Unregulated Converter SIP6 SPU01N-05 SPU01N-12 SPU01N-15 SPU01 DPU01 YCICT

Meanwell SPU01N Series Mechanical Diagram

SPU01N Meanwell Power Supply 1W DC-DC Unregulated Converter SPU01N-05 SPU01N-12 SPU01N-15 low cost SPU01 DPU01 YCICT
