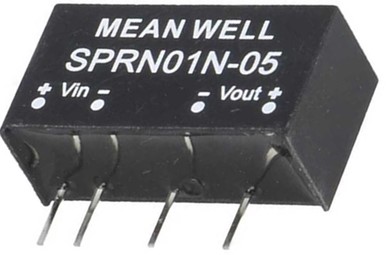

SPRN01N
4.87
Details
Meanwell SPRN01N Series is 1W isolated and regulated DC-DC converter. The product features module type and SIP6 package. At the same time, the main highlights are as following: international standard pins, wide working temperature range -40~+90℃, 1.5KVDCI/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. Apart from them, SPRN01&DPRN01 models account for different input voltage 5V/12V/24V/48V -5~+10%, and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs. In order to continuously improve the competitiveness of DC-DC converter products, Meanwell redesigns a new generation of single-output SPRN01 Series and expands dual-output DPRN01 Series for old model. SPRN01 can be directly used as a substitute for SPR01, and input/output pins of SPRN01 follow the original SPR01 Series. Considering its long lifespan, good quality and excellent performance, Meanwell SPRN01N Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed powerarchitecture, and so on.
Meanwell SPRN01N Series Encoding
| SPRN | Series Name | S: Single Output |
| D: Dual Output | ||
| 01 | Rated Wattage | |
| N | Input Voltage (L:4.75-5.5Vdc, M:11.4-13.2Vdc, N: 22.8-26.4Vdc O: 45.6-52.8Vdc) | |
| 12 | 5V/12V/15Vdc ±12V/±15Vdc | |
Meanwell SPRN01N Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SPRN01N-05 | Normal 24V (22.8~26.4V) | 10mA | 65mA | 5V | 0-200mA | 67% | 100μF |
| SPRN01N-12 | 10mA | 60mA | 12V | 0-84mA | 72% | 100μF | |
| SPRN01N-15 | 10mA | 60mA | 15V | 0-67mA | 73% | 100μF | |
| INPUT | VOLTAGE RANGE | L: 4.75~5.5Vdc, M: 11.4~13.2Vdc, N: 22.8~26.4Vdc, O: 45.6~52.8Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models: 9Vdc; 12Vin models: 18Vdc; 24Vin models: 30Vdc; 48Vin models: 60Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA | ||||||
| INTERNAL POWER DISSIPATION | 600mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±3.0% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±1.0% | ||||||
| SWITCHING FREQUENCY (Typ.) | 110KHz | ||||||
| PROTECTION | SHORT CIRCUIT | SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max. | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +110℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.05% / ℃ (0 ~ 71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max. | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class B | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, ±8KV air, Level 2, ±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV at power, Level 2, 0.5KV at signal | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1,1A/m | |||||
| OTHERS | MTBF | 1000Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 19.6*7.1*10.14mm (0.77*0.28*0.40 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton | ||||||
Meanwell SPRN01N Series Features
l SIP6 package with industry standard pinout
l Comply to BS EN/EN55032 radiated Class B without additional components
l Operating temperature range -40~+90℃
l Protection: Short circuit
l 1.5KVDC Il/O isolation
l 3 years warranty
l Low cost
Meanwell SPRN01N Series Applications
l Analyzer
l Detector
l Data switch
l Instrument
l Wireless network
l Industrial control facility
l Telecom/Datacom system
Meanwell SPRN01N Series Mechanical Diagram
