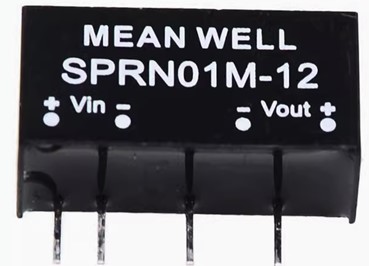

Meanwell 1W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell SPRN01M
Brand Meanwell
Details

Meanwell SPRN01M Series is 1W isolated and regulated DC-DC converter. The unit highlights module type and SIP6 package. Meanwhile, the main features are as following: international standard pins, wide working temperature range -40~+90℃, 1.5KVDCI/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. What's more, SPRN01&DPRN01 models account for different input voltage 5V/12V/24V/48V -5~+10%, and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs. In order to continuously improve the competitiveness of DC-DC converter products, Meanwell redesigns a new generation of single-output SPRN01 series and expands dual-output DPRN01 series for old SPR01 model. SPRN01 can be directly used as a substitute for SPR01, and input/output pins of SPRN01 follow the original SPR01 series. Considering its long lifespan, good quality and excellent performance, Meanwell SPRN01M Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed powerarchitecture, and so on.

SPRN01M Meanwell Power Supply 1W DC-DC Converter SIP6 SPRN01M-05 SPRN01M-12 SPRN01M-15 Single output DPRN01 YCICT

Meanwell SPRN01M Series Encoding

SPRN Series Name S: Single Output
D: Dual Output
01 Rated Wattage
M Input Voltage (L:4.75-5.5Vdc, M:11.4-13.2Vdc, N: 22.8-26.4Vdc O: 45.6-52.8Vdc)
12 5V/12V/15Vdc ±12V/±15Vdc

Meanwell SPRN01M Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SPRN01M-05 Normal 12V (11.4~13.2V) 15mA 116mA 5V 0-200mA 72% 100μF
SPRN01M-12 18mA 116mA 12V 0-84mA 72% 100μF
SPRN01M-15 18mA 115mA 15V 0-67mA 73% 100μF
INPUT VOLTAGE RANGE L: 4.75~5.5Vdc, M: 11.4~13.2Vdc, N: 22.8~26.4Vdc, O: 45.6~52.8Vdc
SURGE VOLTAGE (100ms max.) 5Vin models: 9Vdc; 12Vin models: 18Vdc; 24Vin models: 30Vdc; 48Vin models: 60Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA
INTERNAL POWER DISSIPATION 600mW
OUTPUT VOLTAGE ACCURACY ±3.0%
RATED POWER 1W
RIPPLE & NOISE 75mVp-p
LINE REGULATION ±1.0%
LOAD REGULATION ±1.0%
SWITCHING FREQUENCY (Typ.) 110KHz
PROTECTION SHORT CIRCUIT SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max.
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90 (Refer to "Derating Curve")
CASE TEMPERATURE +110 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.05% / (0 ~ 71)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 80pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class B
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV at power, Level 2, 0.5KV at signal
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1,1A/m
OTHERS MTBF 1000Khrs MIL-HDBK-217F (25)
DIMENSION 19.6*7.1*10.14mm (0.77*0.28*0.40 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton

Meanwell SPRN01M Series Features

l  Low cost

l  3 years warranty

l  Protection: Short circuit

l  1.5KVDC Il/O isolation

l  Operating temperature range -40~+90℃

l  SIP6 package with industry standard pinout

l  Comply to BS EN/EN55032 radiated Class B without additional components

SPRN01M Meanwell Power Supply 1W DC-DC Regulated Converter SPRN01M-05 SPRN01M-12 SPRN01M-15 Low cost DPRN01 YCICT

Meanwell SPRN01M Series Applications

l  Instrument

l  Analyzer

l  Detector

l  Data switch

l  Wireless network

l  Telecom/Datacom system

l  Industrial control facility

SPRN01M Meanwell Power Supply 1W DC-DC Converter SIP6 Package SPRN01M-05 SPRN01M-12 SPRN01M-15 Low cost DPRN01 YCICT

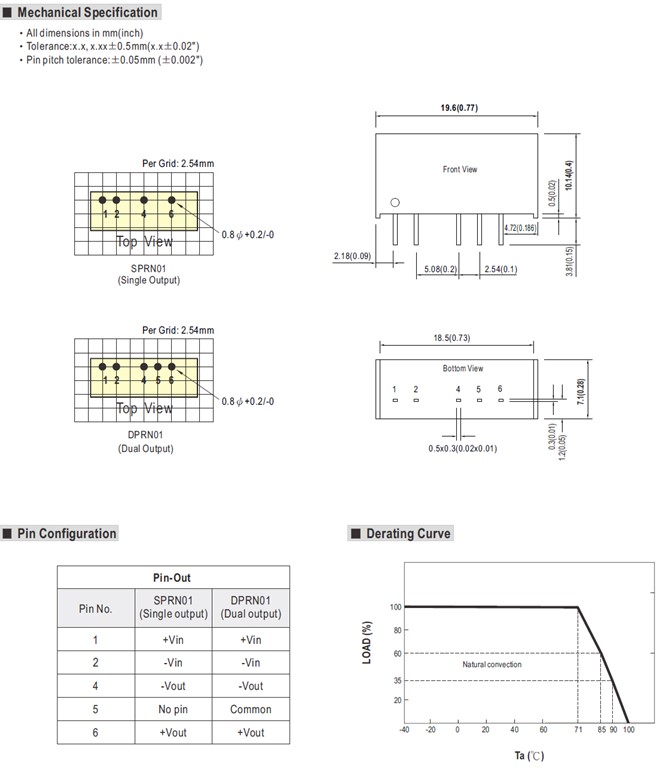

Meanwell SPRN01M Series Mechanical Diagram

SPRN01M Meanwell Power Supply 1W DC-DC Converter SIP Package SPRN01M-05 SPRN01M-12 SPRN01M-15 Single output DPRN01 YCICT
