SPRN01M-12
4.86
Details

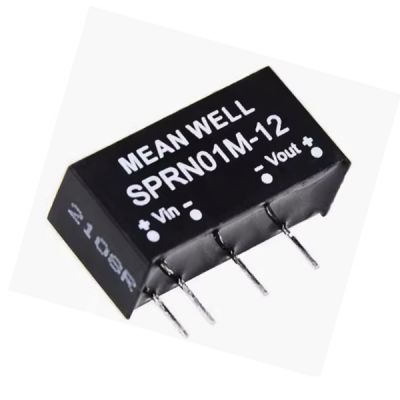

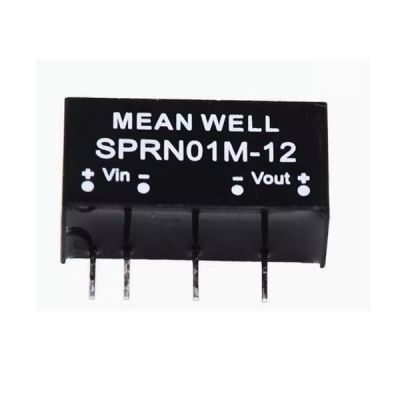

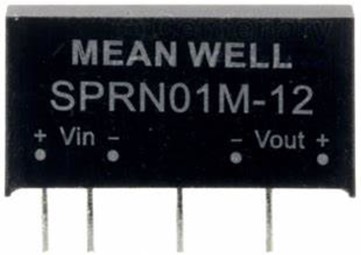

Meanwell SPRN01M-12 is 1W isolated and regulated DC-DC converter with 18mA116mA12V0-84mA. The product stands out with module type and SIP6 package. At the same time, the main features are as following: international standard pins, wide working temperature range -40~+90℃, 1.5KVDCI/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without extra components, short circuit protection, etc. Additionally, SPRN01&DPRN01 models account for different input voltage 5V/12V/24V/48V -5~+10%, and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs. In order to continuously improve the competitiveness of DC-DC converter products, Meanwell redesigns a new generation of single-output SPRN01 Series and expands dual-output DPRN01 Series for old SPR01 model. SPRN01 can be directly used as a substitute for SPR01, and input/output pins of SPRN01 follow the original SPR01 Series. Thanks to its long lifespan, good quality and excellent performance, Meanwell SPRN01M-12 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed powerarchitecture, and so on.
Meanwell SPRN01M-12 Encoding
| SPRN | Series Name | S: Single Output |
| D: Dual Output | ||
| 01 | Rated Wattage | |
| M | Input Voltage (L:4.75-5.5Vdc, M:11.4-13.2Vdc, N: 22.8-26.4Vdc O: 45.6-52.8Vdc) | |
| 12 | 5V/12V/15Vdc ±12V/±15Vdc | |
Meanwell SPRN01M-12 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SPRN01M-05 | Normal 12V (11.4~13.2V) | 15mA | 116mA | 5V | 0-200mA | 72% | 100μF |
| SPRN01M-12 | 18mA | 116mA | 12V | 0-84mA | 72% | 100μF | |
| SPRN01M-15 | 18mA | 115mA | 15V | 0-67mA | 73% | 100μF | |
| INPUT | VOLTAGE RANGE | L: 4.75~5.5Vdc, M: 11.4~13.2Vdc, N: 22.8~26.4Vdc, O: 45.6~52.8Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 5Vin models: 9Vdc; 12Vin models: 18Vdc; 24Vin models: 30Vdc; 48Vin models: 60Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 5Vin models: 500mA, 12Vin models: 250mA, 24Vin models: 100mA, 48Vin models: 60mA | ||||||
| INTERNAL POWER DISSIPATION | 600mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±3.0% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 75mVp-p | ||||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±1.0% | ||||||
| SWITCHING FREQUENCY (Typ.) | 110KHz | ||||||
| PROTECTION | SHORT CIRCUIT | SPRN01: Current limit protection 60 sec. max., DPRN01: 1 sec. max. | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +110℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.05% / ℃ (0 ~ 71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max. | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class B | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, ±8KV air, Level 2, ±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV at power, Level 2, 0.5KV at signal | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line, Level 2, 1KV Line ground | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1,1A/m | |||||
| OTHERS | MTBF | 1000Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 19.6*7.1*10.14mm (0.77*0.28*0.40 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 2.5g ; 25pcs/per tube, 4000pcs/160 tube/per carton | ||||||
Meanwell SPRN01M-12 Features
l SIP6 package with industry standard pinout
l Low cost
l 3 years warranty
l 1.5KVDC Il/O isolation
l Protection: Short circuit
l Operating temperature range -40~+90℃
l Comply to BS EN/EN55032 radiated Class B without additional components
Meanwell SPRN01M-12 Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Telecom/Datacom system
l Industrial control facility
Meanwell SPRN01M-12 Mechanical Diagram
