SPOL-12P
7.91
Details

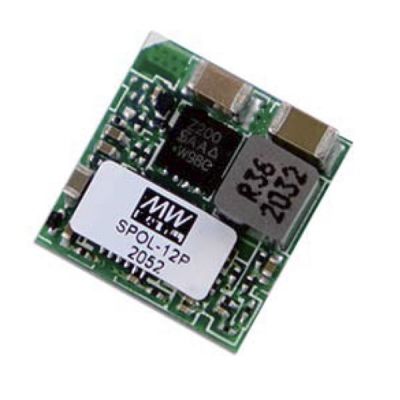

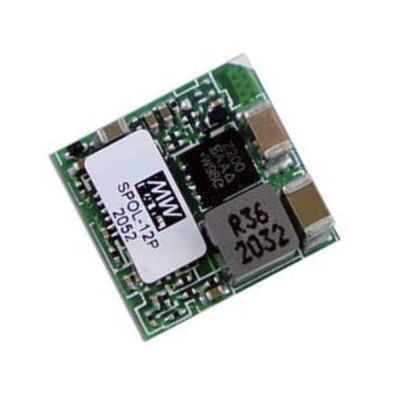

Meanwell SPOL-12P is a 12 Ampere non-isolated point-of-load DC-to-DC converter. The product outstands programmable and SMD package ideal for embedded applications. Meanwhile, the main features are as following: ultra-compact size (12.19*12.19*3. 1mm), wide input range 3~14.4Vdc and tunable output voltage from 0.6~5.5 Vdc via external resistor, wide working temperature -40~+90℃, remote ON/OFF function and short circuit protection. Due to its longevity, high efficiency and excellent reliability, Meanwell SPOL-12P is very suitable for intermediate bus architectures found in various applications such as industrial, distributed power, telecomand datacom applications.
Meanwell SPOL-12P Encoding
| SPOL | Series Name |
| 12 | Output Current (12Amp) |
| P | Remote ON/OFF Control P: Positive Logic N: Negative Logic |
Meanwell SPOL-12P Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| Vin RANGE |
Iin | Vout | Iout | ||||
| NO LOAD | FULL LOAD | ||||||
| SPOL-12□ □=P: Postive N: Negative |
Normal 12V (3 ~ 14V) |
200mA | 510mA | 6A | 12A max | 90%@5.5V | 200μF |
| 180mA | 460mA | 5.4A | 91%@5V | ||||
| 110mA | 320mA | 3.8A | 88%@3.3V | ||||
| 80mA | 250mA | 2.9A | 86%@2.5V | ||||
| 60mA | 200mA | 2.2A | 82.5%@1.8V | ||||
| 50mA | 170mA | 1.85A | 82%@1.5V | ||||
| 50mA | 150mA | 1.6A | 77%@1.2V | ||||
| 30mA | 120mA | 0.93A | 65%@0.9V | ||||
| INPUT | VOLTAGE RANGE | 3-14.4Vdc | |||||
| START-UP TIME | 30ms | ||||||
| START-UP VOLTAGE | 3.0V max | ||||||
| UNDER VOLTAGE SHUTDOWN (Typ.) | 2.6V | ||||||
| RECOMMEND EXTERNAL FUSE | 15A | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±3.0% | |||||
| RATED CURRENT | 12A | ||||||
| OUTPUT VOLTAGE TRIM | 0.6V~5.5V max | ||||||
| RATED POWER | 66W max. | ||||||
| RIPPLE & NOISE | 50mVp-p max. @Vo<1.2Vdc ; Vo>1.2Vdc 3% Vo mVp-p | ||||||
| LINE REGULATION | ±0.4% | ||||||
| LOAD REGULATION | ±0.2% | ||||||
| SWITCHING FREQUENCY | 800KHz | ||||||
| MINIMUM LOAD | No minimum load required | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous (No damage), automatic recovery | |||||
| FUNCTION | REMOTE CONTROL | Positive Power ON : Open or 1.6Vdc<=R.C<=5.5Vdc ; Power OFF: Short to GND or<=R.C<=0.6Vdc Negative Power OFF: Short or 0Vdc<=R.C<=0.6Vdc ; Power OFF: 1Vdc<=R.C<=5.5Vdc |
|||||
| POWER GOOD (P.G) | Over voltage threshold for P.G ON 116.5% Vo Over voltage threshold for P.G OFF 120% Vo Under voltage threshold for P.G ON 91% Vo P.G low sink current @P.G = 0.2V 100μA |
||||||
| ENVIRONMENT | COOLING METHOD | Force air convection | |||||
| WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 90℃) | ||||||
| VIBRATION | MIL-STD 202G ( 0~55Hz, 10G/1min period, 2hr.) | ||||||
| SAFETY&EMC | SAFETY STANDARDS | LVD BS EN/EN62368-1 approved ; EAC TP TC 004 pending | |||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A (with external components) | |||||
| Radiated | BS EN/EN55032 | Class A (with external components) | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air,±6KV contact | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2.0KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV | |||||
| OTHERS | MTBF | 1132Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | 12.19*12.19*3.10mm (0.48*0.48*0.122 inch) | ||||||

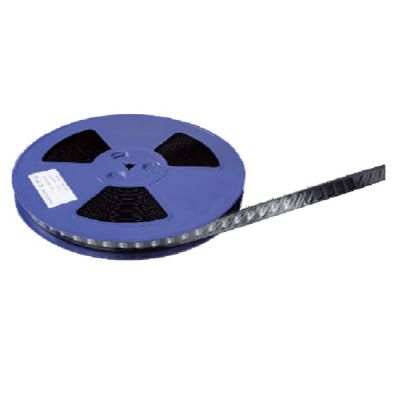

| PACKING | 0.8g MPQ Per Tube (PCS): 850 One Box G.W.: 1.11KG Max. QTY/Carton(PCS): 1700 One Carton G.W.:3KG |
||||||
Meanwell SPOL-12P Features
l Land Grid Array (LGA) surface mount
l Ultra compact size (12.19x12.19x3.1mm)
l 3~14.4Vdc wide input range
l Programmable output voltage from 0.6~5.5Vdc
l High efficiency up to 91%@12Vin
l Ultra-wide operating temperature range -40 ~ +90℃
l Protections: Short circuit (Continuous)
l No minimum load required
l 3 years warranty
l Remote ON/OFF control
Meanwell SPOL-12P Applications
l Telecom system
l Renewable energy
l Industrial control facility
l Distributed power architectures
l Intermediate bus voltage applications
l Battery management system (BMS)
l Server and storage equipment
l Field programmable gate arrary (FPGA)
Meanwell SPOL-12P Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC On Board Type | SPOL-12P |
