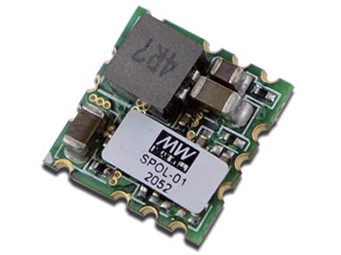

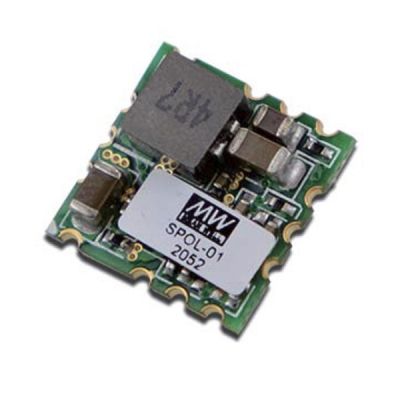

Meanwell SPOL-01 Series is a 1 Ampere non-isolated programmable point-of-load DC-to-DC converter with SMD package ideal for embedded applications. The main features include ultra-compact size (12.4*12.4*4mm), wide input range 3~14Vdc and tunable output voltage from 0.9~5.5 Vdc via external resistor, wide working temperature -40~+82℃, remote ON/OFF function and short circuit protection. Considering its longevity, high efficiency and excellent reliability, Meanwell SPOL-01 Series is very suitable for intermediate bus architectures found in various applications such as industrial, distributed power, telecom and datacom applications.
Meanwell SPOL-01 Series Encoding
| SPOL | Series Name |
| 01 | Output Current (1Amp) |
Meanwell SPOL-01 Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| Vin RANGE |
Iin | Vout | Iout | ||||
| NO LOAD | FULL LOAD | ||||||
| SPOL-01 | Normal 12V (3 ~ 14V) |
15mA | 510mA | 5.5V | 1.0A max | 90%@5.5V | 200μF |
| 460mA | 5V | 89.5%@5V | |||||
| 320mA | 3.3V | 86%@3.3V | |||||
| 250mA | 2.5V | 83%@2.5V | |||||
| 200mA | 1.8V | 79%@1.8V | |||||
| 170mA | 1.5V | 75%@1.5V | |||||
| 150mA | 1.2V | 71%@1.2V | |||||
| 120mA | 0.9V | 67%@0.9V | |||||
| INPUT | VOLTAGE RANGE | 3-14Vdc | |||||
| START-UP TIME | 6ms | ||||||
| START-UP VOLTAGE | 3.0V | ||||||
| UNDER VOLTAGE SHUTDOWN (Typ.) | 2.2V | ||||||
| RECOMMEND EXTERNAL FUSE | 2A | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±3.0% | |||||
| RATED CURRENT | 1.0A | ||||||
| OUTPUT VOLTAGE TRIM | 0.9V ~ 5.5V max | ||||||
| RATED POWER | 5.5W max. | ||||||
| RIPPLE & NOISE | 40mVp-p | ||||||
| LINE REGULATION | ±0.3% | ||||||
| LOAD REGULATION | ±0.3% | ||||||
| SWITCHING FREQUENCY | 800KHz | ||||||
| MINIMUM LOAD | No minimum load required | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous (No damage), automatic recovery | |||||
| FUNCTION | REMOTE CONTROL | Positive Power ON : Open or 1.6Vdc < R.C < 5Vdc Positive Power OFF : Short or 0Vdc < R.C <0.1Vdc |
|||||
| ENVIRONMENT | COOLING METHOD | Free-air convection | |||||
| WORKING TEMP. | -40~+82℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 90℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | LVD BS EN/EN62368-1 approved ; EAC TP TC 004 pending | |||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 | Class A (with external components) | |||||
| Radiated | BS EN/EN55032 | Class A (with external components) | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air,±6KV contact | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2.0KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV | |||||
| OTHERS | MTBF | 2600Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION (L*W*H) | 12.4*12.4*4.0mm (0.488*0.488*0.157 inch) | ||||||
| PACKING | 1g MPQ Per Tube (PCS) 650 One Box G.W. 1.04Kg Max. QTY/Carton (PCS) 1300 One Carton G.W. 2.9KG |
||||||
Meanwell SPOL-01 Series Features
l Land Grid Array (LGA) surface mount
l Ultra compact size (12.4x12.4x4mm)
l 3~14Vdc wide input range
l Programmable output voltage from 0.9~5.5Vdc
l High efficiency up to 90%@12Vin
l Remote ON/OFF control
l Ultra-wide operating temperature range -40~+82℃
l Protections: Short circuit (Continuous)
l No minimum load required
l 3 years warranty
Meanwell SPOL-01 Series Applications
l Telecom system
l Server and storage equipment
l Industrial control facility
l Distributed power architectures
l Intermediate bus voltage applications
l Renewable energy
l Battery management system (BMS)
l Field programmable gate arrary (FPGA)

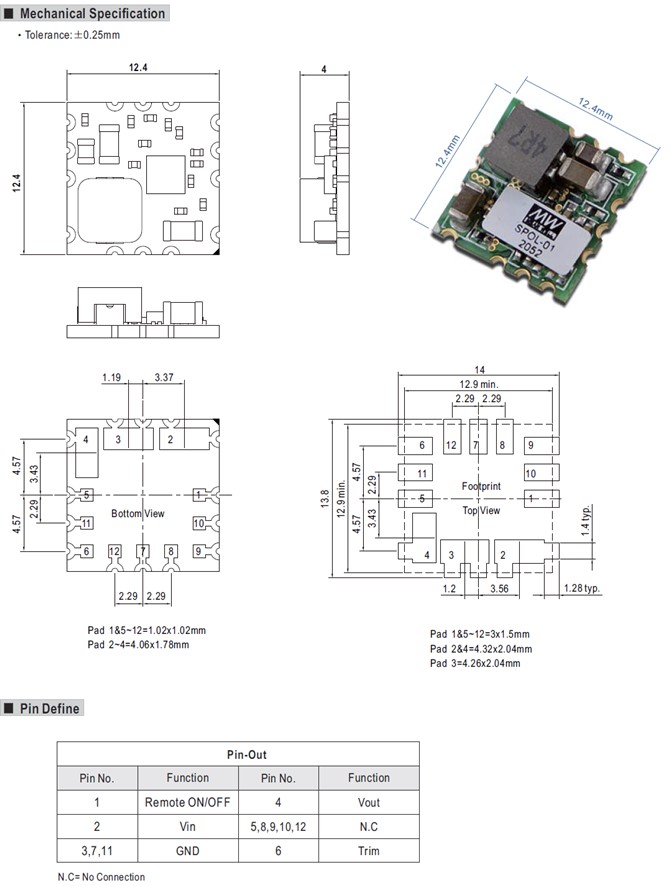

Meanwell SPOL-01 Series Mechanical Diagram
