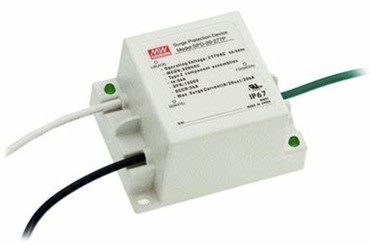

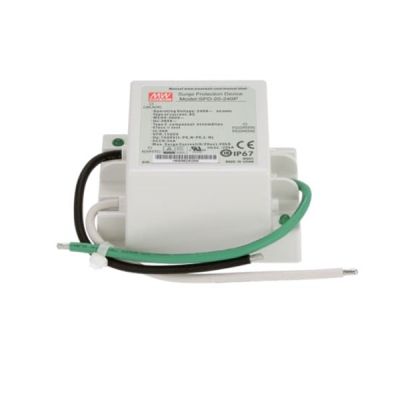

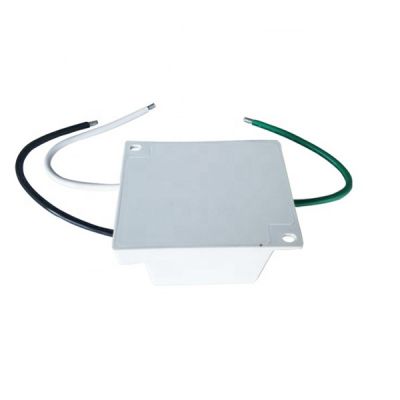

SPD-20
12.14
Details
Meanwell SPD-20 Series Model Specifications
| Model | SPD-20-240P | SPD-20-277P |
| OPERATING VOLTAGE | 240VAC 50/60Hz | 277VAC 50/60Hz |
| MCOV(MAX. CONTINUOUS OPERATING VOLTAGE) | 300VAC | 320VAC |
| UC(MAX. CONTINUOUS OPERATING VOLTAGE) | 300VAC | ---- |
| VPR (VOLTAGE PROTECTION RATING) | 1500V(L-FG,N-FG,L-N) | |
| UP (VOLTAGE PROTECTION LEVEL) | 1500V(L-PE,N-PE,L-N) | --- |
| IN (NOMINAL DISCHARGE CURRENT) | 5kA | |
| MAX. SURGE CURRENT (8/20us) | 20kA | |
| Imax. (MAX. DISCHARGE CURRENT) | 20kA | --- |
| SCCR (SHORT CIRCUIT CURRENT RATING) | 5kA | |
| SHORT-CIRCUIT WITHSTAND | 1.5kA | --- |
| RESPONSE TIME | <25ns | |
| WITHSTAND | 1600VAC 1 minutes | |
| OPERATING TEMPERATURE | -40~ +70℃ | |
| SAFETY STANDARDS | UL1449 (Third Edition),CS22.2 NO.8,BS EN/EN61643-11(only SPD-20-240P), EAC TP TC 004 approved | |
| MTBF | 4508.6K hrs min. Telcordia SR-332 (Bellcore) ; 7162.4K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 90*70*50mm (L*W*H) | |
| PACKING | 0.39Kg; 18pcs/8Kg/0.84CUFT | |
Meanwell SPD-20 Series Features
l Type 2 component assemblies
l Line to Ground&Line to Line protected
l Parallel(3 wires) connection style
l LED status indicator
l Suitable for LED driver surge protection
l IP67 design for indoor or outdoor installations
l 10KV surge protection capability

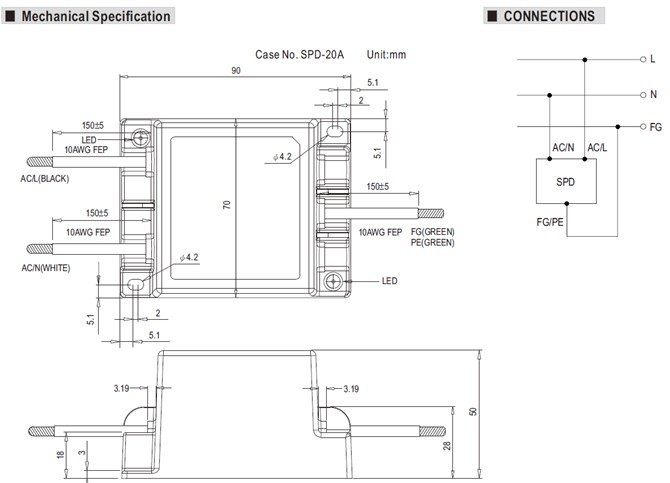

Meanwell SPD-20 Series Mechanical Diagram
