SPD-10-320S
11.04
Details

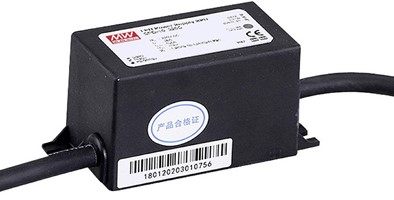

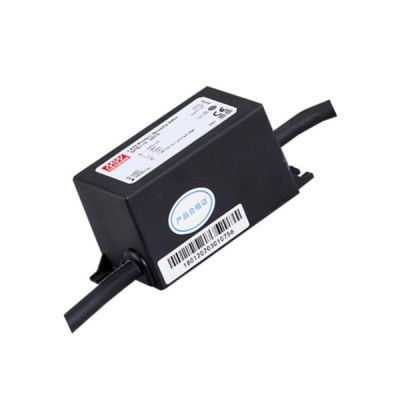

Meanwell SPD-10-320S Series is mainly composed of MOV, GDT and flame retardant shells, which have flame retardant and overheat (thermal melting) protection. The product is suitable for the second and third level surge protection of low-voltage power supply systems and LED electrical equipment. SPD-10-320S could greatly reduce the impact of lightning strikes and high-voltage surges on the lamps, and therefore effectively extend the service life of the lamps.
Meanwell SPD-10-320S Series Encoding
| SPD | Series Name |
| 10 | Maximum discharge current |
| 320S | 120-320VAC |
Meanwell SPD-10-320S Series Model Specifications
| Model | SPD-10-320S |
| OPERATING VOLTAGE | 120 ~ 320VAC 50/60Hz |
| MCOV/UC (MAX. CONTINUOUS OPERATING VOLTAGE | 320VAC |
| CONTINUOUS CURRENT (max.) | 5A |
| U (VOLTAGE PROTECTION LEVEL) | L-N: 1200V L-G/PE: 1500V N-G/PE: 1500V |
| I (NOMINAL DISCHARGE CURRENT) | 5kA, 8/20μs |
| Imax (MAX. DISCHARGE CURRENT) | 10kA, 8/20μs |
| OPERATING TEMPERATURE | -40 ~ +70℃ |
| SAFETY STANDARDS | Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005 |
| DIMENSION | 85*37*40 (L*W*H) |
| PACKING | 0.16Kg/Unit ; 10Kg/carton (60pcs) |
Meanwell SPD-10-320S Series Features
l Series connection style
l Line to Ground & Line to Line protected
l 10kA maximum discharge current (Imax), 8/20us
l Thermally protected
l Double insulation cable wire
l LED status indicator
l IP67 design for indoor or outdoor installations
l Suitable for LED driver surge protection with class l insulation
l 10KV surge protection capability
Meanwell SPD-10-320S Series Applications
l Outdoor and commercial LED Lighting
l Roadway lighting
l Traffic lighting
l Digital signage
l Wall wash lighting
l Parking garage/lot lighting
l Flood lighting
l Tunnel lighting
l Street lighting

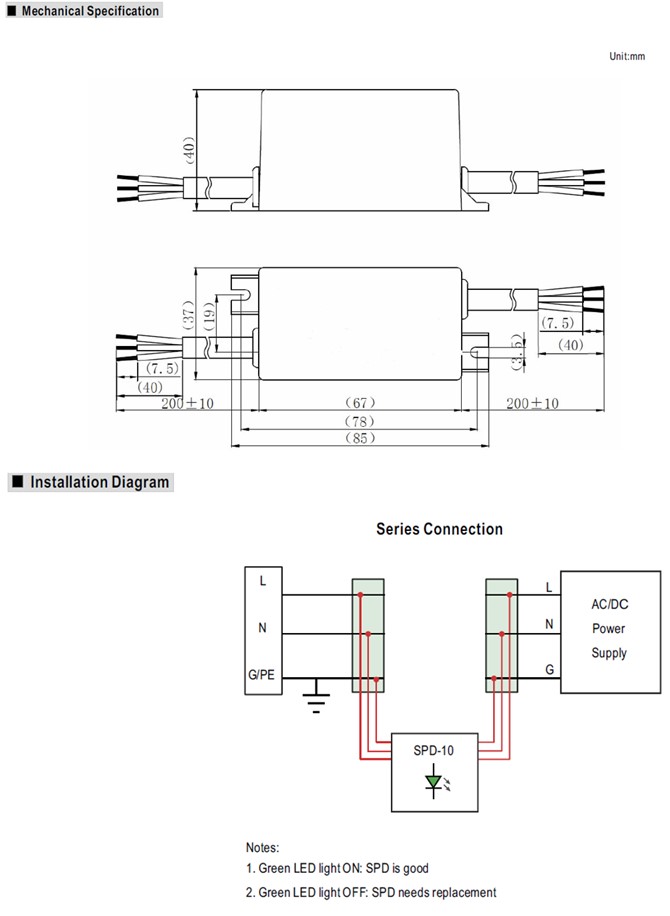

Meanwell SPD-10-320S Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
