Meanwell 6W SIP Package DC-DC Regulated Converter with 3mA155mA3.3V0-1500mA

- +
Availability:In stock
SKU Meanwell SPBW06G-03
Brand Meanwell
Details

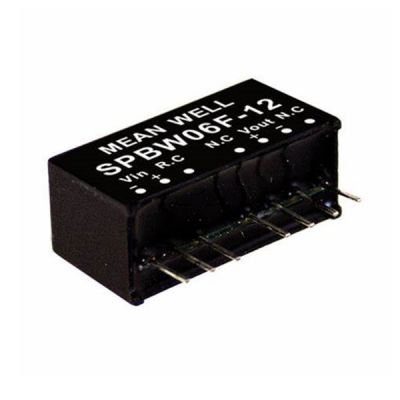

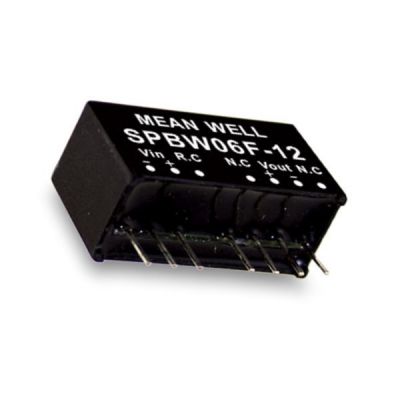

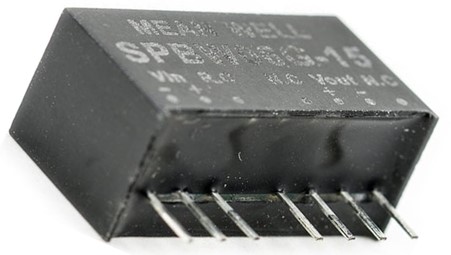

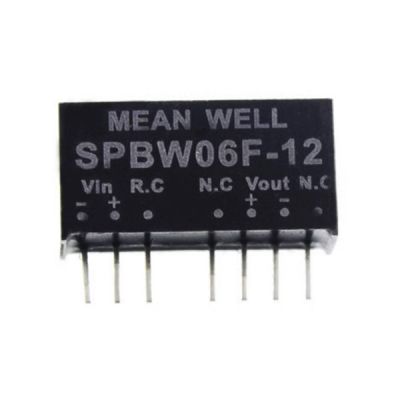

Meanwell SPBW06G-03 is 6W isolated and regulated DC-DC converter with 3mA155mA3.3V0-1500mA. At the same time, the model outstands module type and SIP8 package. The main features are as following: international standard pins, high efficiency up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. In addition, SPBW06G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Due to its long lifespan, good quality and high efficiency. Meanwell SPBW06G-03 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

SPBW06G-03 Meanwell power supply 6W DC-DC Regulated Converter SIP SPBW06G SPBW06G-05 SPBW06G-12 SPBW06G-15 DPBW06 YCICT

Meanwell SPBW06G-03 Encoding

SPBW Series Name S: Single Output
D: Dual Output
06 Rated Wattage
G Input voltage (F: 9~36Vdc, G: 18~75Vdc)
03 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell SPBW06G-03 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SPBW06G-03 48V (18~75V) 3mA 155mA 3.3V 0-1500mA 85% 4700μF
SPBW06G-05 3mA 150mA 5V 0-1200mA 88% 2200μF
SPBW06G-12 3mA 145mA 12V 0-500mA 88% 1100μF
SPBW06G-15 5mA 145mA 15V 0-400mA 87% 470μF
INPUT VOLTAGE RANGE F:9~36Vdc, G:18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models: 50Vdc, 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 6W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.2%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 580KH
PROTECTION SHORT CIRCUIT Protection type: Continuous, automatic recovery
OVERLOAD Protection type: Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~65)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 50pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1850Khrs MIL-HDBK-217F (25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated
PACKING 4.5g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell SPBW06G-03 Features

l  SIP8 package with industry standard pinout

l  4:1 ultrawide input range

l  3 years warranty

l  Remote ON/OFF control

l  1.5KVDC I/O isolation

l  High efficiency up to 89%

l  No minimum load required

l  Operating temperature range -40~+85℃

l  Protections: Short circuit (Continuous)/Overload
