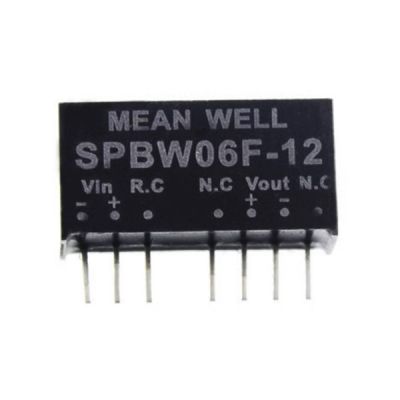

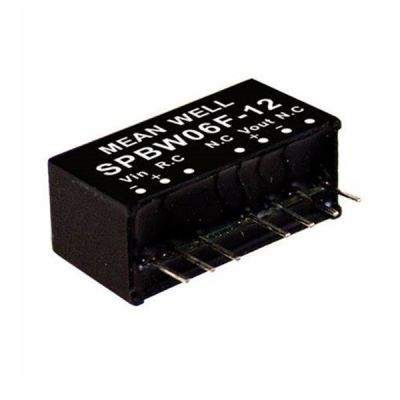

Meanwell 6W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell SPBW06F
Brand Meanwell
Details

Meanwell SPBW06F Series is 6W isolated and regulated DC-DC converter. The product highlights module type and SIP8 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. In addition, SPBW06F models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its long lifespan, good quality and high efficiency. Meanwell SPBW06F Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

SPBW06F Meanwell power supply 6W DC-DC Regulated Converter SPBW06F-03 SPBW06F-05 SPBW06F-12 SPBW06F-15 DPBW06 YCICT

Meanwell SPBW06F Series Encoding

SPBW Series Name S: Single Output
D: Dual Output
06 Rated Wattage
F Input voltage (F: 9~36Vdc, G: 18~75Vdc)
12 Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc)

Meanwell SPBW06F Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SPBW06F-03 24V (9~36V) 4mA 310mA 3.3V 0-1500mA 81% 4700μF
SPBW06F-05 5mA 298mA 5V 0-1200mA 85% 2200μF
SPBW06F-12 5mA 288mA 12V 0-500mA 88% 1100μF
SPBW06F-15 5mA 288mA 15V 0-400mA 88% 470μF
INPUT VOLTAGE RANGE F:9~36Vdc, G:18~75Vdc
SURGE VOLTAGE (100ms max.) 24Vin models: 50Vdc, 48Vin models: 100Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
INTERNAL POWER DISSIPATION 500mW
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 6W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.2%
LOAD REGULATION Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.) 580KH
PROTECTION SHORT CIRCUIT Protection type: Continuous, automatic recovery
OVERLOAD Protection type: Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C.~-Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+85 (Refer to "Derating Curve")
CASE TEMPERATURE +100 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~65)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260 max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 50pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±8KV air,±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m
OTHERS MTBF 1850Khrs MIL-HDBK-217F (25)
DIMENSION 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated
PACKING 4.5g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Meanwell SPBW06F Series Features

l  SIP8 package with industry standard pinout

l  4:1 ultrawide input range

l  Operating temperature range -40~+85℃

l  No minimum load required

l  High efficiency up to 89%

l  Protections: Short circuit (Continuous)/Overload

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  3 years warranty

SPBW06F Meanwell power supply 6W DC-DC Regulated Converter SIP package SPBW06F-03 SPBW06F-05 SPBW06F-12 SPBW06F-15 YCICT

Meanwell SPBW06F Series Applications

l  Telecom/Datacom system

l  Wireless network

l  Industrial control facility

l  Instrument

l  Analyzer

l  Detector

l  Data switch

SPBW06F Meanwell power supply 6W DC-DC Regulated Converter SIP8 SPBW06F-03 SPBW06F-05 SPBW06F-12 SPBW06F-15 YCICT

Meanwell SPBW06F Series Mechanical Diagram

SPBW06F Meanwell power supply 6W DC-DC Converter SIP8 SPBW06F-03 SPBW06F-05 SPBW06F-12 SPBW06F-15 DPBW06 YCICT
