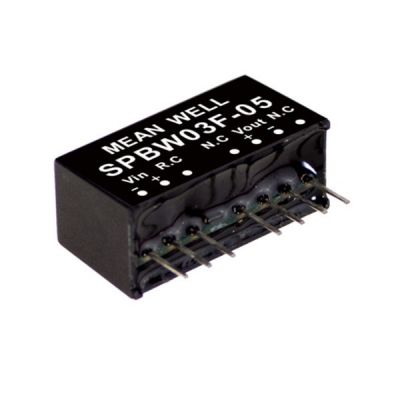

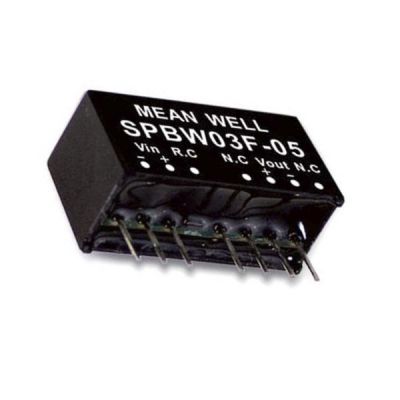

Meanwell SPBW03G Series is 3W isolated and regulated DC-DC converter. The unit outstands module type and SIP8 package. Meanwhile, the main features are as following: international standard pins, high efficiency reaching up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with additional components, continuous-mode short circuit protection, etc. Apart from them, SPBW03G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its good quality, high efficiency and excellent performance, Meanwell SPBW03G Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SPBW03G Series Encoding
| SPBW | Series Name | S: Single Output |
| D: Dual Output | ||
| 3 | Rated Wattage | |
| G | Input voltage (F: 9~36Vdc, G: 18~75Vdc) | |
| 12 | Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc) | |
Meanwell SPBW03G Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SPBW03G-03 | 48V (18~75V) | 3mA | 61mA | 3.3V | 0-700mA | 79% | 180μF |
| SPBW03G-05 | 3mA | 77mA | 5V | 0-600mA | 82% | 100μF | |
| SPBW03G-12 | 6mA | 74mA | 12V | 0-250mA | 85% | 220μF | |
| SPBW03G-15 | 7mA | 75mA | 15V | 0-200mA | 84% | 120μF | |
| INPUT | VOLTAGE RANGE | F: 9~36Vdc, G: 18~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 24Vin models: 50Vdc, 48Vin models: 100Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 3W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | 0.5% | ||||||
| LOAD REGULATION | Single output models: ±0.5%, Dual output models: ±1% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KH | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type: Continuous, automatic recovery | |||||
| OVERLOAD | Protection type : Recovers automatically after fault condition is removed | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 24Vin: 7.5Vdc; 48Vin: 15.5Vdc | ||||||
| Shutdown voltage: 24Vin: 6Vdc; 48Vin: 12Vdc | |||||||
| FUNCTION | REMOTE CONTROL | 24Vin: 6Vdc; 48Vin: 12VdcaPower ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃ max | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 21.8*9.2*11.1mm (0.86*0.36*0.44 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton | ||||||
Meanwell SPBW03G Series Features
l SIP8 package with industry standard pinout
l 1.5KVDC I/O isolation
l Remote ON/OFF control
l 4:1 ultrawide input range
l High efficiency up to 85%
l No minimum load required
l Operating temperature range -40~+85℃
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l Comply to BS EN/EN55032 radiated Class A/B with additional components
l 3 years warranty
Meanwell SPBW03G Series Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Industrial control facility
l Telecom/datacom system
Meanwell SPBW03G Series Mechanical Diagram
