SPBW03G-05
5.73
Details

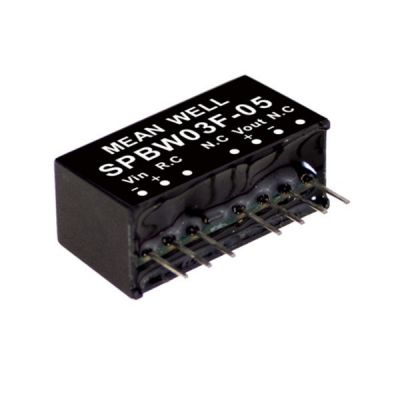

Meanwell SPBW03G-05 is 3W isolated and regulated DC-DC converter with 3mA77mA5V0-600mA. At the same time, the item highlights module type and SIP8 package. The main features are as following: international standard pins, high efficiency up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with additional components, continuous-mode short circuit protection, etc. Furthermore, SPBW03G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Thanks to its good quality, high efficiency and excellent performance, Meanwell SPBW03G-05 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SPBW03G-05 Encoding
| SPBW | Series Name | S: Single Output |
| D: Dual Output | ||
| 3 | Rated Wattage | |
| G | Input voltage (F: 9~36Vdc, G: 18~75Vdc) | |
| 05 | Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc) | |
Meanwell SPBW03G-05 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SPBW03G-03 | 48V (18~75V) | 3mA | 61mA | 3.3V | 0-700mA | 79% | 180μF |
| SPBW03G-05 | 3mA | 77mA | 5V | 0-600mA | 82% | 100μF | |
| SPBW03G-12 | 6mA | 74mA | 12V | 0-250mA | 85% | 220μF | |
| SPBW03G-15 | 7mA | 75mA | 15V | 0-200mA | 84% | 120μF | |
| INPUT | VOLTAGE RANGE | F: 9~36Vdc, G: 18~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 24Vin models: 50Vdc, 48Vin models: 100Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 3W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | 0.5% | ||||||
| LOAD REGULATION | Single output models: ±0.5%, Dual output models: ±1% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KH | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type: Continuous, automatic recovery | |||||
| OVERLOAD | Protection type : Recovers automatically after fault condition is removed | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 24Vin: 7.5Vdc; 48Vin: 15.5Vdc | ||||||
| Shutdown voltage: 24Vin: 6Vdc; 48Vin: 12Vdc | |||||||
| FUNCTION | REMOTE CONTROL | 24Vin: 6Vdc; 48Vin: 12VdcaPower ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃ max | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 21.8*9.2*11.1mm (0.86*0.36*0.44 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton | ||||||
Meanwell SPBW03G-05 Features
l SIP8 package with industry standard pinout
l 1.5KVDC I/O isolation
l Remote ON/OFF control
l 4:1 ultrawide input range
l High efficiency up to 85%
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l Comply to BS EN/EN55032 radiated Class A/B with additional components
l 3 years warranty
l No minimum load required
l Operating temperature range -40~+85℃
Meanwell SPBW03G-05 Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Industrial control facility
l Telecom/datacom system
Meanwell SPBW03G-05 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
