SPBW03F
5.97
Details

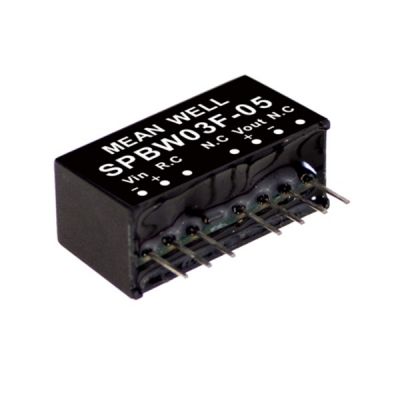

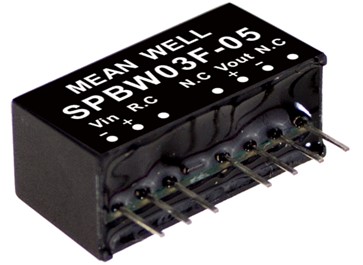

Meanwell SPBW03F Series is 3W isolated and regulated DC-DC converter. The product stands out with module type and SIP8 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A/B with additional components, continuous-mode short circuit protection, etc. In addition, SPBW03F models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its good quality, high efficiency and excellent performance, Meanwell SPBW03F Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SPBW03F Series Encoding
| SPBW | Series Name | S: Single Output |
| D: Dual Output | ||
| 3 | Rated Wattage | |
| F | Input voltage (F: 9~36Vdc, G: 18~75Vdc) | |
| 12 | Output Voltage (3.3/5/12/15Vdc ±5V ±12V ±15Vdc) | |
Meanwell SPBW03F Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SPBW03F-03 | 24V (9~36V) | 5mA | 122mA | 3.3V | 0-700mA | 79% | 180μF |
| SPBW03F-05 | 4mA | 154mA | 5V | 0-600mA | 81% | 100μF | |
| SPBW03F-12 | 11mA | 150mA | 12V | 0-250mA | 84% | 220μF | |
| SPBW03F-15 | 12mA | 150mA | 15V | 0-200mA | 84% | 120μF | |
| INPUT | VOLTAGE RANGE | F: 9~36Vdc, G: 18~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 24Vin models: 50Vdc, 48Vin models: 100Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 24Vin models: 1A Slow-Blow, 48Vin models: 500mA Slow-Blow Type | ||||||
| INTERNAL POWER DISSIPATION | 500mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 3W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | 0.5% | ||||||
| LOAD REGULATION | Single output models: ±0.5%, Dual output models: ±1% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KH | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type: Continuous, automatic recovery | |||||
| OVERLOAD | Protection type : Recovers automatically after fault condition is removed | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 24Vin: 7.5Vdc; 48Vin: 15.5Vdc | ||||||
| Shutdown voltage: 24Vin: 6Vdc; 48Vin: 12Vdc | |||||||
| FUNCTION | REMOTE CONTROL | 24Vin: 6Vdc; 48Vin: 12VdcaPower ON: R.C. ~ -Vin open circuit ; Power OFF: R.C. ~ -Vin <1.2V or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% /℃ (0 ~ 85℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃ max | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±8KV air,±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 3A/m | |||||
| OTHERS | MTBF | Single output models: 2800Khrs ; Dual output models: 2100Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 21.8*9.2*11.1mm (0.86*0.36*0.44 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 4.3g ; 14pcs/per tube, 2058pcs/147 tube/per carton | ||||||
Meanwell SPBW03F Series Features
l SIP8 package with industry standard pinout
l 4:1 ultrawide input range
l Operating temperature range -40~+85"C
l No minimum load required
l Comply to BS EN/EN55032 radiated Class A/B with additional components
l High efficiency up to 85%
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l 1.5KVDC I/O isolation
l Remote ON/OFF control
l 3 years warranty
Meanwell SPBW03F Series Applications
l Telecom/datacom system
l Wireless network
l Industrial control facility
l Instrument
l Analyzer
l Detector
l Data switch
Meanwell SPBW03F Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
