SPB09C-24

$10.89

Meanwell 9W SIP Package DC-DC Regulated Converter with 15mA211mA24V0~375mA

- +
Availability:In stock
SKU Meanwell SPB09C-24
Brand Meanwell
Details

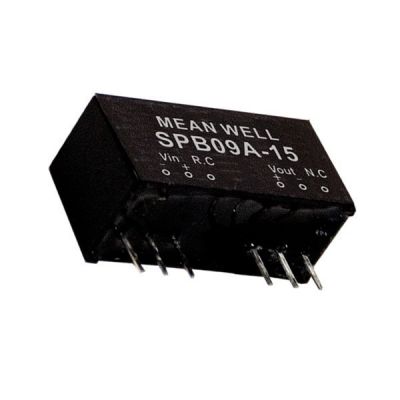

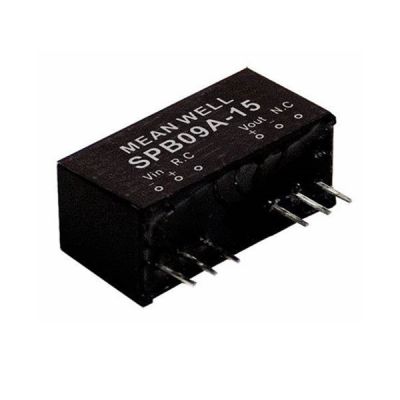

Meanwell SPB09C-24 is 9W isolated and regulated DC-DC converter with 15mA211mA24V0~375mA. The model features module type and SIP8 package. At the same time, the main highlights are as following: international standard pins, high efficiency high up to 89%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. Apart from them, SPB09C models account for different input voltage 9~18V and 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/1 5V/24V for single output and ±5V/±12V/±15V for dual outputs. In response to the increasing demand for miniaturized DC/DC in the system, Meanwell has launched 9W single output SPB09, and dual output DPB09 series after 1~6W SIP single-row PIN wide voltage input DC/DC converter. As a result of its longevity, good quality and high performance. Meanwell SPB09C-24 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

SPB09C-24 Meanwell Power Supply 9W DC-DC Converter SPB09C SPB09C-03 SPB09C-05 SPB09C-12 SPB09C-15 DPB09 YCICT

Meanwell SPB09C-24 Encoding

SPB Series Name S: Single Output
D: Dual Output
09 Rated Wattage
C Input voltage (A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc)
12 Output Voltage (3.3/5/12/15/24Vdc ±5V ±12V ±15Vdc)

Meanwell SPB09C-24 Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SPB09C-03 Normal 48V (36~75V) 5mA 168mA 3.3V 0-2000mA 82% 1000μF
SPB09C-05 5mA 196mA 5V 0-1600mA 85% 1000μF
SPB09C-12 5mA 213mA 12V 0-750mA 88% 220μF
SPB09C-15 5mA 213mA 15V 0-600mA 88% 100μF
SPB09C-24 15mA 211mA 24V 0~375mA 89% 100μF
INPUT VOLTAGE RANGE A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 12Vin models: 2A Slow-Blow, 24Vin models: 1A Slow-Blow Type, 48Vin models: 600mA Slow-Blow Type
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 9W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.5%
LOAD REGULATION Single output models:±0.5% (±1% for 3.3Vout model), Dual output models:±0.5%
SWITCHING FREQUENCY (Typ.) 400KH
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 120~250% rated output power
Protection type : Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.8Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +115 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~70)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 500pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3,±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 275Khrs MIL-HDBK-217F (25)
DIMENSION 24*9.6*11.2mm (0.94*0.38*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 5g; 21pcs/per tube, 2100pcs/100 tube/per carton

Meanwell SPB09C-24 Features

l  SIP8 package with industry standard pinout

l  Operating temperature range -40~+90℃

l  Remote ON/OFF control

l  High efficiency up to 89%

l  2:1 wide input range

l  No minimum load required

l  9V model available (optional)

l  1.5KVDC I/O isolation

l  3 years warranty

l  Protections: Short circuit (Continuous)/Overload/Input under voltage

SPB09C-24 Meanwell Power Supply 9W DC-DC Converter SIP8 SPB09C SPB09C-03 SPB09C-05 SPB09C-12 SPB09C-15 DPB09 YCICT

Meanwell SPB09C-24 Applications

l  Analyzer

l  Detector

l  Data switch

l  Instrument

l  Wireless network

l  Industrial control facility

l  Telecom/Datacom system

SPB09C-24 Meanwell Power Supply 9W DC-DC Regulated Converter SPB09C SPB09C-03 SPB09C-05 SPB09C-12 SPB09C-15 DPB09 YCICT

Meanwell SPB09C-24 Mechanical Diagram

SPB09C-24 Meanwell Power Supply 9W DC-DC Converter SPB09C SPB09C-03 SPB09C-05 SPB09C-12 SPB09C-15 Low cost DPB09 YCICT
