SPB09B
9.26
Details

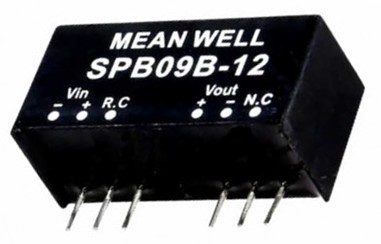

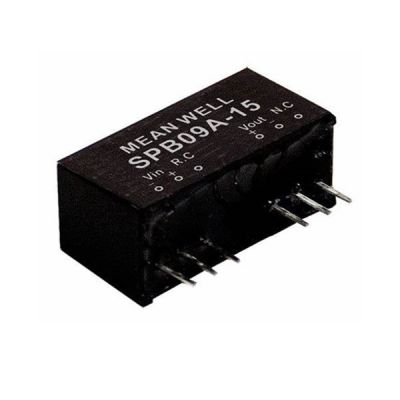

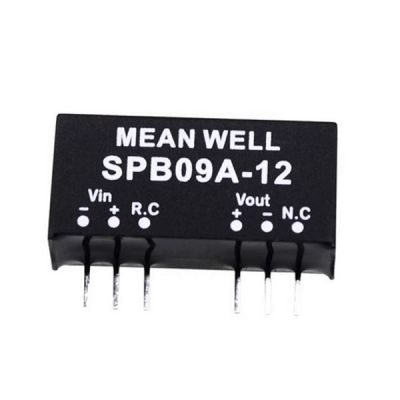

Meanwell SPB09B Series is 9W isolated and regulated DC-DC converter. The unit outstands module type and SIP8 package. Meanwhile, the main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. Apart from them, SPB09B models account for different input voltage 9~18V and 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/1 5V/24V for single output and ±5V/±12V/±15V for dual outputs. In response to the increasing demand for miniaturized DC/DC in the system, Meanwell has launched 9W single output SPB09, and dual output DPB09 series after the 1~6W SIP single-row PIN wide voltage input DC/DC converter. Considering its longevity, good quality and high performance. Meanwell SPB09B Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SPB09B Series Encoding
| SPB | Series Name | S: Single Output |
| D: Dual Output | ||
| 09 | Rated Wattage | |
| B | Input voltage (A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc) | |
| 12 | Output Voltage (3.3/5/12/15/24Vdc ±5V ±12V ±15Vdc) | |
Meanwell SPB09B Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SPB09B-03 | Normal 24V (18~36V) | 6mA | 335mA | 3.3V | 0-2000mA | 82% | 1000μF |
| SPB09B-05 | 8mA | 392mA | 5V | 0-1600mA | 85% | 1000μF | |
| SPB09B-12 | 12mA | 426mA | 12V | 0-750mA | 88% | 220μF | |
| SPB09B-15 | 12mA | 421mA | 15V | 0-600mA | 89% | 100μF | |
| SPB09B-24 | 20mA | 421mA | 24V | 0~375mA | 89% | 100μF | |
| INPUT | VOLTAGE RANGE | A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc | |||||
| FILTER | Internal capacitor | ||||||
| PROTECTION (Typ.) | Fuse recommended. 12Vin models: 2A Slow-Blow, 24Vin models: 1A Slow-Blow Type, 48Vin models: 600mA Slow-Blow Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.5% | |||||
| RATED POWER | 9W | ||||||
| RIPPLE & NOISE | 100mVp-p | ||||||
| LINE REGULATION | 0.5% | ||||||
| LOAD REGULATION | Single output models:±0.5% (±1% for 3.3Vout model), Dual output models:±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 400KH | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 120~250% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.8Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +115℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+125℃, 10~95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0~70℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1~3sec./260℃max. | ||||||
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 500pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air, Level 2±4KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 2, 0.5KV at power | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 275Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 24*9.6*11.2mm (0.94*0.38*0.44 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 5g; 21pcs/per tube, 2100pcs/100 tube/per carton | ||||||
Meanwell SPB09B Series Features
l 3 years warranty
l 2:1 wide input range
l High efficiency up to 89%
l 1.5KVDC I/O isolation
l Remote ON/OFF control
l 9V model available (optional)
l No minimum load required
l Operating temperature range -40~+90℃
l SIP8 package with industry standard pinout
l Protections: Short circuit (Continuous)/Overload/Input under voltage
Meanwell SPB09B Series Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Industrial control facility
l Telecom/Datacom system
Meanwell SPB09B Series Mechanical Diagram
