Meanwell 9W SIP Package DC-DC Regulated Converter

- +
Availability:In stock
SKU Meanwell SPB09A
Brand Meanwell
Details

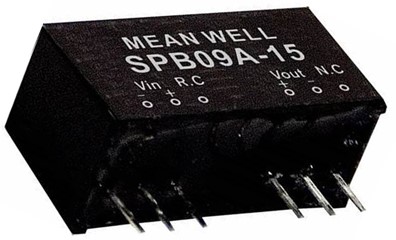

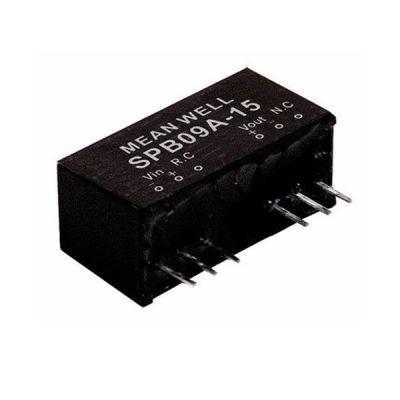

Meanwell SPB09A Series is 9W isolated and regulated DC-DC converter. The product highlights module type and SIP8 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 89%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. In addition, SPB09A models account for different input voltage 9~ 18V and 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/1 5V/24V for single output and ±5V/±12V/±15V for dual outputs. In response to the increasing demand for miniaturized DC/DC in the system, Meanwell has launched 9W single output SPB09, and dual output DPB09 series after the 1~6W SIP single-row PIN wide voltage input DC/DC converter. Considering its longevity, good quality and high performance. Meanwell SPB09A Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.

SPB09A Meanwell Power Supply 9W DC-DC Regulated Converter SPB09A-03 SPB09A-05 SPB09A-12 SPB09A-15 SPB09A-24 YCICT

Meanwell SPB09A Series Encoding

SPB Series Name S: Single Output
D: Dual Output
09 Rated Wattage
A Input voltage (A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc)
12 Output Voltage (3.3/5/12/15/24Vdc ±5V ±12V ±15Vdc)

Meanwell SPB09A Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
SPB09A-03 Normal 12V (9~18V) 12mA 671mA 3.3V 0-2000mA 82% 1000μF
SPB09A-05 12mA 800mA 5V 0-1600mA 83% 1000μF
SPB09A-12 12mA 852mA 12V 0-750mA 88% 220μF
SPB09A-15 12mA 852mA 15V 0-600mA 88% 100μF
SPB09A-24 15mA 852mA 24V 0~375mA 88% 100μF
INPUT VOLTAGE RANGE A: 9~18Vdc, B: 18~36Vdc, C: 36~75Vdc
FILTER Internal capacitor
PROTECTION (Typ.) Fuse recommended. 12Vin models: 2A Slow-Blow, 24Vin models: 1A Slow-Blow Type, 48Vin models: 600mA Slow-Blow Type
OUTPUT VOLTAGE ACCURACY ±1.5%
RATED POWER 9W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 0.5%
LOAD REGULATION Single output models:±0.5% (±1% for 3.3Vout model), Dual output models:±0.5%
SWITCHING FREQUENCY (Typ.) 400KH
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 120~250% rated output power
Protection type : Recovers automatically after fault condition is removed
FUNCTION REMOTE CONTROL Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.8Vdc or short
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40~+90 (Refer to "Derating Curve")
CASE TEMPERATURE +115 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40~+125, 10~95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~70)
SOLDERING TEMPERATURE 1.5mm from case of 1~3sec./260max.
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 500pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) NA
Radiated BS EN/EN55032 (CISPR32) Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3,±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 275Khrs MIL-HDBK-217F (25)
DIMENSION 24*9.6*11.2mm (0.94*0.38*0.44 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 5g; 21pcs/per tube, 2100pcs/100 tube/per carton

Meanwell SPB09A Series Features

l  SIP8 package with industry standard pinout

l  2:1 wide input range

l  Operating temperature range -40~+90℃

l  No minimum load required

l  High efficiency up to 89%

l  Protections: Short circuit (Continuous)/Overload/Input under voltage

l  1.5KVDC I/O isolation

l  Remote ON/OFF control

l  9V model available (optional)

l  3 years warranty

SPB09A Meanwell Power Supply 9W DC-DC Regulated Converter SIP8 SPB09A-03 SPB09A-05 SPB09A-12 SPB09A-15 SPB09A-24 YCICT

Meanwell SPB09A Series Applications

l  Telecom/Datacom system

l  Wireless network

l  Industrial control facility

l  Instrument

l  Analyzer

l  Detector

l  Data switch

SPB09A Meanwell Power Supply 9W DC-DC Regulated Converter SPB09A-03 SPB09A-05 SPB09A-12 SPB09A-15 SPB09A-24 DPB09 YCICT

Meanwell SPB09A Series Mechanical Diagram

SPB09A Meanwell Power Supply 9W DC-DC Converter SIP SPB09A-03 SPB09A-05 SPB09A-12 SPB09A-15 SPB09A-24 DPB09 YCICT
