SMU02N-15
4.78
Details

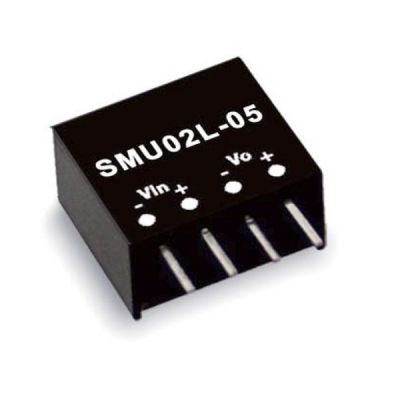

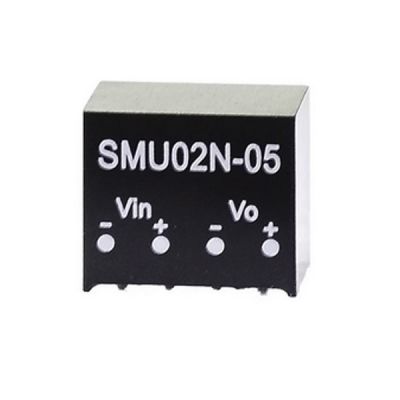

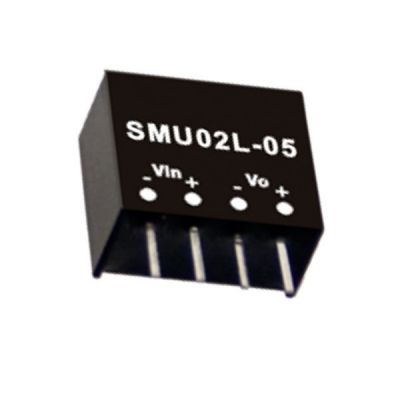

Meanwell SMU02N-15 is 2W DC-DC Single Output Converter with 15V27~133mA2W80mVp-p100KHz21.6-26.4V24V. The item highlights unregulated, module type and SIP package. Meanwhile, the main features are as following: Industry standard pinout, high efficiency reaching up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Built-in EMI filter without external components and Short Sircuit Protection, etc. Apart from them, SMU02 models account for different input voltage 5V, 12V, 15V. As a result of its longevity, low cost and high reliability. Meanwell SMU02N-15 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SMU02N-15 Specifications
| ORDER NO. | SMU02L-15 | SMU02M-15 | SMU02N-15 | |
| OUTPUT | DC OUTPUT VOLTAGE | 15V | ||
| CURRENT RANGE | 27~133mA | |||
| RATED POWER | 2W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 80mVp-p | |
| LINE REGULATION | ±1.2% for 1% input variation | |||
| LOAD REGULATION | ±8.0% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY (Typ.) | 100KHz | |||
| INPUT | VOLTAGE RANGE | 4.5-5.5V | 10.8-13.2V% | 21.6-26.4V |
| EFFICIENCY (Typ.) | 84.00% | 85.00% | 84.00% | |
| NORMAL VOLTAGE | 5V | 12V | 24V | |
| INPUT CURRENT Full load | 500mA | 210mA | 107mA | |
| INPUT CURRENT No load | 50mA | 25mA | 15mA | |
| PROTECTION (FUSE RECOMMENDED) | 500mA | 250mA | 150mA | |
| FILTER | Capacitor type | |||
| PROTECTION | OVERLOAD | Momentary | ||
| Protection type : Broken | ||||
| SHORT CIRCUIT | Momentary | |||
| Protection type : Broken | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| ISOLATION CAPACITANCE | 80pF max. | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 100Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 11.6*7.5*10.14mm or 0.46"*0.30"*0.40" inch | |||
| PACKING | 1.3g ; 42pcs/per tube, 6720pcs/160 tube/per carton | |||
Meanwell SMU02N-15 Features
l SIP package
l Low cost/High reliability
l 100% burn-in test
l 2 years warranty
l Built-in EMI filter without external components
l Cooling by free air convection
l Non-conductive plastic case
l Industry standard pinout
l 1500VDC I/O isolation
Meanwell SMU02N-15 Mechanical Diagram
