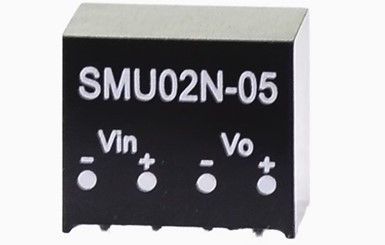

Meanwell SMU02-05 Series is 2W DC-DC Unregulated Single Output Converter. The product stands out with module type and SIP package. At the same time, the main features are as following: Industry standard pinout, high efficiency reaching up to 85%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Built-in EMI filter without external components and Short Sircuit Protection, etc. What’s more, SMU02 models account for different input voltage 5V, 12V, 15V. Considering its longevity, low cost and high reliability. Meanwell SMU02-05 Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SMU02-05 Series Model Specifications
| ORDER NO. | SMU02L-05 | SMU02M-05 | SMU02N-05 | |
| OUTPUT | DC OUTPUT VOLTAGE | 5V | ||
| CURRENT RANGE | 80~400mA | |||
| RATED POWER | 2W | |||
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 50mVp-p | |
| LINE REGULATION | ±1.2% for 1% input variation | |||
| LOAD REGULATION | ±8.0% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY (Typ.) | 100KHz | |||
| INPUT | VOLTAGE RANGE | 4.5-5.5V | 10.8-13.2V | 21.6-26.4V |
| EFFICIENCY (Typ.) | 79.00% | 82.00% | 80.00% | |
| NORMAL VOLTAGE | 5V | 12V | 24V | |
| INPUT CURRENT Full load | 500mA | 210mA | 107mA | |
| INPUT CURRENT No load | 50mA | 25mA | 15mA | |
| PROTECTION (FUSE RECOMMENDED) | 500mA | 250mA | 150mA | |
| FILTER | Capacitor type | |||
| PROTECTION | OVERLOAD | Momentary | ||
| Protection type : Broken | ||||
| SHORT CIRCUIT | Momentary | |||
| Protection type : Broken | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| ISOLATION CAPACITANCE | 80pF max. | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 100Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 11.6*7.5*10.14mm or 0.46"*0.30"*0.40" inch | |||
| PACKING | 1.3g ; 42pcs/per tube, 6720pcs/160 tube/per carton | |||
Meanwell SMU02-05 Series Features
l SIP package
l Industry standard pinout
l 1500VDC I/O isolation
l Built-in EMI filter without external components
l Cooling by free air convection
l Non-conductive plastic case
l 100% burn-in test
l Low cost/High reliability
l 2 years warranty
Meanwell SMU02-05 Series Mechanical Diagram
