SMU01M-15
4.19
Details

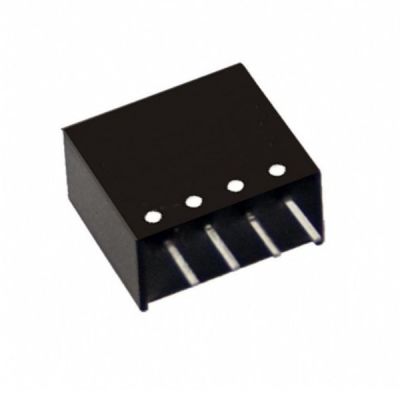

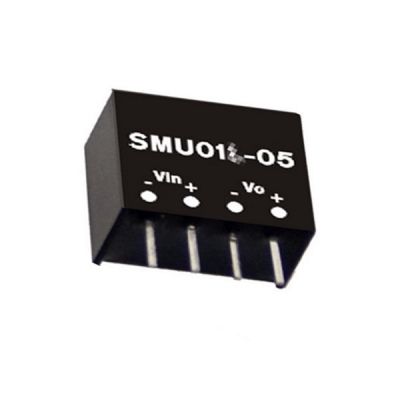

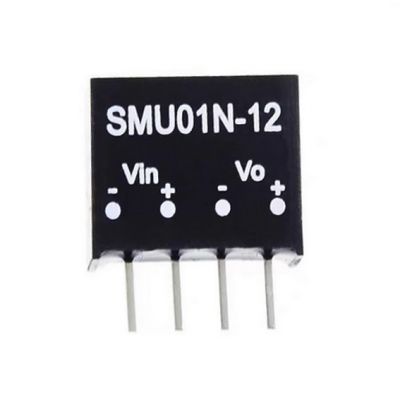

Meanwell SMU01M-15 is 1W DC-DC Unregulated Single Output Converter with 15V1W100mVp-p100KHz10.8-13.2V12V. The unit outstands module type and SIP package. Meanwhile, the main features are as following: Industry standard pinout, high efficiency up to 80%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, Internal SMD technology, Built-in EMI filter and Short Sircuit Protection, etc. What's more, SMU01 models account for different input voltage 5V 9V 12V 15V. Thanks to its longevity, low cost and high reliability. Meanwell SMU01M-15 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SMU01M-15 Specifications
| ORDER NO. | SMU01L-15 | SMU01M-15 | SMU01N-15 | |
| DC OUTPUT VOLTAGE | 15V | |||
| OUTPUT CURRENT RANGE | 0~67mA | |||
| EFFICIENCY (Typ.) | 78.00% | 80.00% | 77.00% | |
| SPECIFICATIONS | ||||
| OUTPUT | RATED POWER | 1W | ||
| RIPPLE&NOISE (max.) | 100mVp-p | |||
| LINE REGULATION | ±1.2% for 1% input variation | |||
| LOAD REGULATION | ±8.0% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY (Typ.) | 100KHz | |||
| INPUT | VOLTAGE RANGE | 4.5-5.5V | 10.8-13.2V% | 21.6-26.4V |
| NORMAL VOLTAGE | 5V | 12V% | 24V | |
| INPUT CURRENT Full load | 265mA | 110mA% | 57mA | |
| INPUT CURRENT No load | 32mA | 15mA% | 11mA | |
| PROTECTION (FUSE RECOMMENDED | 500mA | 250mA | 150mA | |
| FILTER | Capacitor type | |||
| PROTECTION | OVERLOAD | Momentary | ||
| Protection type : Broken | ||||
| SHORT CIRCUIT | Momentary | |||
| Protection type : Broken | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05% /℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| ISOLATION CAPACITANCE | 80pF max. | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 700khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 11.6*6.1*10.14mm or 0.46"*0.24"*0.40" inch for 5V,12V input ; 11.6*7.4*10.14mm or 0.46"*0.29"*0.40" inch for 24V input | |||
| PACKING | SMU01L/M: 1.3g ; 42pcs/per tube, 6720pcs/160 tube/per carton SMU01N : 1.4g ; 42pcs/per tube, 6720pcs/160 tube/per carton |
|||
Meanwell SMU01M-15 Features
l SIP package
l 1500VDC I/O isolation
l Low cost/High reliability
l Industry standard pinout
l Internal SMD technology
l Cooling by free air convection
l 2 years warranty
l Built-in EMI filter
l 100% burn-in test
l Non-conductive plastic case
l 3000VDC I/O isolation (optional)
l Operating temperature range of -40 ~+85℃ without derating
Meanwell SMU01M-15 Mechanical Diagram
