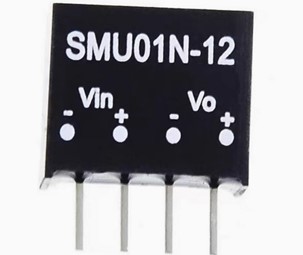

Meanwell SMU01-09 Series is 1W DC-DC Unregulated Single Output Converter. The product stands out with module type and SIP package. At the same time, the main features are as following: Industry standard pinout, high efficiency reaching up to 80%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, Internal SMD technology, Built-in EMI filter and Short Sircuit Protection, etc. In addition, SMU01 models account for different input voltage 5V 9V 12V 15V. Considering its longevity, low cost and high reliability. Meanwell SMU01-09 Series is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SMU01-09 Series Model Specifications
| ORDER NO. | SMU01L-09 | SMU01M-09 | SMU01N-09 | |
| DC OUTPUT VOLTAGE | 9V | |||
| OUTPUT CURRENT RANGE | 0~110mA | |||
| EFFICIENCY (Typ.) | 77.00% | 79.00% | 76.00% | |
| SPECIFICATIONS | ||||
| OUTPUT | RATED POWER | 1W | ||
| RIPPLE&NOISE (max.) | 100mVp-p | |||
| LINE REGULATION | ±1.2% for 1% input variation | |||
| LOAD REGULATION | ±8.0% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY (Typ.) | 100KHz | |||
| INPUT | VOLTAGE RANGE | 4.5-5.5V | 10.8-13.2V% | 21.6-26.4V |
| NORMAL VOLTAGE | 5V | 12V% | 24V | |
| INPUT CURRENT Full load | 265mA | 110mA% | 57mA | |
| INPUT CURRENT No load | 32mA | 15mA% | 11mA | |
| PROTECTION (FUSE RECOMMENDED | 500mA | 250mA | 150mA | |
| FILTER | Capacitor type | |||
| PROTECTION | OVERLOAD | Momentary | ||
| Protection type : Broken | ||||
| SHORT CIRCUIT | Momentary | |||
| Protection type : Broken | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.05% /℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| ISOLATION CAPACITANCE | 80pF max. | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 700khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 11.6*6.1*10.14mm or 0.46"*0.24"*0.40" inch for 5V,12V input ; 11.6*7.4*10.14mm or 0.46"*0.29"*0.40" inch for 24V input | |||
| PACKING | SMU01L/M: 1.3g ; 42pcs/per tube, 6720pcs/160 tube/per carton SMU01N : 1.4g ; 42pcs/per tube, 6720pcs/160 tube/per carton |
|||
Meanwell SMU01-09 Series Features
l 2 years warranty
l SIP package
l 1500VDC I/O isolation
l Internal SMD technology
l Built-in EMI filter
l Cooling by free air convection
l Non-conductive plastic case
l Industry standard pinout
l 100% burn-in test
l Low cost/High reliability
l 3000VDC I/O isolation (optional)
l Operating temperature range of -40 ~+85℃ without derating

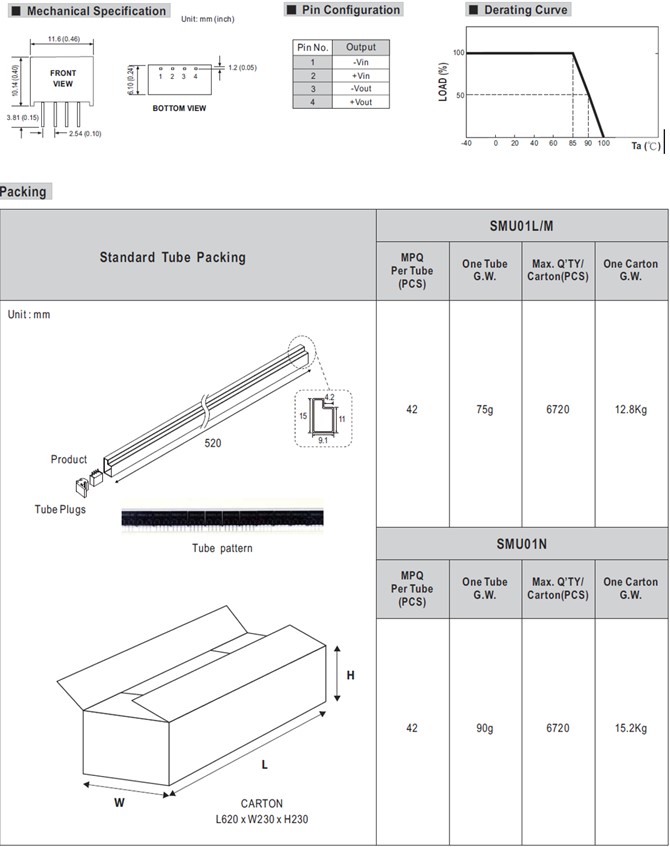

Meanwell SMU01-09 Series Mechanical Diagram
