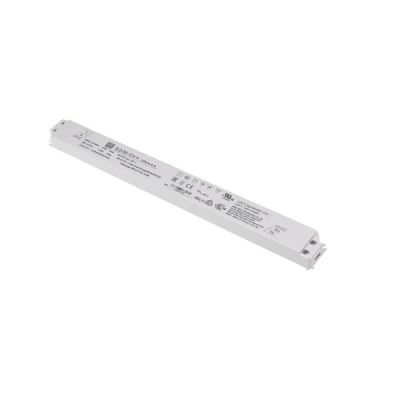

SLD-80-12
23.25
Details
Meanwell SLD-80-12 is 80W AC/DC LED driver with 12V8.4-12V6.6A79.2W150mVp-p±4.0%±0.5%±0.5%. The product features dual modes constant voltage and constant current output. It operates from 110~305VAC with different rated voltage ranging between 12V and 56V. As the efficiency reaches high up to 92%, SLD-80-12 is able to work for -20℃ ~ +90'℃ case temperature under free air convection. Apart from ultra-thin and long strip, the unit can also be selected according to the diversification of lamps. The 12V/24V output model provides a dual-purpose design of constant voltage and constant current, which can be matched with any constant voltage or constant current LED strip and strip light. The 56V output model adopts constant power design, which is suitable for any LED output driving voltage range between 30~56V, and adjust the output current range by itself through the variable resistor reserved at the output, covering 700mA to 2100 mA (full power use range of 1400~2100 mA). In addition, the shell adopts fireproof all-plastic insulated shell <60V safety voltage (SELV), which is highly reliable for the design of the lamp and the safety of the user. Due to its longevity, excellent efficiency and high reliability, Meanwell SLD-80-12 is suitable for signage and linear luminaire applications.
Meanwell SLD-80-12 Encoding
| SLD | Series Name |
| 80 | Rated Wattage |
| 12 | Rated output voltage (12/24/56V) |
Meanwell SLD-80-12 Specifications
| Model | SLD-80-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| CONSTANT CURRENT REGION | 8.4-12V | |
| RATED CURRENT | 6.6A | |
| RATED POWER | 79.2W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±4.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms 115VAC / 230VAC | |
| HOLD UP TIME (Typ.) | 10ms/230VAC 10ms/115VAC | |
| INPUT | VOLTAGE RANGE | 110 ~ 305VAC 155 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
|
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=60%/115VC,230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|
| EFFICIENCY (Typ.) | 90.50% | |
| AC CURRENT | 0.9A / 115VAC 0.45A / 230VAC 0.38A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 277VAC | |
| NO LOAD POWER CONSUMPTION | <0.5W | |
| PROTECTION | OVER CURRENT | 95 - 108% |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 14 - 17V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP | Tcase=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004, GB19510.1,GB19510.14, IS15885(Part2/Sec13) approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN61547 | |
| Others | MTBF | 2666.8K hrs min. Telcordia SR-332 (Bellcore) ; 260.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 320*30*16.8mm (L*W*H) | |
| PACKING | 0.206 Kg; 64pcs / 14.184Kg / 0.75CUFT | |
Meanwell SLD-80-12 Features
l 3 years warranty
l Slim and Linear housing Design
l No load power consumption <0. 5W
l Constant Voltage and Constant Current mode output
l Wide input range 110-305VAC with PFC function
l Compliance with BS EN/E N61347 regulation
l Class 2/Ⅱ power unit ( Except for 12V)
Meanwell SLD-80-12 Applications
l Panel lighting
l Strip lighting
l Troffer lighting
l Cove lighting
l Decoration lighting
l Signage and display
Meanwell SLD-80-12 Mechanical Diagram
