SLC03B-05
8.88
Details

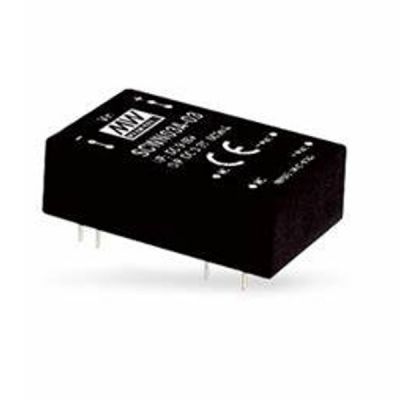

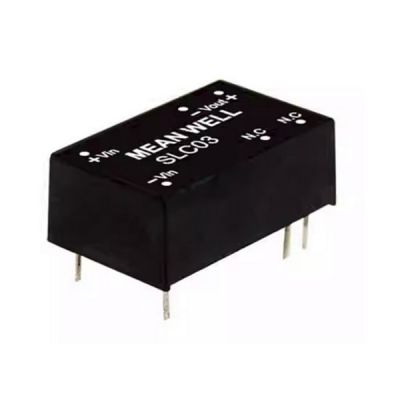

Meanwell SLC03B-05 is 3W isolated DC-DC converter with 10mA154mA5V600mA. The model stands out with regulated, module type and DIP16 package. At the same time, the main features are as following: international standard pins, high efficiency up to 82%, wide working temperature range-40~+85℃, 1.5KVDC I/P-O/P isolation voltage, the compliance to BS EN/EN55032 radiated Class B without extra components, continuous-mode short circuit protection, etc. In addition, the SLC03 and DLC03 models account for different input voltage, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage,5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Due to its long lifeimte, high reliability, and excellent quality, Meanwell SLC03B-05 is suitable for all kinds ofsystems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SLC03B-05 Encoding
| SLC | Series Name | S: Single Output |
| D: Dual Output | ||
| 03 | Rated Wattage | |
| B | Input Voltage (A: 9~18Vdc , B: 18~36Vdc , C: 18~75Vdc) | |
| 05 | Output Voltage (5/12/15Vdc, ±5V/±12V/±15Vdc) | |
Meanwell SLC03B-05 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SLC03B-05 | 24V (18~36V) | 10mA | 154mA | 5V | 600mA | 81% | 1000μF |
| SLC03B-12 | 10mA | 154mA | 12V | 250mA | 82% | 470μF | |
| SLC03B-15 | 20mA | 153mA | 15V | 200mA | 82% | 330μF | |
| INPUT | VOLTAGE RANGE | A: 9~18Vdc , B: 18~36Vdc , C: 18~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 12Vin models: 25Vdc ; 24Vin models: 50V; 48Vin models: 100Vdc | ||||||
| FILTER | Internal capacitor | ||||||
| PROTECTION | Fuse recommended. 12Vin models: 1A Slow-Blow Type, 24Vin models: 0.5A Slow-Blow Type, 48Vin models: 200mA Slow-Blow Type | ||||||
| INTERNAL POWER DISSIPATION | 1000mW | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 3W | ||||||
| RIPPLE & NOISE | 50mVp-p | ||||||
| LINE REGULATION | ±0.2% | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 100KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 150~250% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage | 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc | |||||
| Shutdown voltage | 12Vin: 7Vdc, 24Vin: 14Vdc, 48Vin: 30Vdc | ||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +100℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +105℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0 ~ 80℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 3 ~ 5sec./265℃max. | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 80pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class B | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3,±8KV air | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 0.5KV Line-Line | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 300Khrs min. MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 22.1*13.8*8.55mm (0.87*0.54*0.34 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 4.5g ; 36pcs/per tube, 1800pcs/50 tube/per carton | ||||||
Meanwell SLC03B-05 Features
l Operating temperature range -40~+85℃
l DIP16 package with industry standard pinout
l 3 years warranty
l 2:1 wide input range
l 1.5KVDC I/O isolation
l High efficiency up to 82%
l No minimum load required
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l Comply to BS EN/EN55032 radiated Class B without additional components
Meanwell SLC03B-05 Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Telecom/datacom system
l Industrial control facility
Meanwell SLC03B-05 Mechanical Diagram
