SKMW15G-05
17.94
Details

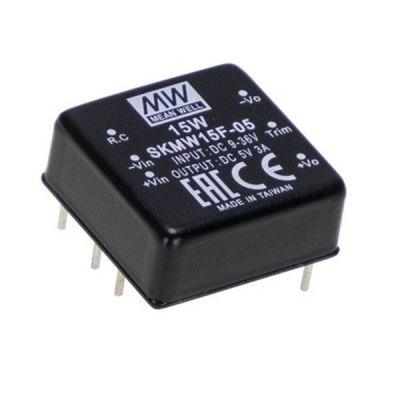

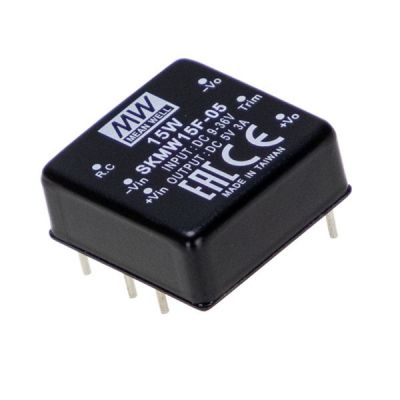

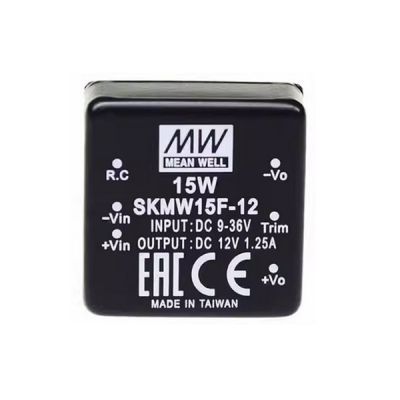

Meanwell SKMW15G-05 is 15W isolated and regulated DC-DC Converter with 48V80mA365mA5V0~3000mA. The model highlights module type and DIP 1"x1"package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 89%, wide working temperaturerange -40~+85℃, 3KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without extra components, continuous-mode short circuit, overload, input under voltage protection, etc. In addition, the models account for different input voltage 9~36V and 18~75V 4:1 ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Due to its longevity, high reliability, and excellent performane, Meanwell SKMW15G-05 is suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell SKMW15G-05 Encoding
| SKMW | Series Name S: Single Output D: Dual Output |
| 15 | Rated Wattage |
| G | Input Voltage ( F: 9-36Vdc, G: 18-75Vdc) |
| 05 | Output Voltage ( 3.3/5/12/15Vdc, ±5/±12/±15Vdc) |
Meanwell SKMW15G-05 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| SKMW15G-03 | Normal 48V (18~75V) | 70mA | 255mA | 3.3V | 0~3000mA | 85.0% | 820μF |
| SKMW15G-05 | 80mA | 365mA | 5V | 0~3000mA | 86.0% | 820μF | |
| SKMW15G-12 | 30mA | 355mA | 12V | 0~1250mA | 89.0% | 220μF | |
| SKMW15G-15 | 30mA | 360mA | 15V | 0~1000mA | 88.0% | 120μF | |
| INPUT | VOLTAGE RANGE | F: 9~36Vdc , G: 18~75Vdc | |||||
| FILTER | Pi type | ||||||
| PROTECTION (Typ.) | Fuse recommended. 24Vin models: 4.0A delay time Type, 48Vin models: 2.0A delay time Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±2.0% | |||||
| RATED POWER | 10W for 3.3V output ; 15W for other output | ||||||
| RIPPLE & NOISE | 50mVp-p (max.) | ||||||
| LINE REGULATION | ±0.5% | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY | 300KHz | ||||||
| EXTERNAL TRIM ADJ. RANGE (Typ.) | Single output only; ±10% for 3.3V/5V, -20%~+10% for 12V/15V | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 110 ~ 220% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | Protection type : Clamp by diode for single output ; Hiccup mode for dual output | ||||||
| UNDER VOLTAGE LOCKOUT | Start-up voltage: 5Vin: 24Vin (F-type): 9.0Vdc, 48Vin (G-type): 17.3Vdc | ||||||
| Shutdown voltage: 24Vin (F-type): 8.6Vdc, 48Vin (G-type): 16.5Vdc | |||||||
| FUNCTION | REMOTE CONTROL | Power ON: R.C. ~ -Vin >2.5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <0.5Vdc or short | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +110℃ max | ||||||
| WORKING HUMIDITY | 5% ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03% / ℃ (0 ~ 71℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 3 ~ 5sec./265℃ (max) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 1200pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032 (CISPR32) | NA | |||||
| Radiated | BS EN/EN55032 (CISPR32) | Class A without external components Class B with external components |
|||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | contact ±4KV | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | ±0.5KV | |||||
| Surge | BS EN/EN61000-4-5 | Line-Line ±0.5KV | |||||
| Conducted | BS EN/EN61000-4-6 | 3Vrms | |||||
| OTHERS | MTBF | 220Khrs MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 25.4*25.4*10.2mm (1*1*0.4 inch) | ||||||
| CASE MATERIAL | Black coated metal with non-conductive base | ||||||
| PACKING | 20g; 10pcs/per tube, 600pcs/60 tube/per carton | ||||||
Meanwell SKMW15G-05 Features
l 3KVDC I/O isolation
l High efficiency up to 89%
l DIP 1"x1" package with industry standard pinout
l Operating temperature range -40 ~ +85℃
l 4:1 ultrawide input range
l Comply to BS EN/EN55032 radiated Class A without additional components
l Protections: Short circuit (Continuous)/Overload/Over voltage/Input under voltage
l 3 years warranty
Meanwell SKMW15G-05 Applications
l Instrument
l Analyzer
l Detector
l Data switch
l Wireless network
l Telecom/Datacom system
l Industrial control facility
Meanwell SKMW15G-05 Mechanical Diagram
