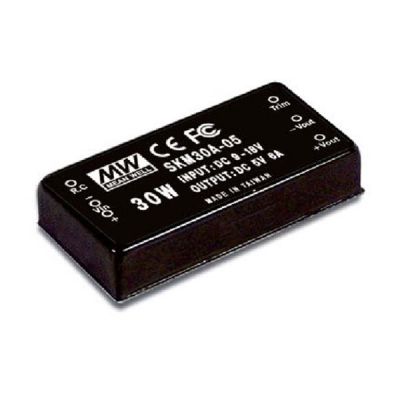

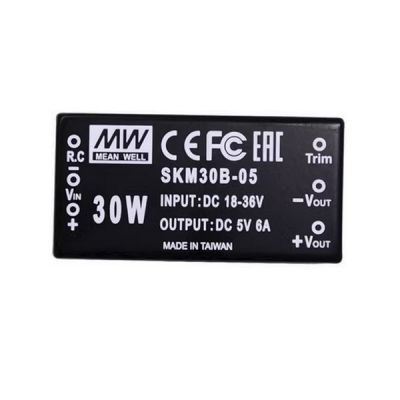

SKM30B-05
20.57
Details
Meanwell SKM30B-05 Specifications
| ORDER NO. | SKM30A-05 | SKM30B-05 | SKM30C-05 | |
| OUTPUT | DC VOLTAGE | 5V | ||
| CURRENT RANGE | 0.6~6A | |||
| RATED POWER | 30W | |||
| RIPPLE & NOISE (max.) | 90mVp-p | |||
| LINE REGULATION | ±0.2% | |||
| LOAD REGULATION | ±0.5% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY | 300KHz min. | |||
| EXTERNAL CAPACITANCE LOAD (max.) | 1000uF | |||
| EXTERNAL TRIM Adj. RANGE(Typ.) | ±10% | |||
| INPUT | VOLTAGE RANGE | A: 9~18VDC B: 18~36VDC C: 36~75VDC | ||
| UNDER VOLTAGE SHUTDOWN | A: 8VDC B: 16VDC C: 32VDC | |||
| EFFICIENCY (Typ.) | 88.00% | 88.50% | 88.00% | |
| DC CURRENT Full load | 2840mA | 1420mA | 720mA | |
| DC CURRENT No load | 1700mA | 95mA | 60mA | |
| FILTER | Pi network | |||
| REMOTE CONTROL | Power ON : R.C~-Vin>2.5VDC or open circuit ; Power OFF: R.C~-Vin<0.5VDC or short | |||
| PROTECTION | Fuse recommended | |||
| PROTECTION | OVER CURRENT | 110%~180% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | All output equipped with short circuit | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE Input (Typ.) | A:>20~25VDC B:>40~50VDC C:>80~100VDC input voltage Protection type : Shut down o/p voltage, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE Output (Typ.) | 5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode | |||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +75℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03% /℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class A, FCC part 15 Class A without external components, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 700Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 50.8*25.4*11.2 mm or 2"*1"*0.44" inch (L*W*H) | |||
| PACKING | 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton | |||
Meanwell SKM30B-05 Features
l 2 years warranty
l 2"x1" compact size
l 2:1 wide input range
l High efficiency up to 90%
l 1500VDC l/O isolation
l Built-in remote ON/OFF control
l Built-in trimming output
l Cooling by free air convection
l Six-sided shield metal case
l 100% burn-in test
l Low cost/High reliability
l Approvals: FCC/EAC/CE/UKCA.
l Comply with CE/FCC without external components
l Protections: Short circuit/Overload/Input and Output Over voltage
Meanwell SKM30B-05 Mechanical Diagram
