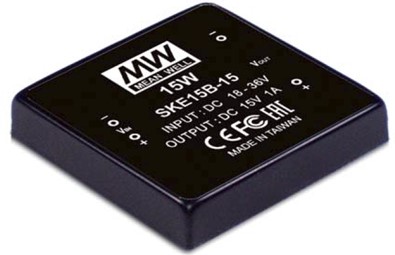

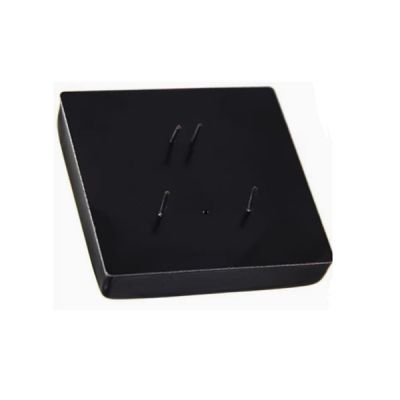

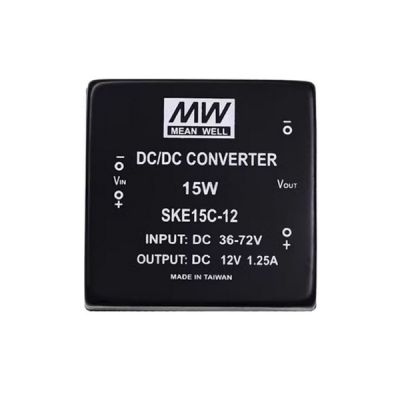

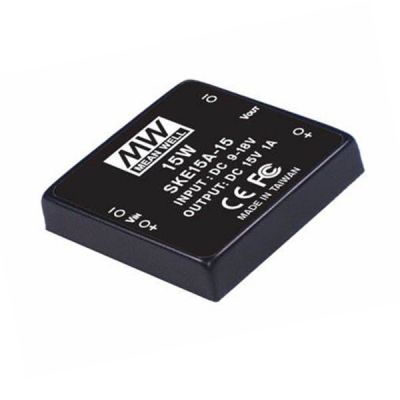

SKE15-05 Meanwell Power Supply 15W DC-DC Converter YCICT

- +
Availability:In stock
SKU Meanwell SKE15-05
Brand Meanwell
Details

SKE15-05 Meanwell Power Supply 15W DC-DC DIP Regulated Single Output Converter SKE15A-05 SKE15B-05 SKE15C-05 SKE15 YCICT

Meanwell SKE15-05 Series Model Specifications

ORDER NO. SKE15A-05 SKE15B-05 SKE15C-05
OUTPUT DC VOLTAGE 5V
CURRENT RANGE 300~3000mA
RATED POWER 15W
RIPPLE & NOISE (max.) 50mVp-p
LINE REGULATION ±0.3%
LOAD REGULATION ±0.5%
VOLTAGE ACCURACY ±2.0%
SWITCHING FREQUENCY 150KHz min.
INPUT VOLTAGE RANGE A: 9~18VDC B: 18~36VDC C: 36~72VDC
EFFICIENCY (Typ.) 79.00% 79.00% 80.00%
DC CURRENT Full load A: 1700mA B: 800mA C: 400mA
DC CURRENT No load A: 40mA B: 20mA C: 10mA
FILTER Pi network
PROTECTION Fuse recommended
PROTECTION OVER CURRENT 160%~250% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Protection type: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TEMP. -25~+71 (Refer to "Derating Curve")
WORKING HUMIDITY 20%~90% RH non-condensing
STORAGE TEMP., HUMIDITY -25~+105, 10~95% RH
TEMP. COEFFICIENT ±0.03%/ (0~50)
VIBRATION 10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY SAFETY STANDARDS EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:1.5KVDC
ISOLATION RESISTANCE I/P-O/P: 100M Ohms/500VDC/25/70% RH
EMC EMISSION Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS MTBF 300Khrs min. MIL-HDBK-217F (25)
DIMENSION 50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)
PACKING 60g; 5pcs/per tube, 200pcs/40 tube/per carton

Meanwell SKE15-05 Series Features

l  2:1 wide input range

l  4:1 wide input range (option)

l  1500VDC I/O isolation

l  3000VDC I/O isolation (option)

l  Built-in EMI filter

l  Protections: Short circuit/Overload

l  Cooling by free air convection

l  Six-sided shield metal case

l  100% burn-in test

l  Low cost/High reliability

l  Approvals: FCC/EAC/CE/UKCA

l  2 years warranty

SKE15-05 Meanwell Power Supply 15W DC-DC Regulated Single Output Converter SKE15A-05 SKE15B-05 SKE15C-05 SKE15 YCICT

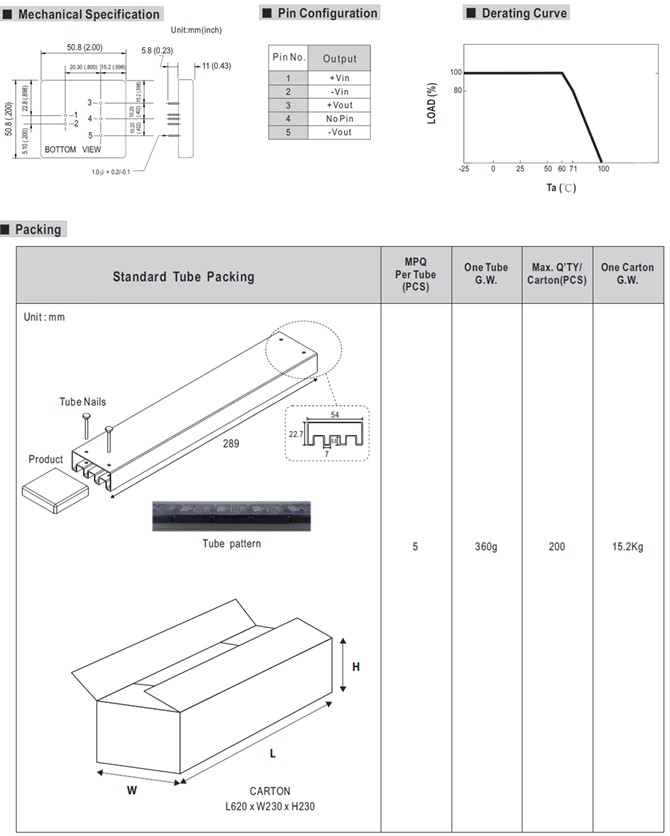

Meanwell SKE15-05 Series Mechanical Diagram

SKE15-05 Meanwell Power Supply 15W DC-DC Regulated Single Output Converter SKE15A-05 SKE15B-05 SKE15C-05 YCICT
